2007.0 Range Rover Sport (LS), 418-00

Module Communications Network

Central Junction Box (G301054)

REMOVAL AND INSTALLATION
  • 86.70.56
  • Bracket - fuse box - renew
  • All Derivatives
  • 0.80
  • USED WITHINS
Removal
  1. If the central junction box (CJB) is to be replaced, connect T4 to the vehicle.
  2. Remove the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
  3. E47530
    Remove the passenger side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.

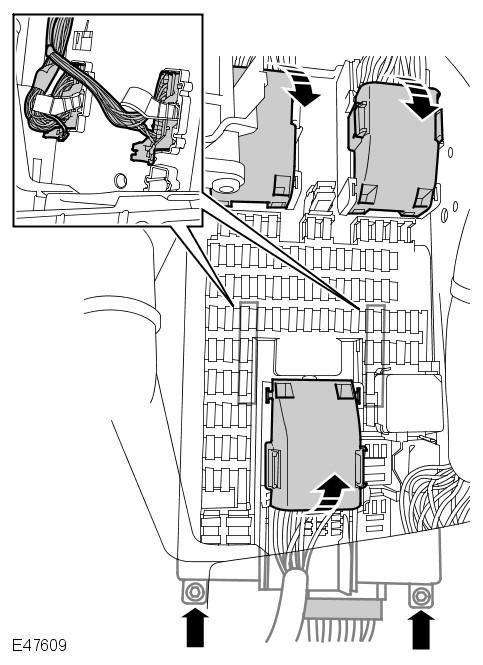

  4. E47609
    Remove the CJB.
      • Remove the 2 nuts.
      • Disconnect the 6 electrical connectors.
Installation
  1. Install the CJB.
      • Connect the electrical connectors.
      • Tighten the nuts to 10 Nm (7 lb.ft).
  2. Install the closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
  3. Install the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
  4. Initiate using Land Rover approved diagnostic equipment.
