Published: 11-May-2011

2007.0 Range Rover Sport (LS), 415-07

Video System

Digital Versatile Disc Player (G300911)

REMOVAL AND INSTALLATION
Removal
  1. Remove the RH lower rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

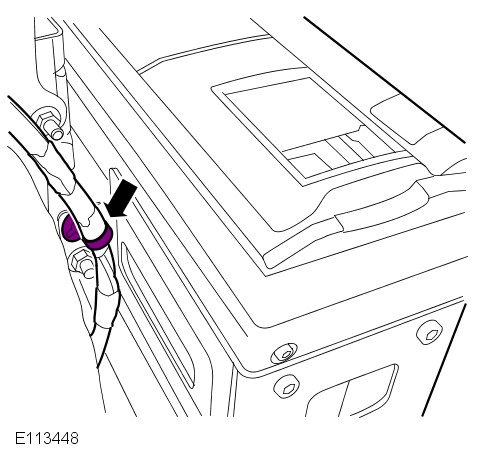

  2. E113448
    Release the DVD player harness.
      • Release the clip.

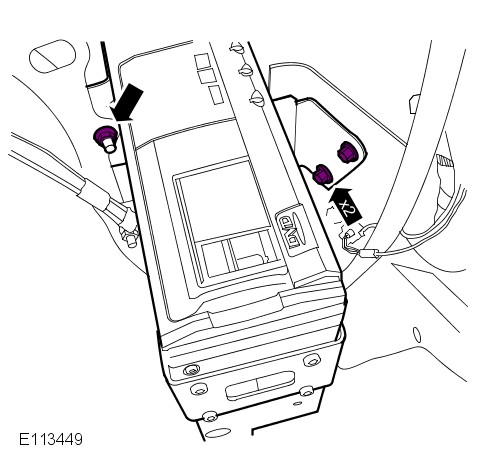

  3. E113449
    Release the DVD player from the body.
      • Remove the 2 bolts.
      • Remove the nut.

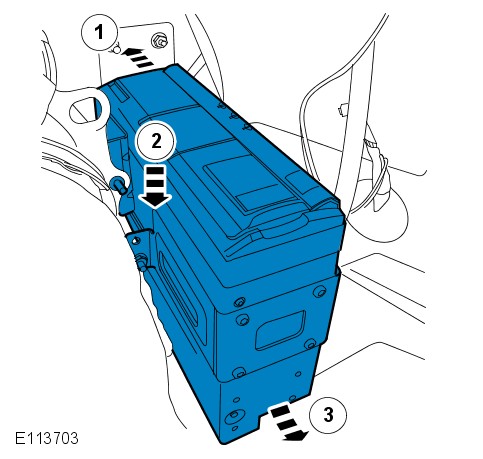

  4. E113703
    Detach the DVD player from the body.
  5. CAUTIONS:

    • Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

    • Make sure that the optical connectors are clean and free of foreign material.

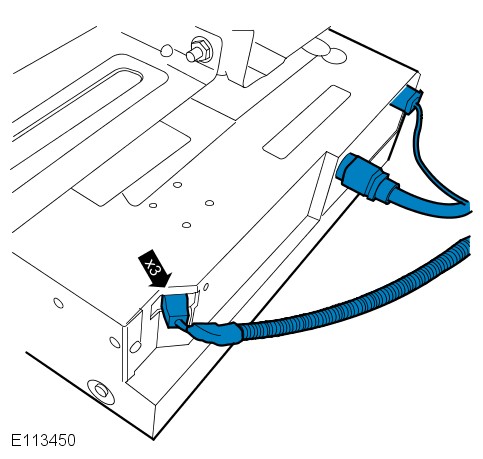

    E113450
    Remove the DVD player.
      • Disconnect the 3 electrical connectors.

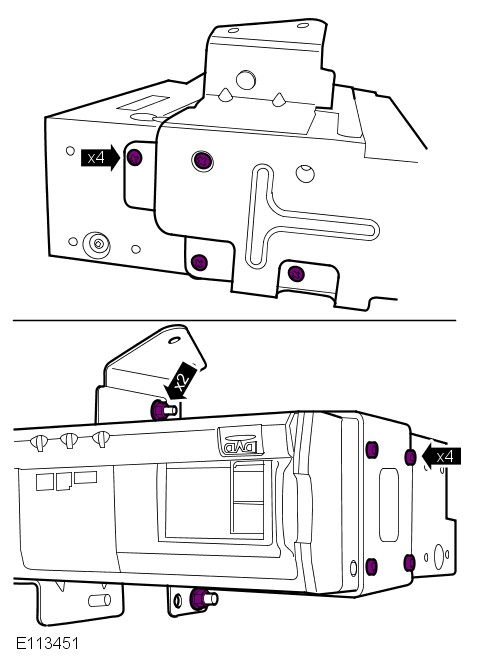

  6. E113451
    Remove the DVD player mounting bracket.
      • Remove the 8 screws.
      • Loosen the 2 nuts.
Installation
  1. To install, reverse the removal procedure.
