Published: 11-May-2011

2007.0 Range Rover Sport (LS), 412-02A

Heating and Ventilation

Blower Motor (G300507)

REMOVAL AND INSTALLATION
  • 80.20.15
  • Heater Fan Motor - Renew
  • All Derivatives
  • 0.50
  • USED WITHINS
Removal
  1. Remove the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
  2. E47530
    Remove the passenger side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.
  3. E47531
    Position the footwell duct aside for access.
      • Release the clip.

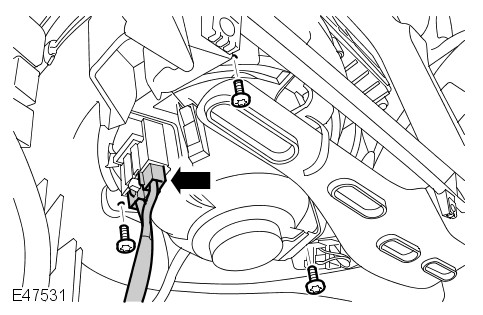

  4. Remove the blower motor.
      • Disconnect the electrical connector.
      • Remove the 3 screws.
Installation
  1. CAUTION:

    Fixings must be started by hand to avoid damaging threads.

    Install the blower motor.
      • Tighten the screws.
      • Connect the electrical connector.
  2. Secure the footwell duct.
      • Install the clip.
  3. Install the closing trim panel.
      • Connect the electrical connector.
      • Secure the clip.
      • Tighten the screws.
  4. Install the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
