Published: 08-Nov-2013

2007.0 Range Rover Sport (LS), 308-07A

Four-Wheel Drive Systems

Four-Wheel Drive Control Module (G300195)

REMOVAL AND INSTALLATION
  • 41.30.01
  • Electronic control unit - ratio control - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the battery. For additional information, refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

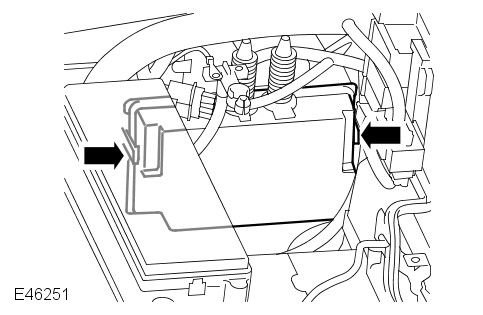

  3. E46251
    Remove the four wheel drive control module cover.
      • Depress the 2 clips.
      • Release the cover.

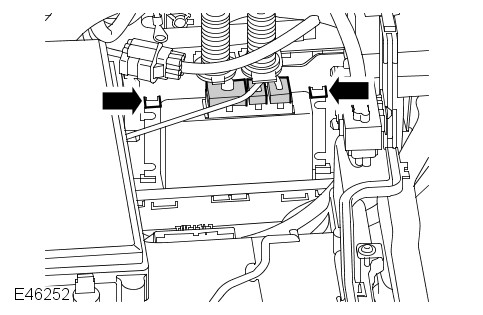

  4. E46252
    Release and remove the four wheel drive control module.
      • Depress the 2 clips.
      • Disconnect the 3 electrical connectors.
Installation
  1. To install, reverse the removal procedure.
    1. Connect the Land Rover approved diagnostic equipment.
    2. Clear any Diagnostic Trouble Codes (DTCs).
    3. Start the diagnostic service function transfer case-transfer case replacement.
    4. Clear any DTCs after calibration and check for correct operation.
