Published: 11-May-2011

2007.0 Range Rover Sport (LS), 414-01

Battery, Mounting and Cables

Battery (G300821)

REMOVAL AND INSTALLATION
  • 86.15.01
  • Startup Battery - Renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Secure the hood in the service position.
      • Release the support struts.

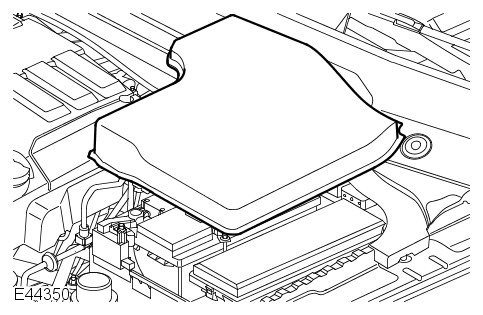

  2. E44350
    Remove the battery cover.
  3. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  4. Disconnect the battery positive cable.

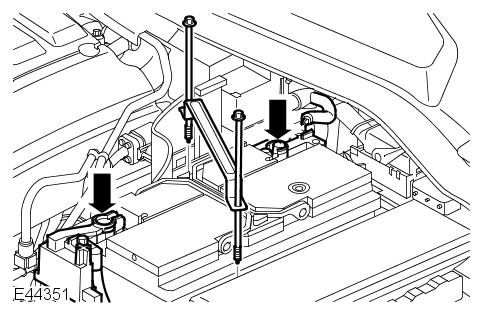

  5. E44351
    Remove 2 bolts securing the battery clamp and remove the clamp.
  6. Remove the battery.
Installation
  1. NOTE:

    Apply petroleum jelly to the battery terminals.

    To install, reverse the removal procedure.
      • Tighten the battery clamp bolts to 5 Nm (4 lb.ft).
      • Tighten the battery terminals to 5 Nm (4 lb.ft).
