2007.0 Range Rover Sport (LS), 205-04

Front Drive Halfshafts

Inner Constant Velocity Joint Boot (G2250259)

REMOVAL AND INSTALLATION
  • 47.10.16
  • Inner Constant Velocity Joint Boot - Renew
  • All Derivatives
  • 1.50
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 3Inner and outer constant velocity joint boot kit1
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the wheel and tire.
  3. Remove the halfshaft.
    Refer to: Front Left Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).
  4. Clamp the halfshaft in a vise.

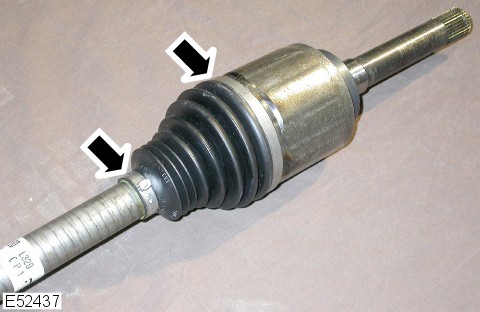

  5. E52437
    Remove and discard the CV joint boot retaining clamps.

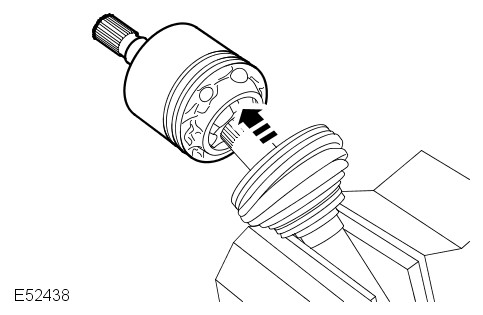

  6. E52438
    Slide the CV joint boot along the halfshaft to gain access to the joint.

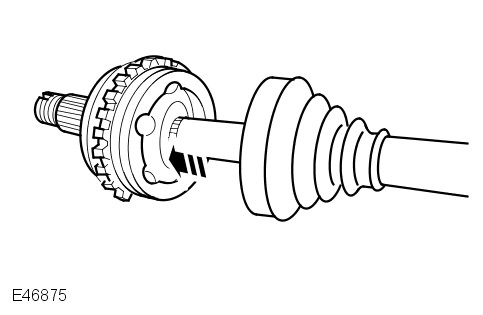

  7. E46875
    Remove and discard the snap ring. Using a drift against the inner part of the CV joint, remove the CV joint from the halfshaft.
  8. Remove the inner joint boot.
Installation
  1. Clean the components.
  2. Install the inner joint boot.
    • Install the inner joint. Install a new snap ring.
    • Position the CV joint on the halfshaft, press the snap ring into it's groove and push the CV joint fully on to the halfshaft.
  4. Pack the joint with the grease supplied.
  5. Install the CV joint boot to the CV joint. Secure with the new clamps.
  6. Install the halfshaft.
    Refer to: Front Left Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).
  7. Install the wheel and tire. Tighten the wheel nuts.
    Torque: 140Nm
