Published: 13-Mar-2018

2007.0 Range Rover Sport (LS), 205-04

Front Drive Halfshafts

Outer Constant Velocity Joint (G2250258)

REMOVAL AND INSTALLATION
  • 47.10.04
  • Bell & joint - outer - LH/one side - renew
  • All Derivatives
  • 1.50
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 5Inner and outer constant velocity joint boot kit1
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the wheel and tire.
  3. Remove the halfshaft.
    Refer to: Front Left Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).
  4. Clamp the halfshaft in a vise.
  5. E46874
    Remove and discard the CV joint boot retaining clamps.
  6. Slide the CV joint boot along the halfshaft to gain access to the joint.
  7. E46875
    Remove and discard the snap ring. Using a drift against the inner part of the CV joint, remove the CV joint from the halfshaft.
  8. Remove the outer CV joint boot.
Installation
  1. Clean the components.
  2. E202581
    Install the CV joint boot.
    • Install the outer CV joint. Install the snap ring.
    • Position the CV joint on the halfshaft, press the snap ring into it's groove and push the CV joint fully on to the halfshaft.
    • Pull on the CV joint to ensure the snap ring has fully engaged.
  4. Pack the CV joint with the grease supplied.
  5. CAUTIONS:

    • Make sure the CV boot is not pushed too far onto the drive shaft and the recess is exposed, failure to follow this instruction may result in damage to the component.

    • After the clamps have been secured do not adjust them, failure to follow this instruction may result in damage to the component.

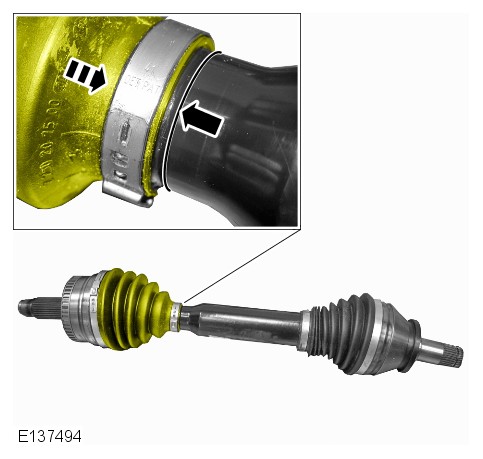

    E137494
    Install the CV joint boot to the CV joint. Using a suitable tool, secure the CV joint boot with the new clamps.
    Renew Part: Inner and outer constant velocity joint boot kit Quantity: 1.
  6. Install the halfshaft.
    Refer to: Front Left Halfshaft (205-04 Front Drive Halfshafts, Removal and Installation).
  7. Install the wheel and tire. Tighten the wheel nuts.
    Torque: 140Nm
