Published: 13-Mar-2018

2007.0 Range Rover Sport (LS), 501-20A

Seatbelt System

Second Row Safety Belt Retractor (G2249774)

REMOVAL AND INSTALLATION

Part(s)

StepPart nameQuantity
Installation Step 1Seatbelt retractor bolt1
Installation Step 2Seatbelt retractor bolt1
Removal
NOTE:

Left-hand shown, right-hand similar.


  1. Remove the D-pillar upper trim panel.
    Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. Remove and discard the Torx bolt. Release the safety belt upper anchor.

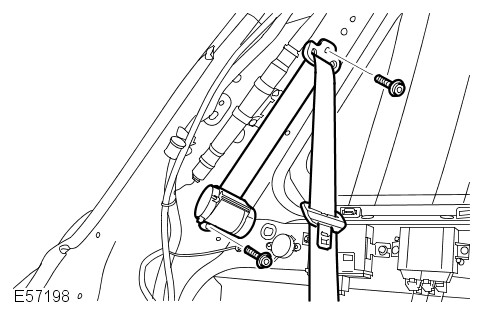

  3. E57198
    Remove and discard the Torx bolt. Remove the second row safety belt retractor.
Installation
  1. Install the second row safety belt retractor. Tighten the Torx bolt.
    Renew Part: Seatbelt retractor bolt Quantity: 1.
    Torque: 40Nm
  2. Install the safety belt upper anchor. Tighten the Torx bolt.
    Renew Part: Seatbelt retractor bolt Quantity: 1.
    Torque: 40Nm
  3. Install the D-pillar upper trim panel.
    Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
