Published: 27-Mar-2018

2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

D-Pillar Trim Panel (G2249730)

REMOVAL AND INSTALLATION
  • 76.13.73
  • D-Pillar Trim finisher - renew
  • All Derivatives
  • 0.60
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 3Safety belt retractor1
Installation Step 4Seat frame to body bolt(s)7
Removal
  1. Remove the lower quarter trim panel.
    Refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. NOTE:

    Left-hand shown, right-hand similar.

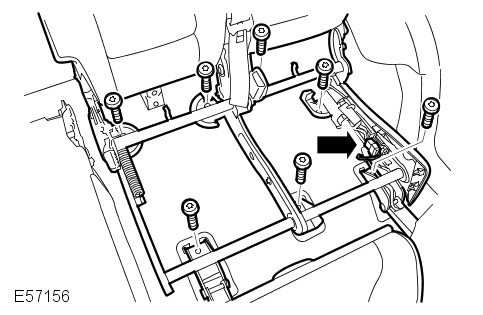

    E57156
    Remove and discard the 7 Torx bolts. Disconnect the electrical connector. With assistance, remove the rear seat assembly.

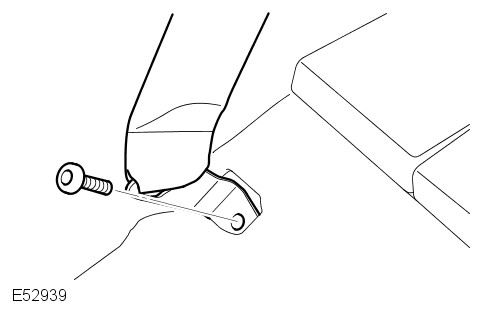

  3. E52939
    Remove and discard the Torx bolt. Remove the safety belt lower anchor.

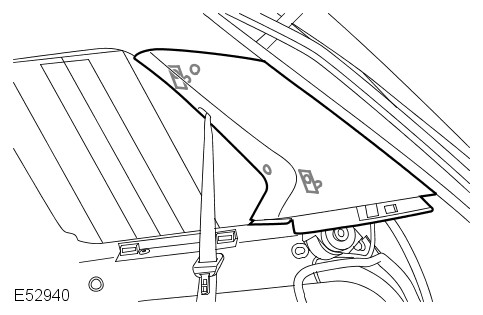

  4. E52940
    Release the 4 clips. Release the safety belt from the trim panel. Remove the D-pillar trim panel.
  5. NOTE:

    Do not disassemble further if the component is removed for access only.

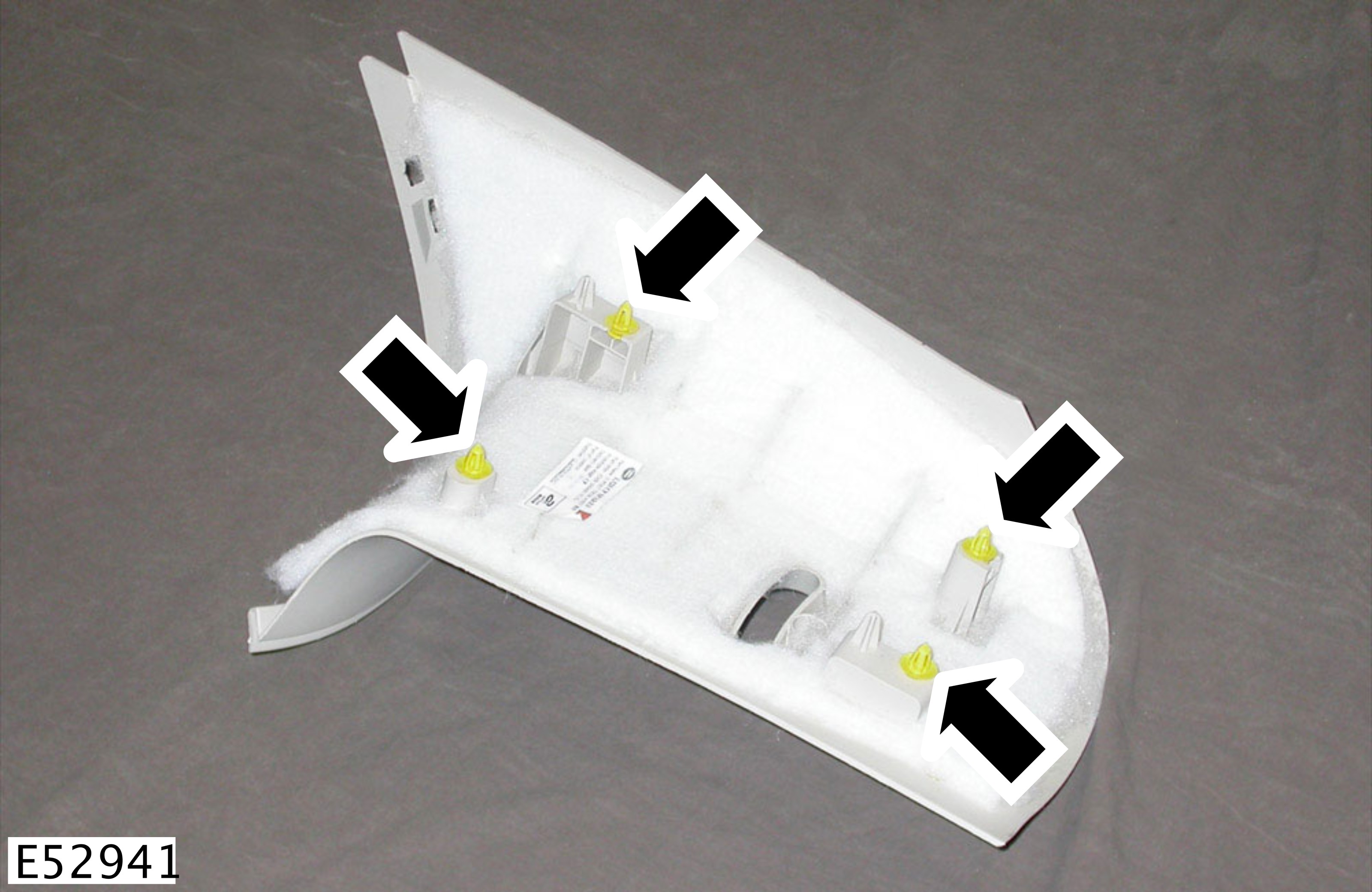

    E52941
    Remove the 4 clips from the D-pillar upper trim panel.
Installation
  1. Install the clips to the D-pillar upper trim panel.
  2. Position the safety belt through the trim panel. Install the D-pillar upper trim panel. Secure the clips.
  3. Install the safety belt lower anchor. Tighten the Torx bolt.
    Renew Part: Safety belt retractor Quantity: 1.
    Torque: 45Nm
  4. With assistance, install the rear seat assembly. Position the locating pegs. Connect and secure the electrical connector. Tighten the Torx bolts.
    Renew Part: Seat frame to body bolt(s) Quantity: 7.
    Torque: 40Nm
  5. Install the lower quarter trim panel
    Refer to: Rear Quarter Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
