2007.0 Range Rover Sport (LS), 501-16

Wipers and Washers

Windshield Washer Pump (G2249760)

REMOVAL AND INSTALLATION
  • 84.10.21
  • Washer Pump - Renew
  • All Derivatives
  • 0.40
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 1Windshield washer pump seal1
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the LH fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  3. Release the windshield washer pump hoses. Drain the washer reservoir fluid.
  4. Disconnect the windshield washer pump electrical connector.

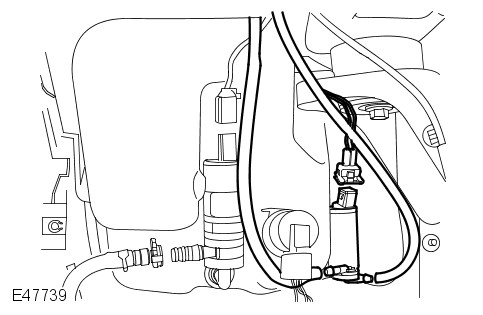

  5. E47739
    Remove the windshield washer pump. Discard the O-ring seal.
Installation
  1. Install the windshield washer pump. Install a new O-ring seal.
    Renew Part: Windshield washer pump seal Quantity: 1.
  2. Connect the windshield washer pump electrical connector.
  3. Connect the windshield washer pump hoses.
  4. Install the fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  5. Lower the vehicle.
  6. Top-up the windshield washer reservoir.
