2007.0 Range Rover Sport (LS), 501-16

Wipers and Washers

Headlamp Washer Pump (G2249752)

REMOVAL AND INSTALLATION
  • 84.20.21
  • Headlamp Washer Pump - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 1Headlamp washer pump seal1
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the LH fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  3. Release the headlamp washer pump hose. Drain the washer reservoir fluid.
  4. Disconnect the headlamp washer pump electrical connector.

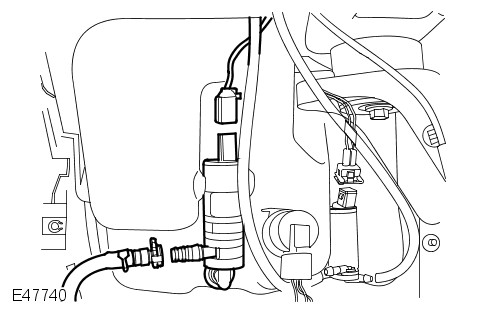

  5. E47740
    Remove the headlamp washer pump. Discard the O-ring seal.
Installation
  1. Install a new O-ring seal. Install the headlamp washer pump.
    Renew Part: Headlamp washer pump seal Quantity: 1.
  2. Connect the headlamp washer pump electrical connector.
  3. Connect the headlamp washer pump hose.
  4. Install the fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  5. Lower the vehicle.
  6. Top-up the windshield washer reservoir.
