2007.0 Range Rover Sport (LS), 501-10

Seating

Front Row Seat (G2249745)

REMOVAL AND INSTALLATION
  • 78.10.44.99
  • Front seat - remove for access & refit
  • All Derivatives
  • 0.40
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 2Seatbelt buckle bolt(s)1
Removal
  1. Make the SRS system safe.
    Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  2. NOTE:

    The Torx bolts can be re-used.

    E59910

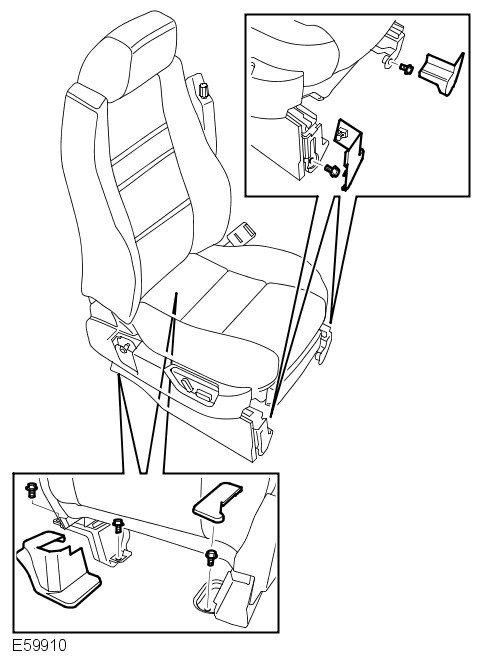

    Remove the bolt covers. Remove the 5 Torx bolts. Release the front seat.
  3. E45102
    Remove the bolt cover. Passenger side, disconnect the electrical connector. Remove and discard the Torx bolt. Release the safety belt lower anchor from the seat.
  4. E45103

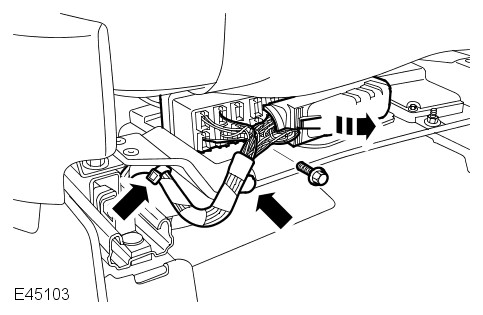

    Protect the rocker panel. Remove the bolt. Disconnect the 2 electrical connectors. Release the 2 wiring harness clips. With assistance, remove the front seat.
Installation
  1. With assistance, install the front seat. Connect the electrical connectors. Secure the wiring harness clips.
  2. Attach the safety belt lower anchor to the seat. Tighten the new Torx bolt. Passenger side, connect the electrical connector. Install the bolt cover.
    Renew Part: Seatbelt buckle bolt(s) Quantity: 1.
    Torque: 40Nm
  3. Secure the front seat. Tighten the Torx bolts. Install the bolt covers.
    Torque: 40Nm
  4. Connect the battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
