Published: 13-Mar-2018

2007.0 Range Rover Sport (LS), 308-07B

Transfer Case

Transfer Case Draining and Filling (G2249648)

GENERAL PROCEDURES
  • 41.20.04
  • Transfer gearbox drain and refill
  • All Derivatives
  • 0.20
  • USED WITHINS

Part(s)

StepPart nameQuantity
Activation Step 5Transfer case drain plug washer1
Activation Step 8Transfer case drain plug washer1
Activation
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Position a container to collect the fluid.

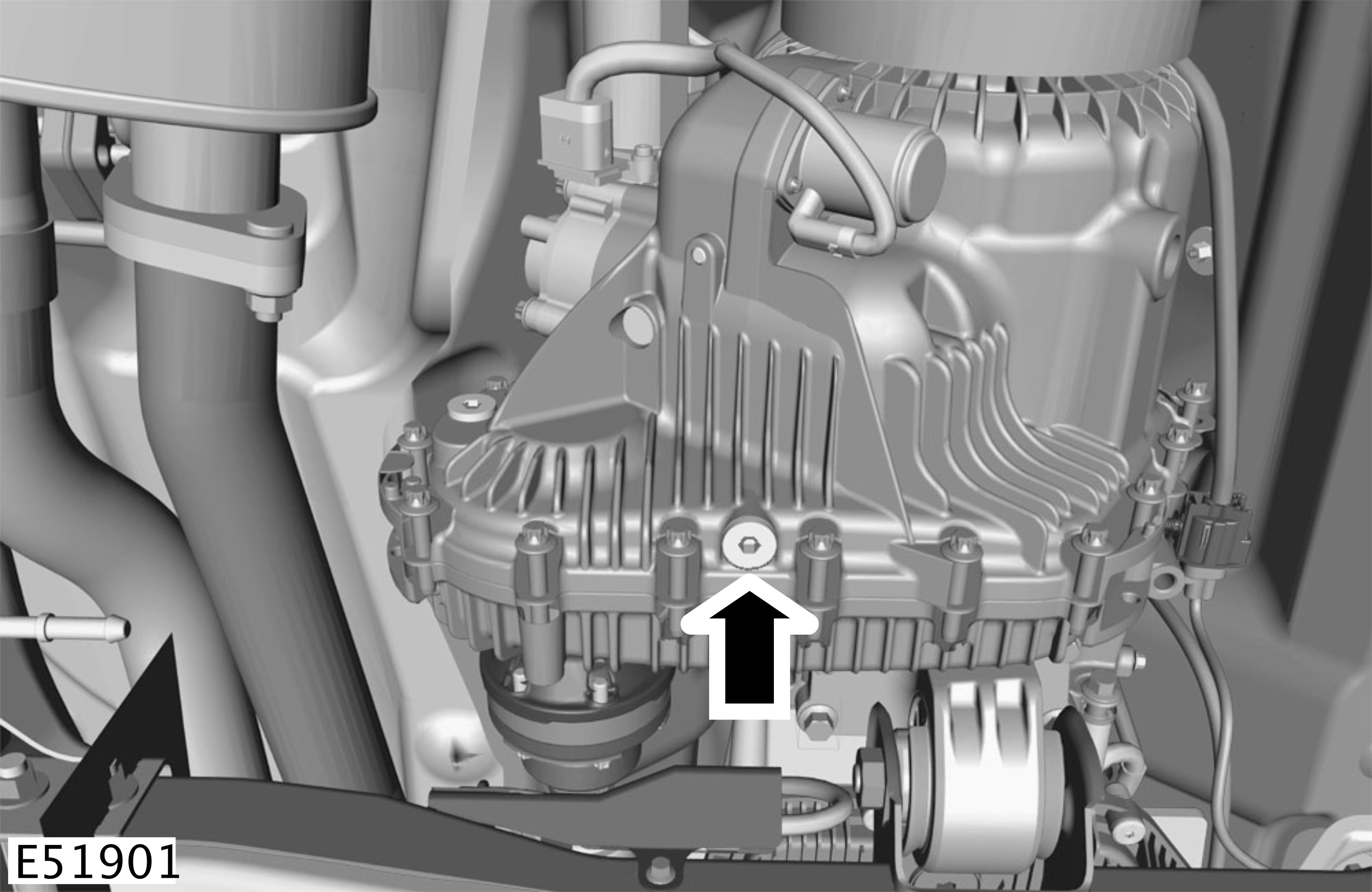

  3. E51901
    Remove the fluid drain plug. Clean the immediate area. Remove and discard the sealing washer.
  4. Allow the fluid to drain.
  5. Clean the component mating faces. Install the drain plug. Install a new sealing washer.
    Renew Part: Transfer case drain plug washer Quantity: 1.
    Torque
    M16: 22Nm
    M18: 28Nm

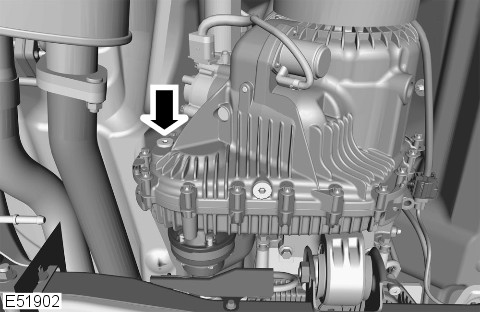

  6. E51902
    Remove the fluid filler/level plug. Clean the immediate area. Remove and discard the sealing washer.
  7. Refill transfer case with the recommended fluid, until the fluid is level with bottom of filler/level plug hole.
    Refer to: Specifications (308-07B Transfer Case, Specifications).
  8. Clean the component mating faces. Install the fluid filler/level plug. Install a new sealing washer.
    Renew Part: Transfer case drain plug washer Quantity: 1.
    Torque
    M16: 22Nm
    M18: 28Nm
