Published: 13-Mar-2018

2007.0 Range Rover Sport (LS), 204-05

Vehicle Dynamic Suspension

Air Suspension Front Solenoid Valve Block (G2249422)

REMOVAL AND INSTALLATION
  • 60.50.11
  • Valve block assembly - renew
  • All Derivatives
  • 0.80
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 1Air line collet(s)3
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the RH fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
  3. Using T4, depressurize the air suspension.
    Refer to: Air Suspension System Depressurize and Pressurize (204-05 Vehicle Dynamic Suspension, General Procedures).
  4. CAUTIONS:

    • Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

    • Visually inspect the air line ends for damage or wear. Replace the air line as necessary.

    NOTE:

    Note the air line fitted positions.

    Disconnect the 3 air lines from the air suspension front solenoid valve block.
  5. Disconnect the electrical connector. Release the valve block 3 rubber insulators. Remove the air suspension front solenoid valve block.

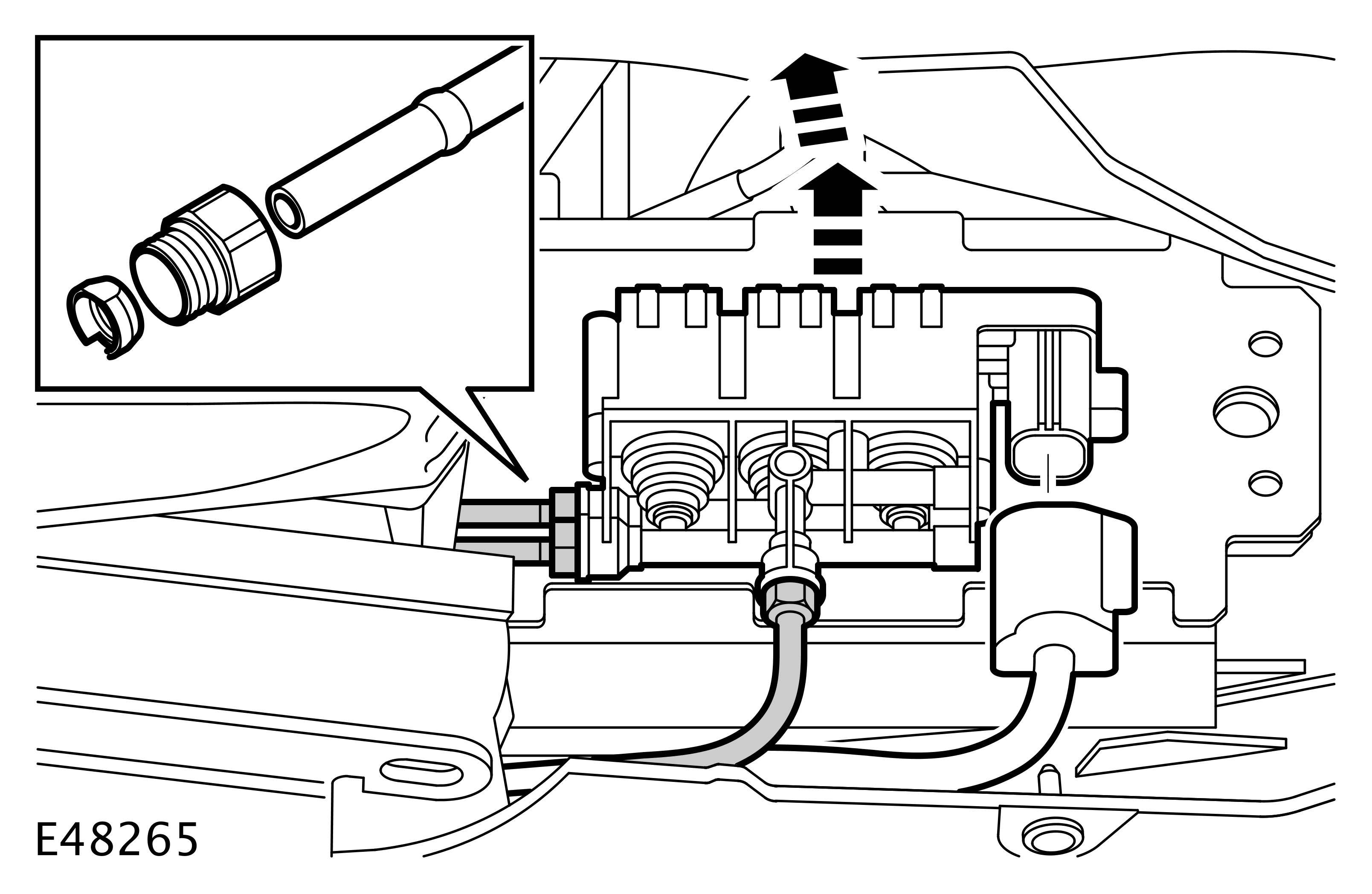

  6. E48265
    Remove and discard the collet and the union. Remove the Voss connectors from the air lines.
Installation
  1. CAUTION:

    Make sure the new Voss connector is installed and fully tightened with the alignment plug installed.

    NOTE:

    New air suspension components are supplied with new Voss connectors tightened to the correct torque. Do not install new voss connectors if a new component is being installed.

    Install and tighten new Voss connectors to the air suspension front solenoid valve block.
    Renew Part: Air line collet(s) Quantity: 3.
    Torque: 2.5Nm
  2. NOTE:

    Make sure the valve block does not become detached during connection of the air lines.

    Install the air suspension front solenoid valve block. Secure the 3 valve block rubber insulators. Connect the air lines into the Voss connector. Pull on each air line to make sure it is fully installed into the Voss connecter. Connect the electrical connector.
  3. Using T4, pressurize the air suspension.
    Refer to: Air Suspension System Depressurize and Pressurize (204-05 Vehicle Dynamic Suspension, General Procedures).
  4. Install the RH fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).
