Published: 01-Aug-2016

2007.0 Range Rover Sport (LS), 501-20B

Supplementary Restraint System

Driver Airbag Module (G2003067)

REMOVAL AND INSTALLATION
  • 76.74.01
  • Air Bag - Steering Wheel - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS

Special Tool(s)

E48291

501-106

Remover, Driver Air Bag

Removal
WARNINGS:

  • It is imperative that before any work is undertaken on the Supplemental Restriant System (SRS) system, the appropriate information is read thoroughly

  • Always disconnect both primary battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the primary battery

NOTE:

If the SRS component is to be replaced, the bar code of the new unit must be recorded.


  1. Disconnect the primary battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Make the SRS system safe.
    Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

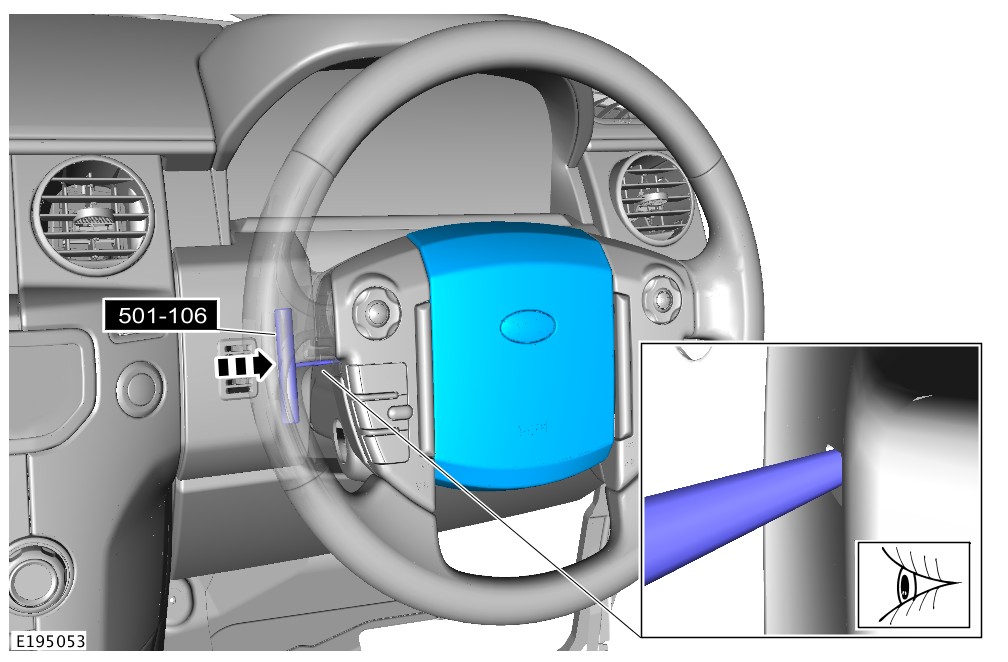

  3. E195053
    • Insert the special tool.
    • Repeat the above procedure for the other side.

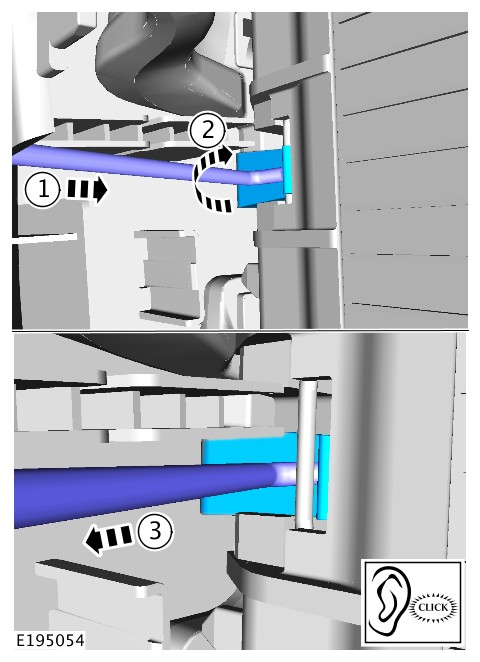

  4. E195054
    • 1. Gently apply pressure to the tang as illustrated.
    • 2. Locate the special tool around the air bag module as illustrated.
    • 3. Pull the tool to release the air bag module from the tang.
    • Repeat step for other side.

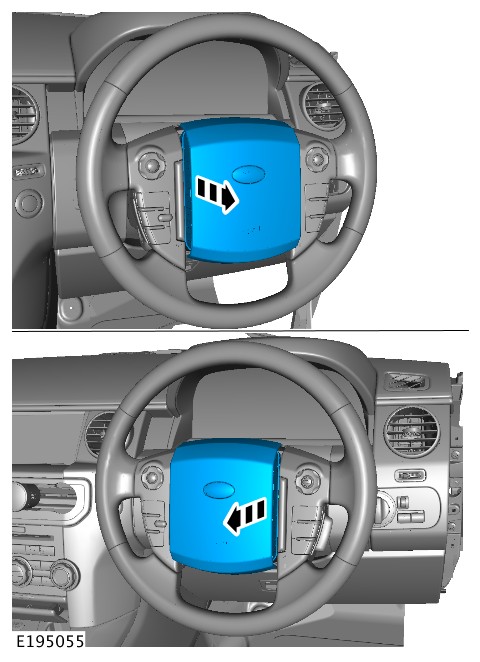

  5. E195055
    • Remove the driver air bag module.
  6. CAUTION:

    Take extra care not to damage the wiring harness clips.

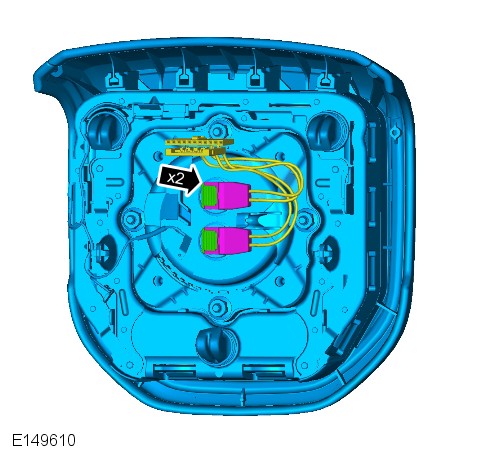

    E149610
    • Remove the wiring harness.
Installation
  1. CAUTION:

    Take extra care not to damage the wiring harness clips.

    E149610
    • Install the wiring harness.

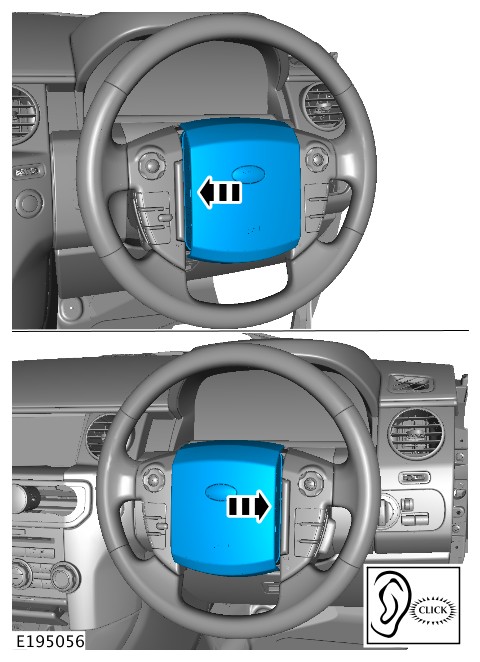

  2. E195056
    • Install the driver air bag module.
  3. Connect the primary battery ground cable.
    Refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
