Published: 11-Feb-2019

2007.0 Range Rover Sport (LS), 501-10

Seating

Seat Smoothing (G1774019)

GENERAL PROCEDURES
Check
WARNINGS:

  • Make sure that the steamer is in the OFF position before connecting or disconnecting from the electrical outlet.

  • Do not use another high wattage device on the same electrical circuit.

  • If the use of an extension cord is absolutely necessary, the cord must be rated at a minimum of 10 amps.

  • To avoid the risk of electrical shock, check the condition of the power cord and the steamer before use.

  • Make sure that the steamer is disconnected from the electrical outlet before filling or emptying the water reservoir.

  • The steamer must only be used and placed on its stand on a stable surface.

  • To prevent injury such as burns, take care whilst using the steamer. Avoid coming into contact with the hot surface of the steamer and do not direct steam toward any persons.

  • The steamer must ALWAYS be switched off when not in use or left unattended.

  • Do not allow the power cord to come into contact with the hot surface of the steamer.

CAUTIONS:

  • Protect the surrounding paintwork to avoid damage.

  • Protect the paintwork during this operation.

  • Do not use any additives in the steamer. Damage to the steamer or the seat cover can result if used.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.


  1. NOTE:

    The seat smoothing process should be used to improve all natural leather characteristics before the seat cover is replaced. Use the below examples and the seat cover inspection procedure as a guide for when to use the seat smoothing process.

    Refer to: Seat Smoothing (501-10 Seating, General Procedures).

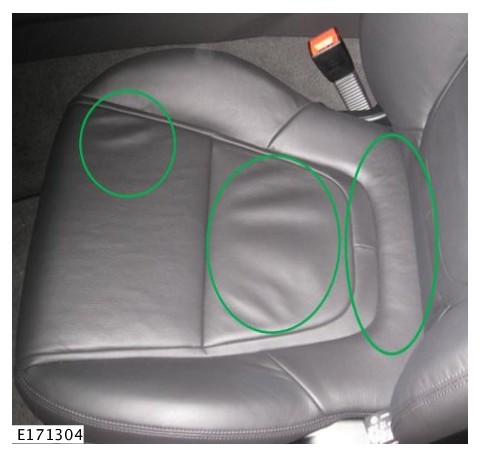

  2. NOTE:

    The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.

    E171304

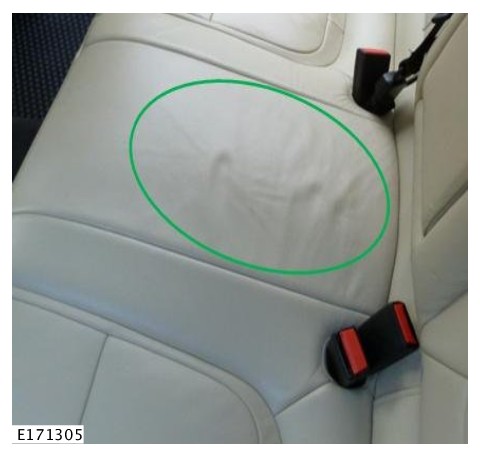

  3. NOTE:

    The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.

    E171305

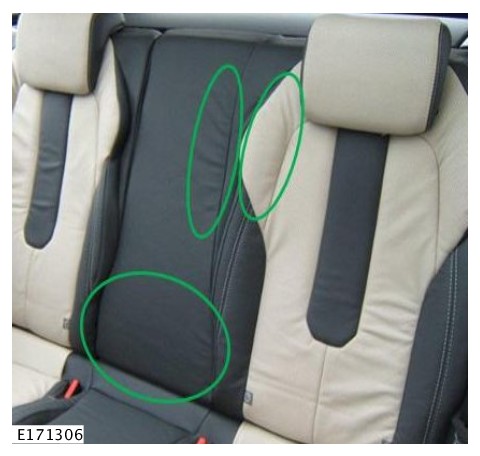

  4. NOTE:

    The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.

    E171306

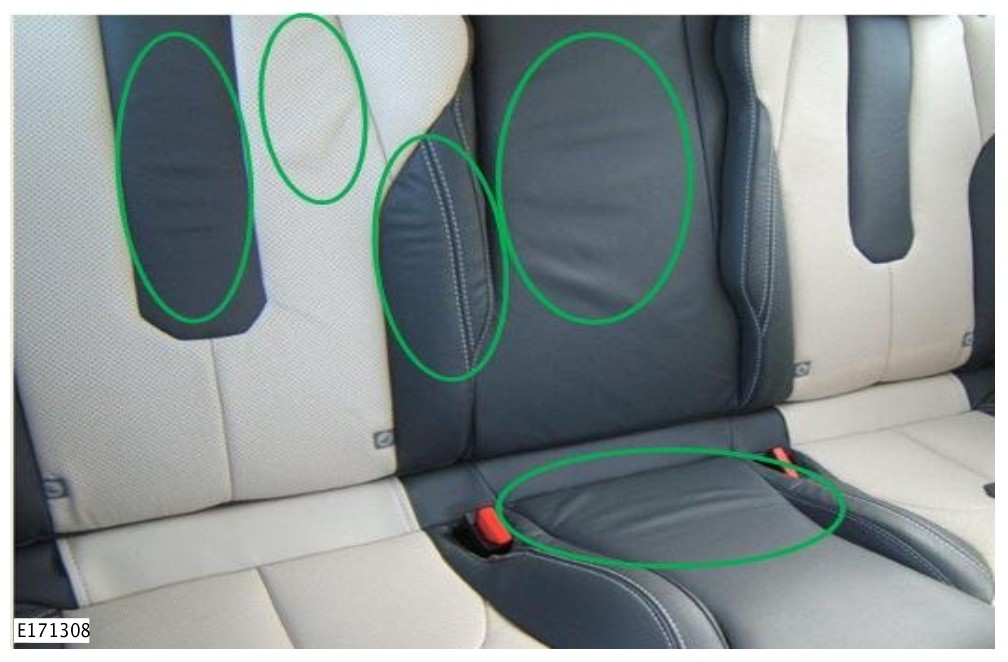

  5. NOTE:

    The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.

    E171308

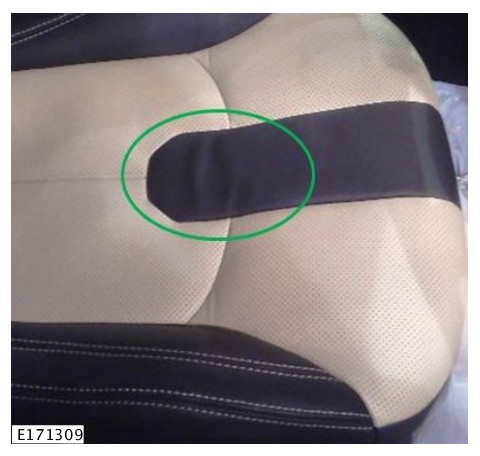

  6. NOTE:

    The example in the illustration shows the natural characteristics of leather that can be improved using the seat smoothing process.

    E171309

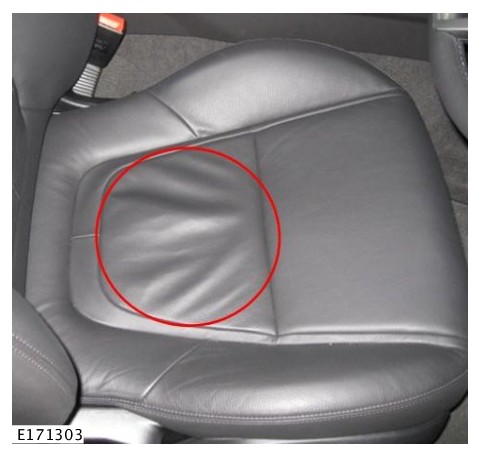

  7. NOTE:

    The example in the illustration shows the natural characteristics of leather that can not be improved using the seat smoothing process.

    E171303

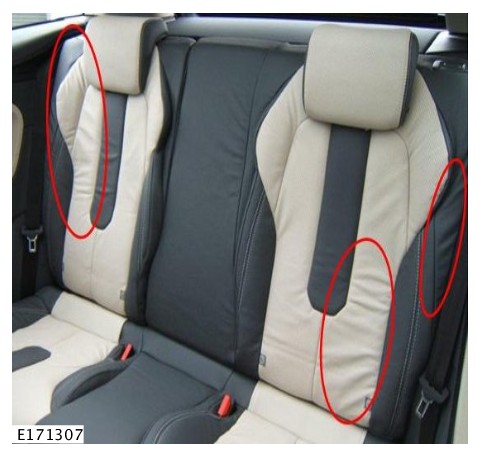

  8. NOTE:

    The example in the illustration shows the natural characteristics of leather that can not be improved using the seat smoothing process.

    E171307
  9. CAUTIONS:

    • Steam the leather cushions evenly and progressively. Do not use excessive force.

    • Take care not to damage the leather whilst steaming into the corners.

    • Do not hold the steamer in one place for longer than 10 seconds, as this will burn the leather and damage the covers.
