2007.0 Range Rover Sport (LS), 308-07A

Four-Wheel Drive Systems

Transfer Case Clutch Solenoid - Vehicles With: Vehicles Built From: 01/2009 (G1549892)

REMOVAL AND INSTALLATION
  • 41.30.08
  • Solenoid - clutch control - renew
  • All Derivatives
  • 0.30
  • USED WITHINS

Part(s)

StepPart nameQuantity
Installation Step 1Transfer Case Clutch Solenoid kit1
Removal
  1. WARNING:

    Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.
  2. Drain the transfer case.
    Refer to: Transfer Case Draining and Filling (308-07B Transfer Case, General Procedures).
  3. CAUTION:

    Connect the diagnostic tool, prior to removal of the solenoid. Carry out the diagnostic service function transfer case – solenoid replacement.

    NOTES:

    • Some fluid spillage is inevitable during this operation.

    • Note the orientation of the electrical connector prior to removal.

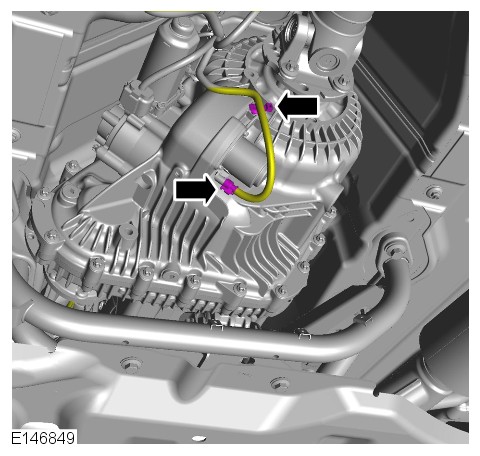

  4. E146849
Installation
  1. CAUTIONS:

    • Failure to energise the solenoid to aid installation of the arm, may result in damage to the shift fork once the component is installed and the system is operated.

    • Make sure the seal is installed correctly.

    • Make sure that new bolts are installed.

    • Make sure that the electrical connector is installed in the correct orientation as noted in the removal step.

    • Make sure that the component sits flush to the transfer case.

    NOTE:

    Tighten the retaining bolts evenly and progressively.

    Connect the electrical connector and energize the solenoid (use the service function transfer case – solenoid replacement to assist with energizing the solenoid) to allow the arm to extend and correctly locate into the shift fork.
    Renew Part: Transfer Case Clutch Solenoid kit Quantity: 1.
    Torque: 5Nm
  2. E146849
  3. Fill the transfer case.
    Refer to: Transfer Case Draining and Filling (308-07B Transfer Case, General Procedures).
  4. Using the approved diagnostic equipment, clear all Diagnostic Trouble Code(s) (DTCs) and check for correct operation.
