2007.0 Range Rover Sport (LS), 413-01

Instrument Cluster

Instrument Cluster Lens (G1478905)

REMOVAL AND INSTALLATION
Removal
NOTE:

Some variation in the illustration may occur, but the essential information is always correct.


  1. Fully extend the steering column for access
  2. Disconnect the battery ground cable.
    Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
  3. Refer to: Instrument Cluster (413-01 Instrument Cluster, Removal and Installation).
  4. E141120

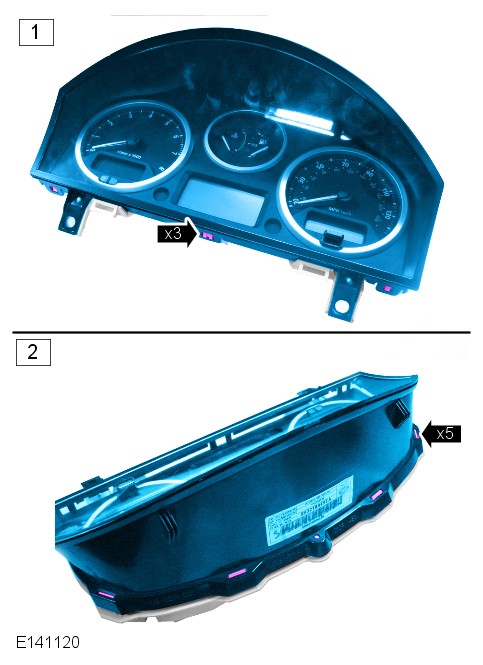

    Carefully release the 3 clips along the bottom edge and the 5 clips along the top edge.
  5. E141274

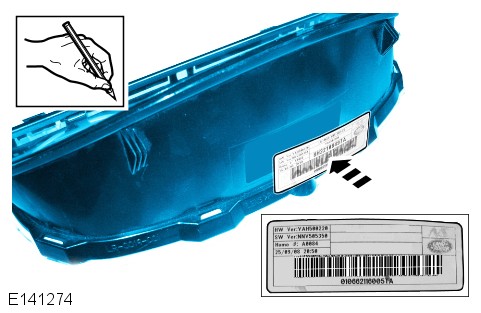

    Copy the serial number and build date information from the old label on to the new label.
  6. CAUTION:

    Take care not to damage the dials or buttons when removing the lens.

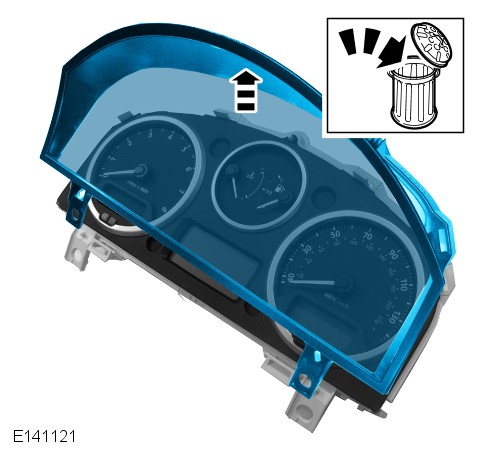

    E141121
Installation
NOTE:

Take care not to leave finger prints inside new lens when fitting.

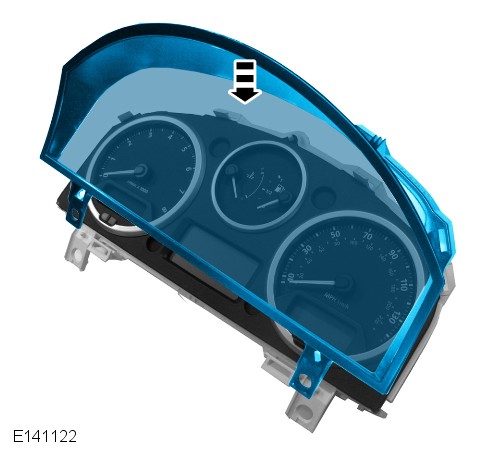

  1. E141122
  2. Refer to: Instrument Cluster (413-01 Instrument Cluster, Removal and Installation).
  3. Connect the battery ground cable
    Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
  4. Reset the steering column to the original position.
