2007.0 Range Rover Sport (LS), 501-10

Seating

Front Seat Manual Height Adjustment Lever (G1328572)

REMOVAL AND INSTALLATION
Removal
  1. Remove the drivers side seat slides. For additional information, refer to: Seat Track - Vehicles With: Power Seats (501-10 Seating, Removal and Installation).
  2. Remove the front seat cushion base. For additional information, refer to: Front Row Seat Cushion (501-10 Seating, Removal and Installation).

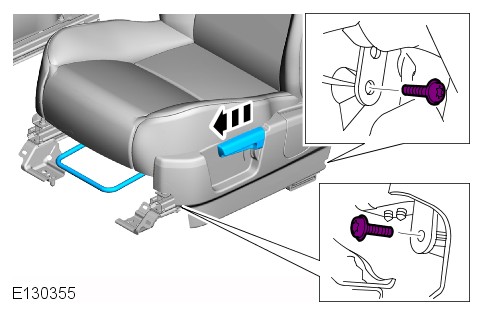

  3. E130355

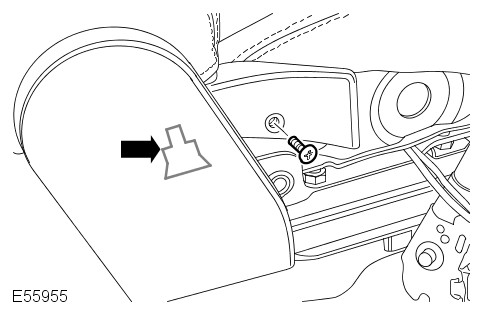

  4. E55955

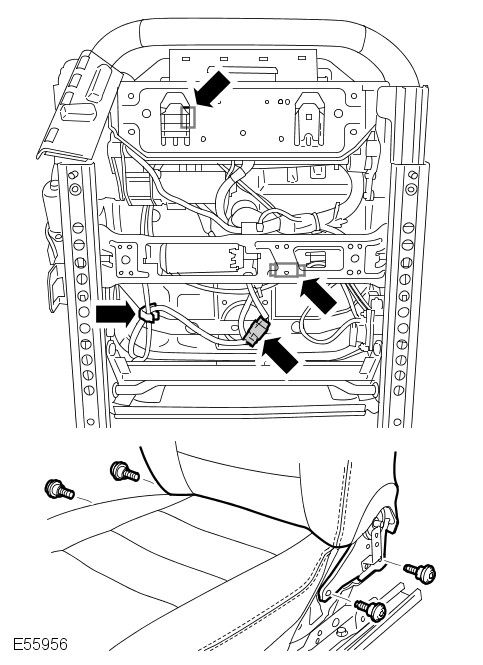

  5. E55956
    TORQUE: 25 Nm
  6. CAUTIONS:

    • Tie straps must be fitted, failure to follow this instruction may result in personal injury.

    • Failure to follow this instruction may cause damage to the vehicle.

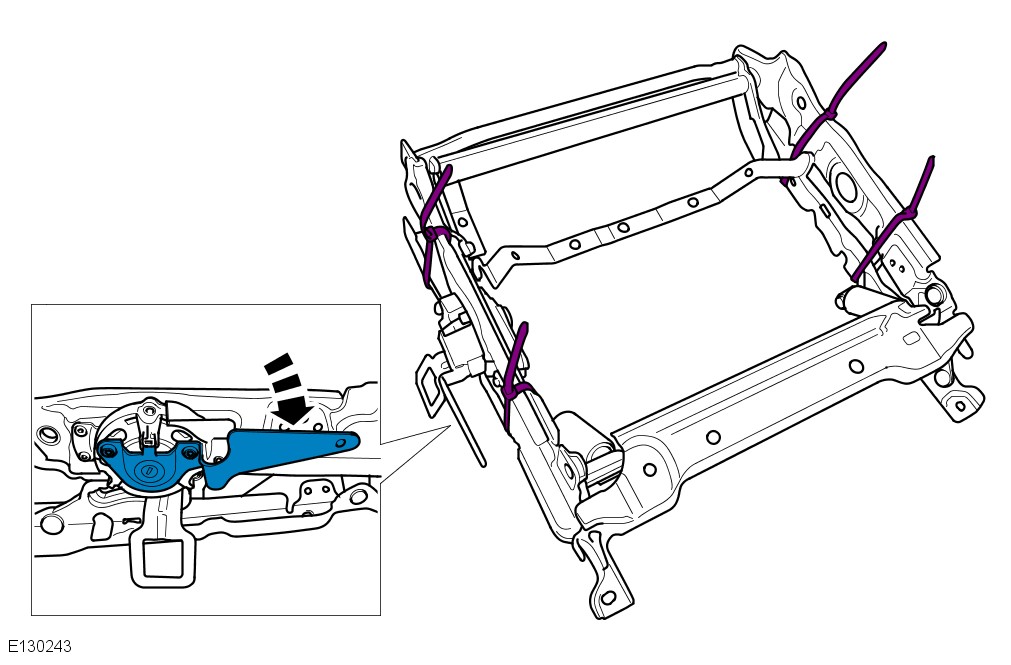

    E130243
    Secure the seat base using the 4 tie straps supplied, as shown.
      • Using the seat height adjuster, lower the seat base to its lowest position.

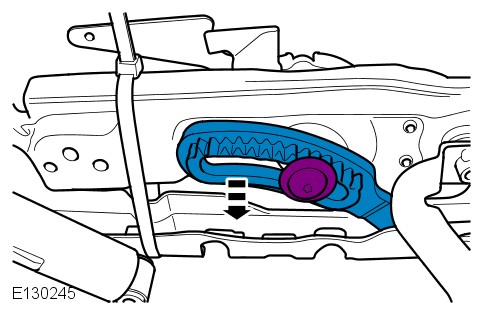

  7. E130245
    Release the arm from the height adjuster.
      • Remove the Torx bolt.

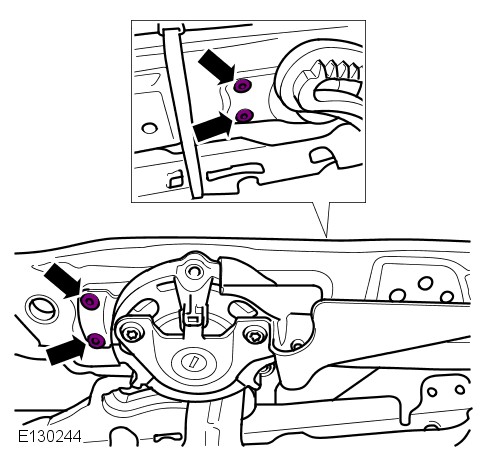

  8. E130244
    Drill out the 4 rivets.
Installation
  1. To install, reverse the removal procedure.
