Published: 11-May-2011

2007.0 Range Rover Sport (LS), 415-01

Audio Unit

Audio Unit Fascia (G1185489)

REMOVAL AND INSTALLATION
Removal
  1. Remove the audio unit (integrated head unit) assembly. For additional information, refer to: Audio Unit (415-01 Audio Unit, Removal and Installation).
  2. CAUTION:

    Make sure that the area around the component is clean and free of foreign material.

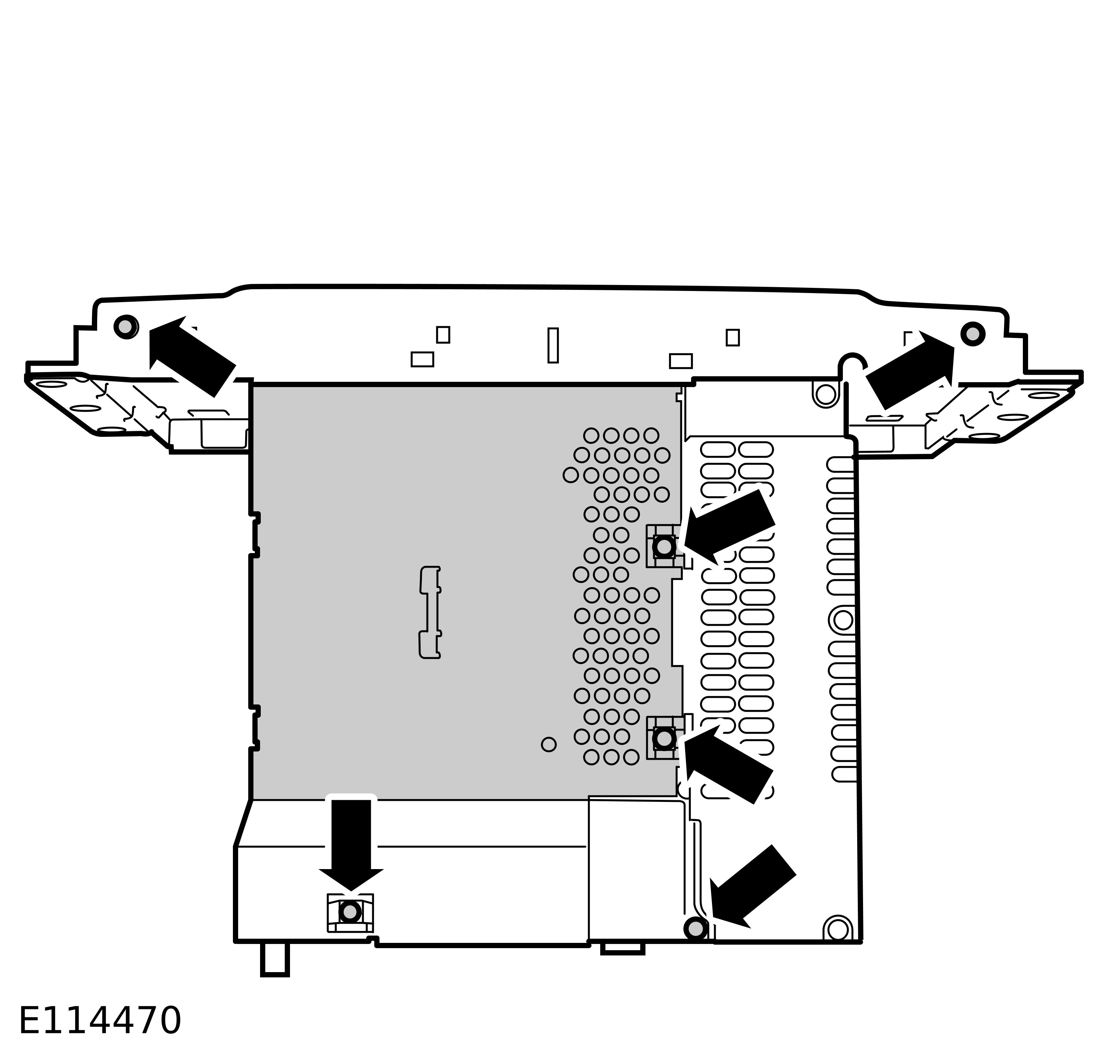

    E114470
    Remove the audio unit upper trim panel.
      • Remove the 6 screws.

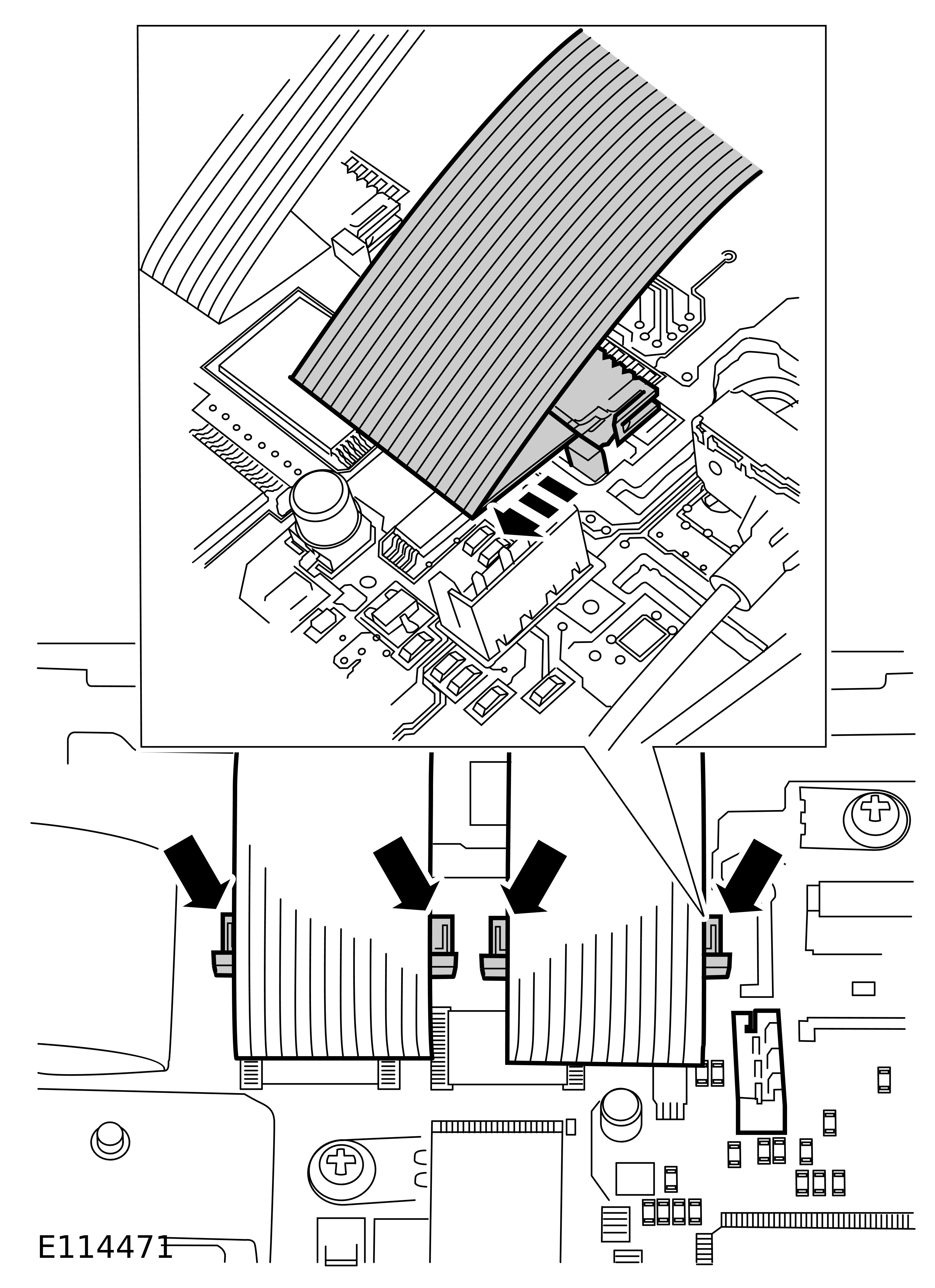

  3. E114471
    Remove the 2 PCB (printed circuit board) ribbons from the main PCB.
      • Using a suitable plastic tool, carefully release the 4 clips from each side of the 2 connectors.

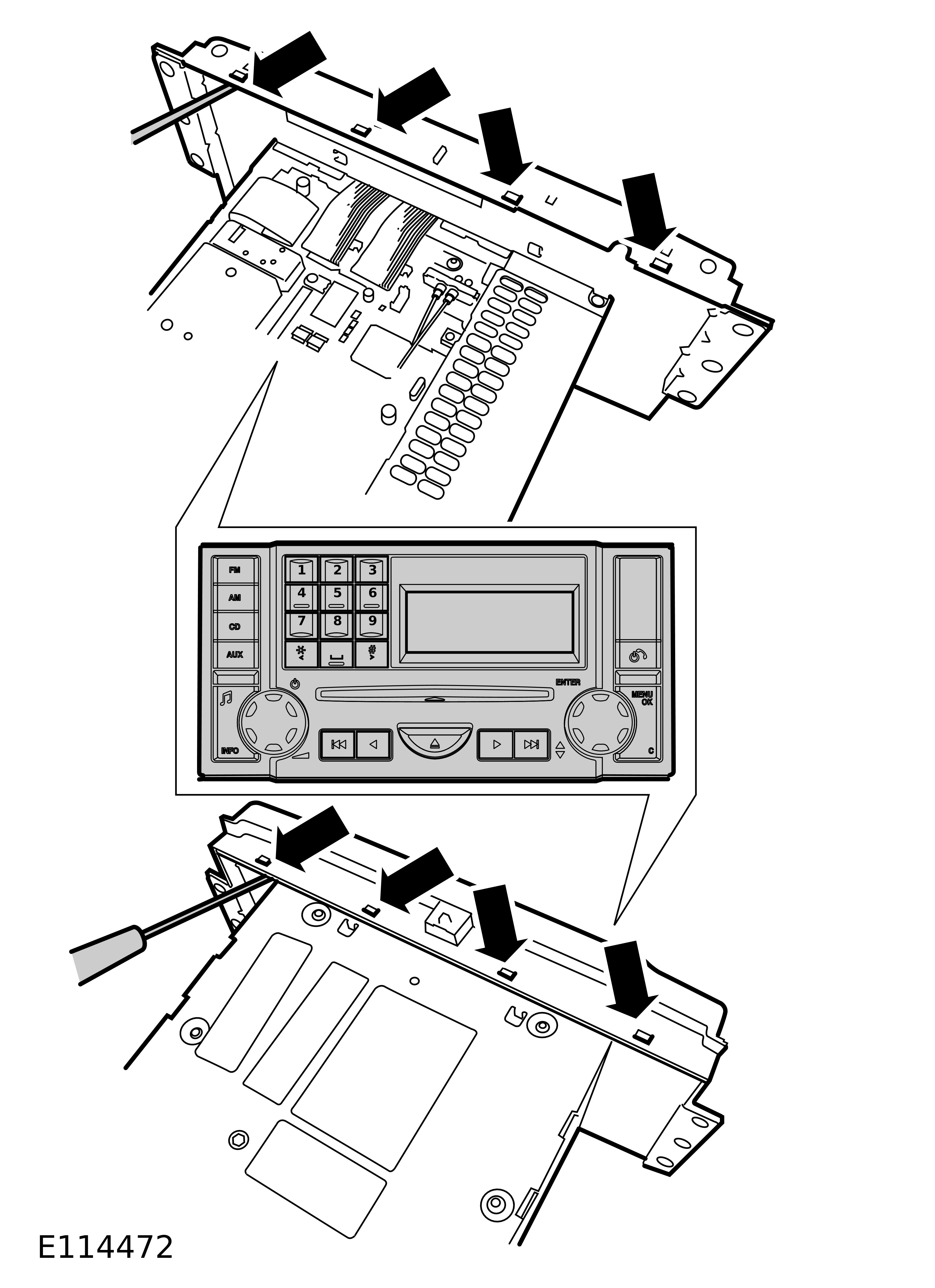

  4. E114472
    Displace the audio unit fascia.
      • Using a suitable tool, carefully release the 8 clips.
  5. CAUTIONS:

    • Make sure ribbons are not damaged when removing the fascia panel.

    • Care should be taken to prevent damage to fascia panel front face.

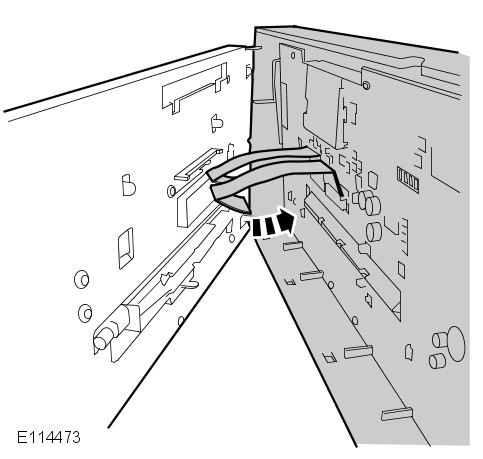

    E114473
    Remove the audio unit fascia from the main IHU body.

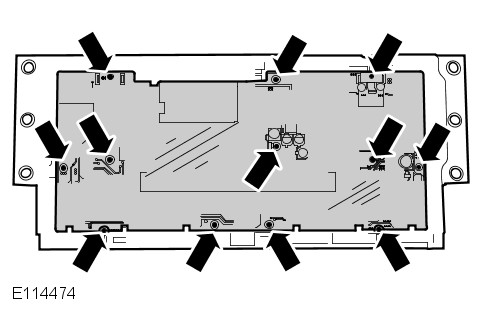

  6. E114474
    Remove the PCB from the audio unit fascia.
      • Remove the 12 screws.
Installation
  1. CAUTION:

    Care should be taken to prevent damage to fascia panel front face.

    Install the PCB to the new audio unit fascia.
      • Install the 12 screws.
  2. CAUTION:

    Make sure ribbons are not damaged when installing the fascia panel.

    Install the audio unit fascia.
      • Carefully feed the ribbons through the audio unit casing.
      • Push the audio unit fascia to the IHU main body and make sure the audio unit fascia is secured with the 8 clips.
  3. CAUTION:

    make sure the ribbon cables are correctly inserted or the IHU will not function properly.

    Install the 2 PCB ribbons to the main PCB.
      • Insert the 2 ribbons to the connectors on the main PCB.
      • Using a suitable plastic tool, carefully secure the 4 clips.
  4. Install the audio unit upper trim panel.
      • Install the 6 screws.
  5. Install the audio unit (integrated head unit) assembly. For additional information, refer to: Audio Unit (415-01 Audio Unit, Removal and Installation).
