2007.0 Range Rover Sport (LS), 412-04

Control Components

Passenger Side Temperature Blend Door Actuator - LHD AWD (G1084981)

REMOVAL AND INSTALLATION
  • 80.10.38
  • Motor - temperature control - passengers side - renew
  • Left hand drive
  • 0.60
  • USED WITHINS
Removal
  1. Remove the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
  2. NOTE:

    RHD illustration shown, LHD is similar.

    E47530
    Remove the passenger side closing trim panel.
      • Release the clip.
      • Remove the 2 screws.
      • Disconnect the electrical connector.
  3. NOTE:

    RHD illustration shown, LHD is similar.

    E54648

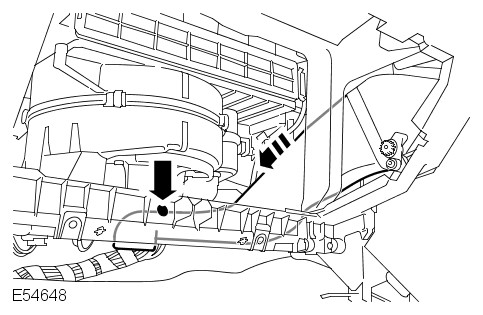

    Remove the passenger side footwell duct.
      • Remove the clip.
  4. NOTE:

    RHD illustration shown, LHD is similar.

    E54649

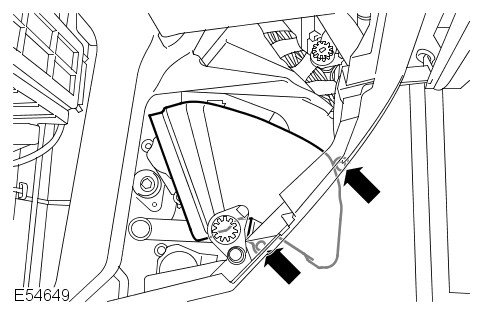

    Remove the passenger side footwell duct elbow.
      • Remove the 2 Torx screws.
  5. E54728

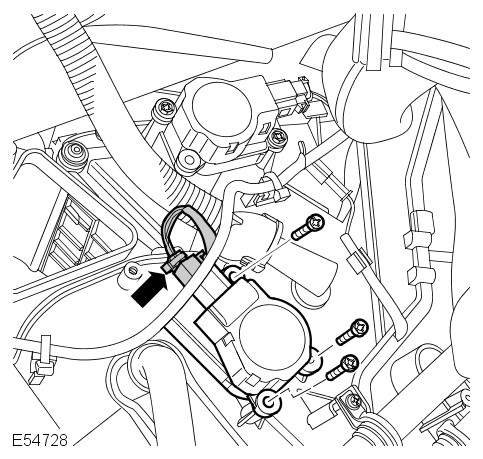

    Remove the temperature blend door actuator.
      • Disconnect the electrical connector.
      • Remove the 3 screws.
Installation
  1. Install the temperature blend door actuator.
      • Tighten the screws to 1 Nm.
      • Connect the electrical connector.
  2. Install the passenger side footwell duct elbow.
      • Tighten the screws.
  3. Install the passenger side footwell duct.
      • Install the clip.
  4. Install the passenger side closing trim panel.
      • Connect the electrical connector.
      • Tighten the screws.
      • Secure the clip.
  5. Install the glove compartment. For additional information, refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).
