Published: 11-May-2011

2007.0 Range Rover Sport (LS), 310-03D

Speed Control - TDV8 3.6L Diesel

Speed Control Switch (G1014404)

REMOVAL AND INSTALLATION
Removal
WARNINGS:

  • Persons working on the supplemental restraint system (SRS) must be fully trained and have been issued with the safety guidelines.

  • Allow a period of 10 minutes to elapse after disconnecting the battery before undertaking any work on the SRS.

  • The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

  • The correct procedures must always be used when working on SRS components.

  • It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

  • Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.

  • Take extra care when handling SRS components.

  1. Make the air bag supplemental restraint system (SRS) safe. For additional information, refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).
  2. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  3. Remove the driver air bag module. For additional information, refer to: Driver Air Bag Module (501-20B, Removal and Installation).

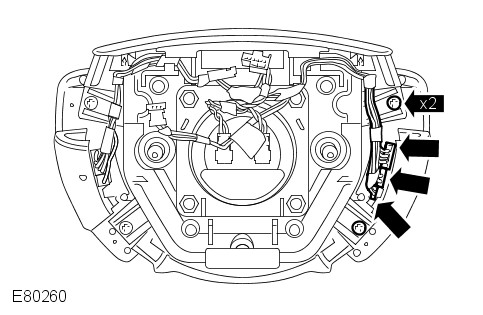

  4. E80260
    Remove the speed control switch.
      • Disconnect the 3 electrical connectors.
      • Remove the 2 screws.
Installation
  1. Install the speed control switch.
      • Connect the 3 electrical connectors.
      • Install the 2 screws and tighten to 3 Nm (2 lb.ft).
  2. Install the driver air bag module. For additional information, refer to: Driver Air Bag Module (501-20B, Removal and Installation).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
