Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems

Ignition Lock Cylinder (G971672)

REMOVAL AND INSTALLATION
  • 57.40.28
  • Vehicle Immobilizer Control Module (VIM) (Electric Steering Column Lock) - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
NOTE:

This procedure is for removal and installation of the ignition lock cylinder. The ignition lock and door lock cylinders are replaced in sets.

  1. Fully extend the steering column for access.
  2. E50851
    Remove the steering column upper shroud.
      • Release the 6 clips.
  3. E52017
    Remove the steering column lower shroud.
      • Remove the 3 Torx screws.
      • Disconnect the electrical connector.

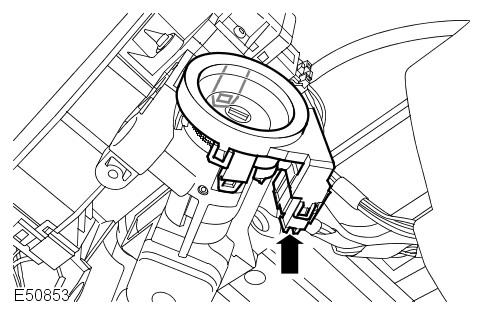

  4. E50853
    Remove the passive coil.
      • Disconnect the electrical connector.
      • Release the 2 clips.

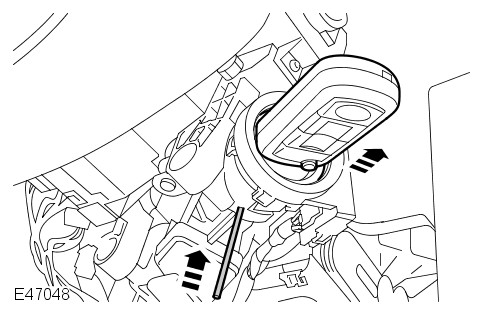

  5. E47048
    Remove the ignition lock cylinder.
      • Turn the ignition key to position 1.
      • Insert a pin, not exceeding 2 mm diameter, through the access hole in the ignition lock cylinder housing to depress the plunger, and release the ignition lock cylinder.
Installation

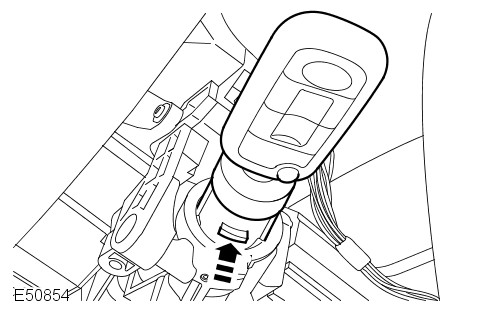

  1. E50854
    Install the ignition lock cylinder.
      • Turn the ignition key to position 1.
      • Locate into guides and depress the plunger.
  2. Install the passive coil.
      • Secure the clips.
      • Connect the electrical connector.
  3. Install the steering column shrouds.
      • Connect the electrical connector.
      • Tighten the Torx screws.
      • Secure the clips.
