2007.0 Range Rover Sport (LS), 303-03E

Engine Cooling - TDV8 3.6L Diesel

Engine Coolant Level Switch (G967884)

REMOVAL AND INSTALLATION
  • 26.10.06
  • Sensor - low coolant level - renew
  • TDV8
  • 0.10
  • USED WITHINS
Removal
  1. E52345
    Release the power steering fluid reservoir from the bracket.

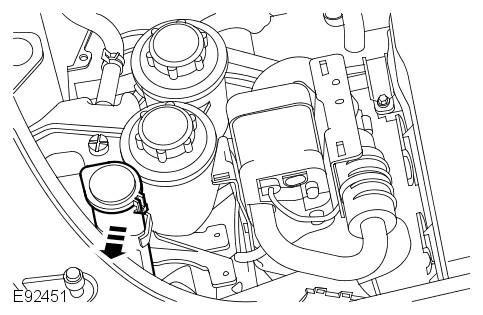

  2. E92451
    Release the windshield washer reservoir filler neck.

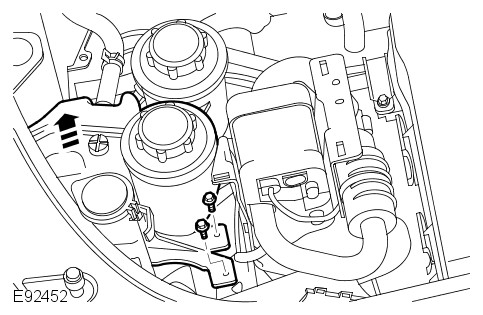

  3. E92452
    Reposition the coolant expansion tank.
      • Remove the 2 bolts.

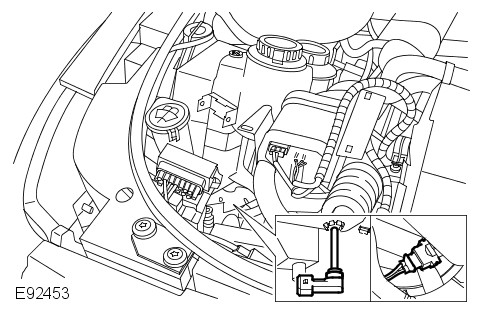

  4. E92453
    Remove the engine coolant level switch.
      • Disconnect the engine coolant level switch electrical connector.
Installation
  1. NOTE:

    An audible click can be heard when the engine coolant level switch is correctly installed.

    Install the engine coolant level switch.
      • Connect the engine coolant level switch electrical connector.
  2. CAUTION:

    Make sure that the component is correctly located on the locating pegs.

    Secure the coolant expansion tank.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  3. Secure the windshield washer reservoir filler neck.
  4. Secure the power steering fluid reservoir to the bracket.
