2007.0 Range Rover Sport (LS), 307-01D

Automatic Transmission/Transaxle - TDV8 3.6L Diesel

Selector Shaft Seal (G953051)

IN-VEHICLE REPAIR
  • 44.15.34
  • Selector shaft seal - renew
  • TDV8
  • 0.50
  • USED WITHINS

Special Tool(s)

E50766

307-509-1(LRT-44-033/1)

Seal extractor

E50767

307-509-2(LRT-44-033/2)

Seal extractor

E50768

307-509-3(LRT-44-033/3)

Seal installer

Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. Remove the RH catalytic converter. For additional information, refer to: Right Catalytic Converter - Vehicles Without: Diesel Particulate Filter (DPF) (309-00D Exhaust System - TDV8 3.6L Diesel, Removal and Installation) / Right Catalytic Converter - Vehicles With: Diesel Particulate Filter (DPF) (309-00D Exhaust System - TDV8 3.6L Diesel, Removal and Installation).
  3. E44596
    Remove the transmission heat shield.
      • Remove the 4 bolts.

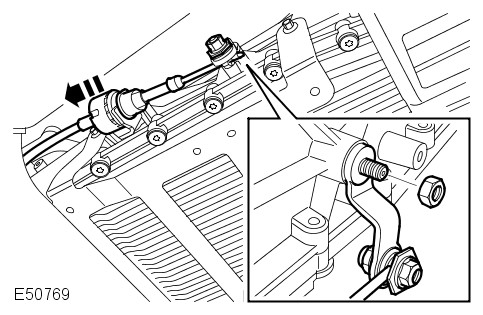

  4. E50769
    Release the selector cable and lever.
      • Remove the nut.
      • Compress the latch and release the cable.
  5. CAUTION:

    Make sure that the area around the component is clean and free of foreign material.

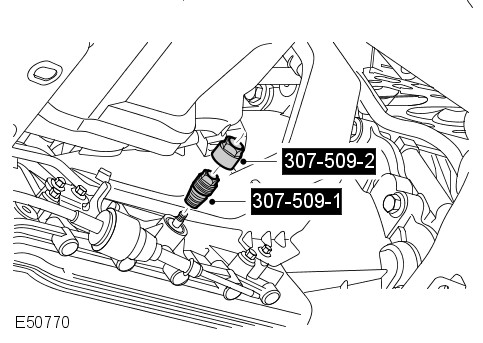

    E50770
    Using the special tools, remove the selector shaft seal.
Installation

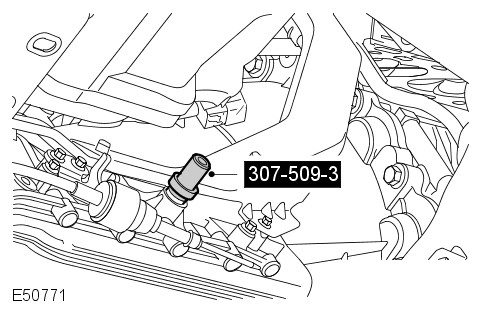

  1. E50771
    Using the special tool, install the selector shaft seal.
      • Clean the components.
  2. Secure the selector cable and lever.
      • Secure with the clip.
      • Tighten the nut to 12 Nm (9 lb.ft).
  3. Install the transmission heat shield.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  4. Install the RH catalytic converter. For additional information, refer to: Right Catalytic Converter - Vehicles Without: Diesel Particulate Filter (DPF) (309-00D Exhaust System - TDV8 3.6L Diesel, Removal and Installation) / Right Catalytic Converter - Vehicles With: Diesel Particulate Filter (DPF) (309-00D Exhaust System - TDV8 3.6L Diesel, Removal and Installation).
