Published: 11-May-2011

2007.0 Range Rover Sport (LS), 307-01D

Automatic Transmission/Transaxle - TDV8 3.6L Diesel

Output Shaft Seal (G953050)

IN-VEHICLE REPAIR
  • 44.20.21
  • Oil seal - output shaft - renew
  • TDV8
  • 3.10
  • USED WITHINS

Special Tool(s)

E50940

303-903(LRT-12-092)

Oil seal remover

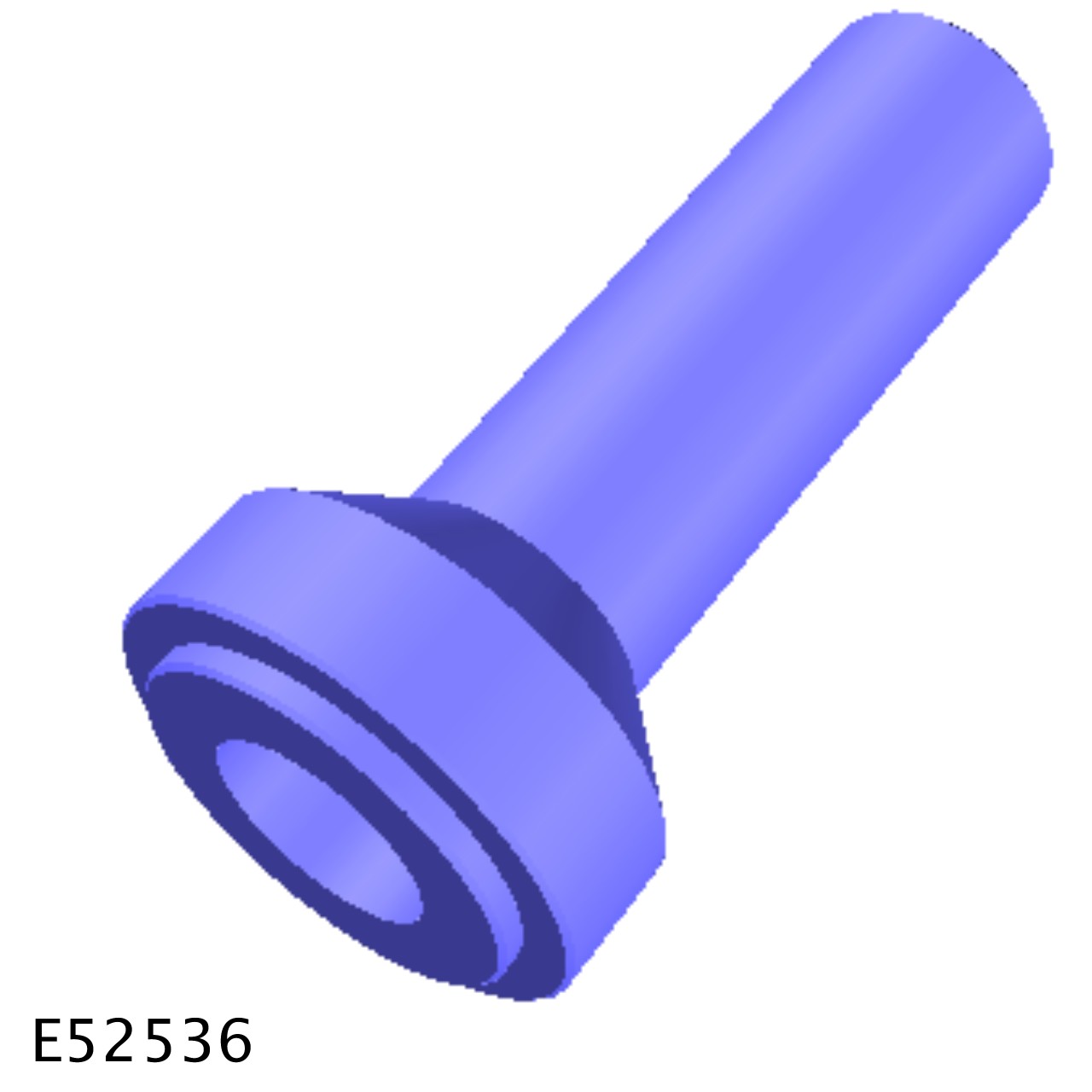

E52536

307-520

Oil seal installer

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the transfer case. For additional information, refer to: Transfer Case - 3.6L (TdV8) Diesel (308-07, Removal).
  4. CAUTION:

    Care must be taken to avoid damage to the seal register and running surface.

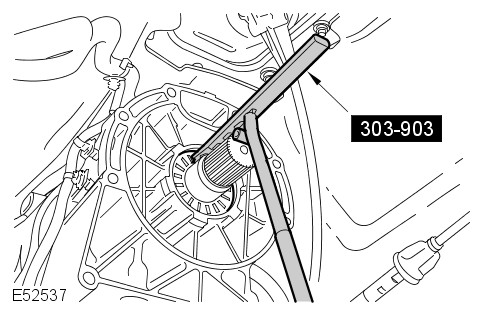

    E52537
    Remove the transmission output shaft oil seal.
      • Use the special tool.
Installation
  1. CAUTION:

    Oil seals must be fitted dry.

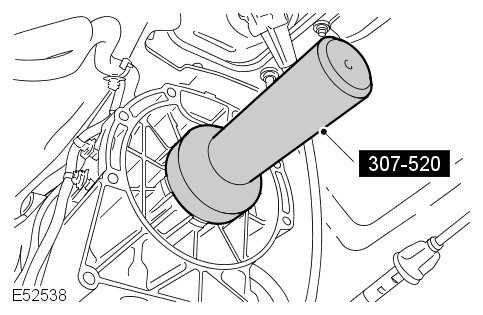

    E52538
    Install a new transmission output shaft oil seal.
      • Clean the seal register.
      • Use the special tool.
  2. Install the transfer case. For additional information, refer to: Transfer Case - 3.6L (TdV8) Diesel (308-07, Removal).
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  4. Check and top-up the transmission fluid level. For additional information, refer to: Transmission Fluid Level Check (307-01A Automatic Transmission/Transaxle - V8 S/C 4.2L Petrol, General Procedures).
