Published: 11-May-2011

2007.0 Range Rover Sport (LS), 307-02D

Transmission/Transaxle Cooling - TDV8 3.6L Diesel

Transmission Fluid Cooler (G946682)

REMOVAL AND INSTALLATION
  • 44.24.10
  • Transmission Fluid Cooler - Renew
  • TDV8
  • 1.30
  • USED WITHINS
Removal
  1. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  2. E45739
    Remove the radiator splash shield.
      • Remove the 4 bolts.
  3. CAUTION:

    Make sure that all openings are sealed. Use new blanking caps.

    E86039
    Disconnect the 2 transmission fluid cooler tubes from the transmission fluid cooler.
      • Position a container to collect the fluid spillage.
      • Release the 2 quick release connectors.

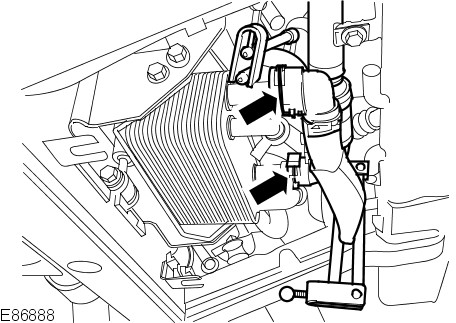

  4. E86888
    Disconnect the 2 transmission fluid cooler coolant hoses.
      • Clamp 2 the coolant hoses to minimize coolant loss.
      • Release the 2 clips.

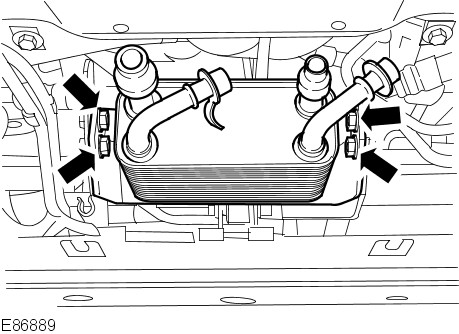

  5. E86889
    Remove the transmission fluid cooler.
      • Remove the 4 nuts and bolts.
Installation
  1. Install the transmission fluid cooler.
      • Tighten the nuts and bolts to 20 Nm (15 lb.ft).
  2. Connect the transmission fluid cooler coolant hoses.
      • Secure the clips.
      • Remove the coolant hose clamps.
  3. NOTE:

    Remove and discard the blanking caps.

    Connect the transmission fluid cooler tubes to the transmission fluid cooler.
      • Remove the container.
  4. Install the radiator splash shield.
      • Tighten the M6 bolts to 10 Nm (7 lb.ft).
      • Tighten the M10 bolts to 62 Nm (46 lb.ft).
  5. Check and top-up the transmission fluid level. For additional information, refer to: Transmission Fluid Level Check (307-01A Automatic Transmission/Transaxle - V8 S/C 4.2L Petrol, General Procedures).
  6. Check and top-up the coolant.
