Published: 11-May-2011

2007.0 Range Rover Sport (LS), 211-02

Power Steering

Power Steering Fluid Reservoir - TDV8 3.6L Diesel (G946676)

REMOVAL AND INSTALLATION
  • 57.15.08
  • Reservoir - power steering oil - renew
  • TDV8
  • 0.30
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Siphon the fluid from the power steering reservoir.

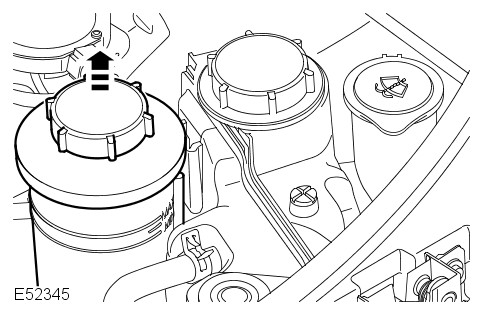

  3. E52345
    Release the power steering fluid reservoir from the coolant expansion tank.
  4. CAUTION:

    Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

    NOTE:

    Some fluid spillage is inevitable during this operation.

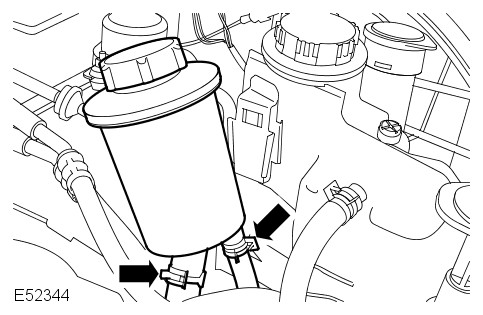

    E52344
    Remove the power steering fluid reservoir.
      • Position an absorbent cloth to collect fluid spillage.
      • Release the hose clips and disconnect the hoses.
Installation
  1. NOTE:

    Remove and discard the blanking caps.

    To install, reverse the removal procedure.
  2. Fill and bleed the power steering system. For additional information, refer to: Power Steering System Filling and Bleeding (211-00 Steering System - General Information, General Procedures).
