2007.0 Range Rover Sport (LS), 303-08D

Engine Emission Control - TDV8 3.6L Diesel

Crankcase Vent Oil Separator (G946511)

REMOVAL AND INSTALLATION
  • 17.10.04
  • Engine Vent Oil Separator - Renew
  • TDV8
  • 2.50
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Partially drain the cooling system. For additional information, refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).
  3. Remove the intake manifold. For additional information, refer to: Intake Manifold Plenum Chamber (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).

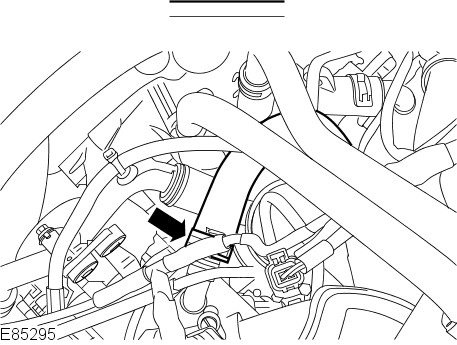

  4. E85295
    Disconnect the RH exhaust gas recirculation (EGR) coolant hose.
      • Release the clip.

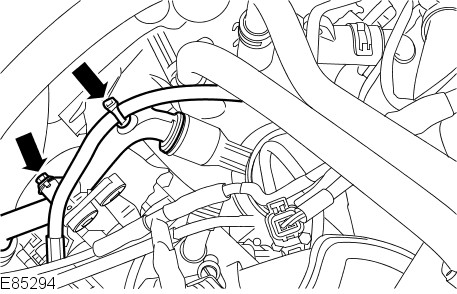

  5. E85294
    Disconnect the breather line.
      • Release the wiring harness.
      • Remove the bolt.
  6. CAUTION:

    Make sure that all openings are sealed. Use new blanking caps.

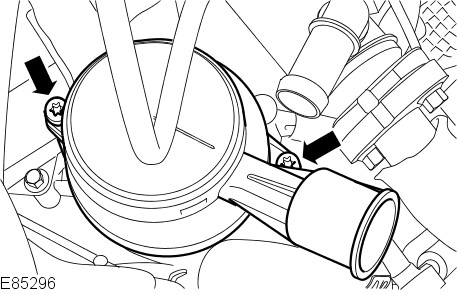

    E85296
    Remove and discard the crankcase vent oil separator.
      • Remove the 2 bolts.
Installation
  1. NOTE:

    Remove and discard the blanking caps.

    Install a new crankcase vent oil separator.
      • Clean the component mating faces.
      • Lubricate the O-ring seals with clean engine oil.
      • Tighten the bolts to 8 Nm (6 lb.ft).
  2. Connect the breather line.
      • Tighten the bolt to 10 Nm (7 lb.ft).
      • Secure the wiring harness.
  3. Connect the RH EGR coolant hose.
      • Secure with the clip.
  4. Install the intake manifold. For additional information, refer to: Intake Manifold Plenum Chamber (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  5. Fill and bleed the cooling system. For additional information, refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).
  6. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
