Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-14D

Electronic Engine Controls - TDV8 3.6L Diesel

Crankshaft Position Sensor Ring (G942393)

REMOVAL AND INSTALLATION
  • 18.30.14
  • Gear(s) - toothed - crankshaft sensor - renew
  • TDV8
  • 6.50
  • USED WITHINS

Special Tool(s)

E81372

303-1237

Installer - Crankshaft Position (CKP) Sensor Ring

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the flexplate. For additional information, refer to: Flexplate (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).

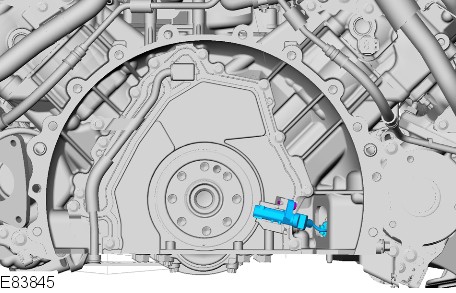

  4. E83845
    Remove the crankshaft position (CKP) sensor.
      • Remove the bolt.
  5. CAUTION:

    Care must be taken to avoid damage to the crankshaft.

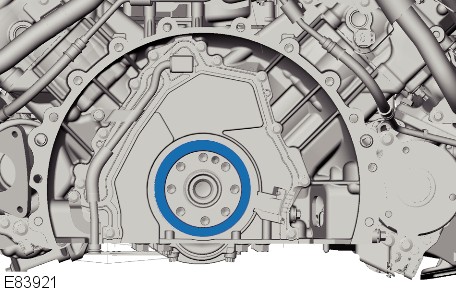

    E83921
    Remove and discard the CKP sensor ring.
Installation

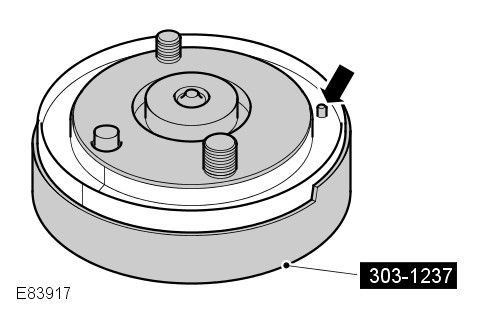

  1. E83917
    Install a new CKP sensor ring to the special tool.
      • Wind the special tool nut back to the end of the thread.
      • Engage the CKP sensor ring to the locating pin.

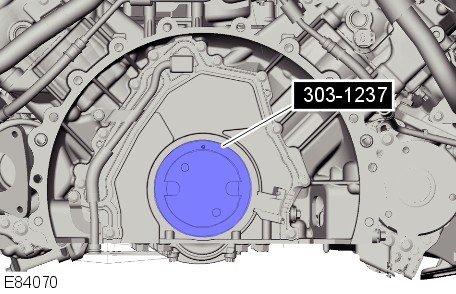

  2. E84070
    Install the CKP sensor ring to the crankshaft.
      • Clean the component mating faces.
      • Align the dowel and install the special tool to the crankshaft.
      • Tighten the 2 bolts.
      • Tighten the special tool nut, to install the CKP sensor ring to the crankshaft.
      • Remove the special tool.
  3. Install the CKP sensor.
      • Tighten the bolt to 5 Nm (4 lb.ft).
  4. Install the flexplate. For additional information, refer to: Flexplate (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
