2007.0 Range Rover Sport (LS), 303-07D

Glow Plug System - TDV8 3.6L Diesel

Glow Plugs (G940924)

REMOVAL AND INSTALLATION
  • 19.60.31
  • Heater/glow plugs - set - renew
  • TDV8
  • 2.60
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the RH exhaust gas recirculation (EGR) valve and cooler assembly. For additional information, refer to: Right Exhaust Gas Recirculation Valve (303-08D Engine Emission Control - TDV8 3.6L Diesel, Removal and Installation).
  3. Remove the LH EGR valve and cooler assembly. For additional information, refer to: Left Exhaust Gas Recirculation Valve (303-08D Engine Emission Control - TDV8 3.6L Diesel, Removal and Installation).
  4. NOTE:

    LH illustration shown, RH is similar.

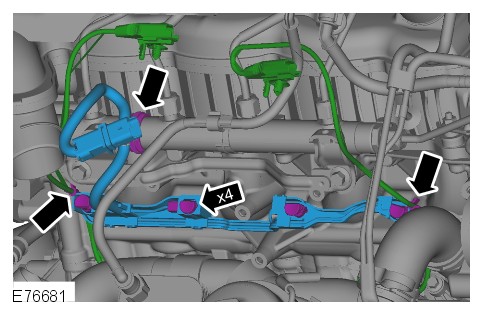

    E76681
    Remove the LH and RH glow plug wiring harnesses.
      • Release the LH and RH knock sensor (KS) wiring harnesses.
      • Disconnect the LH and RH wiring harnesses from the glow plugs.
  5. NOTE:

    LH illustration shown, RH is similar.

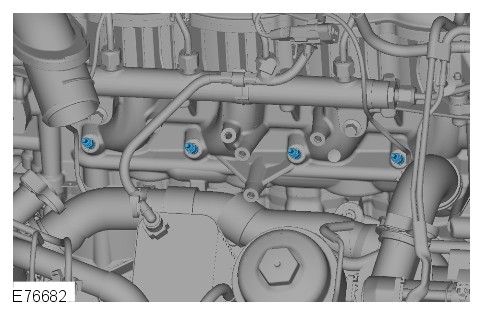

    E76682
    Remove the glow plugs.
Installation
  1. Install the glow plugs.
      • Tighten the glow plugs to 10 Nm (7 lb.ft).
  2. Install the LH and RH glow plug wiring harnesses.
      • Connect the LH and RH wiring harnesses to the glow plugs.
      • Secure the LH and RH KS wiring harnesses.
  3. Install the RH EGR valve and cooler assembly. For additional information, refer to: Right Exhaust Gas Recirculation Valve (303-08D Engine Emission Control - TDV8 3.6L Diesel, Removal and Installation).
  4. Install the LH EGR valve and cooler assembly. For additional information, refer to: Left Exhaust Gas Recirculation Valve (303-08D Engine Emission Control - TDV8 3.6L Diesel, Removal and Installation).
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
