Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-12D

Intake Air Distribution and Filtering - TDV8 3.6L Diesel

Air Cleaner Element (G940589)

REMOVAL AND INSTALLATION
  • 19.10.10
  • Air Filter Element - Renew
  • All Derivatives
  • 0.10
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

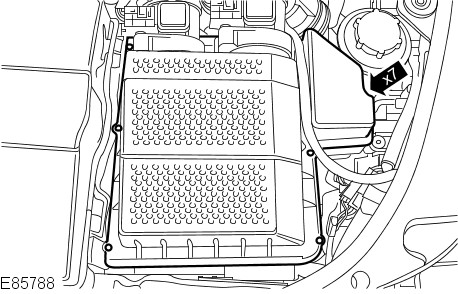

  2. E85788
    Release the air cleaner housing cover.
      • Fully loosen the 7 screws.

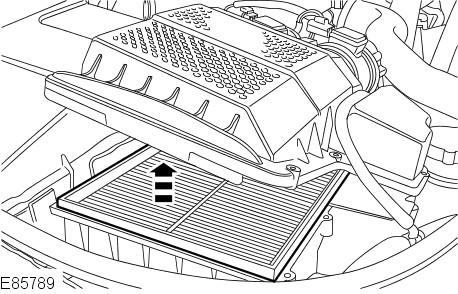

  3. E85789
    Remove the air cleaner element.
Installation
  1. Clean the base of the air cleaner.
  2. To install, reverse the removal procedure.
