Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-01D

Engine - TDV8 3.6L Diesel

Crankshaft Rear Seal (G939952)

IN-VEHICLE REPAIR
  • 12.21.20
  • Crankshaft Rear Oil Seal - Renew
  • TDV8
  • 12.30
  • USED WITHINS

Special Tool(s)

E81372

303-1237

Installer - Crankshaft Position (CKP) Sensor Ring

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the oil pan. For additional information, refer to: Oil Pan (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  4. E83845
    Remove the crankshaft position (CKP) sensor.
      • Remove the bolt.

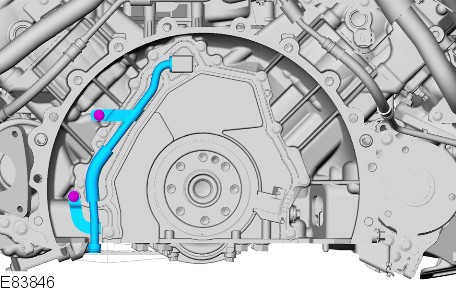

  5. E83846
    Remove the engine oil return line.
      • Remove the 2 bolts.
      • Remove and discard the 2 O-ring seals.
  6. CAUTION:

    Care must be taken to avoid damage to the crankshaft.

    E83921
    Remove and discard the CKP sensor ring.

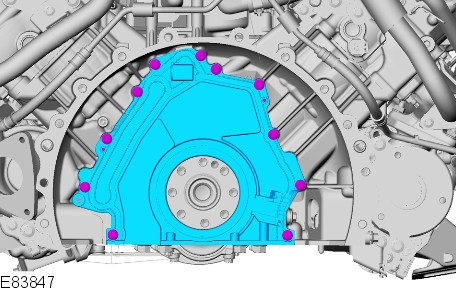

  7. E83847
    Remove and discard the rear crankshaft oil seal.
      • Remove the 11 bolts.
Installation
  1. Install a new rear crankshaft oil seal.
      • Clean the component mating faces.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  2. E83917
    Install a new CKP sensor ring to the special tool.
      • Wind the special tool nut back to the end of the thread.
      • Engage the CKP sensor ring to the locating pin.
  3. E84070
    Install the CKP sensor ring to the crankshaft.
      • Clean the component mating faces.
      • Align the dowel and install the special tool to the crankshaft.
      • Tighten the 2 bolts.
      • Tighten the special tool nut, to install the CKP sensor ring to the crankshaft.
      • Remove the special tool.
  4. NOTE:

    Lubricate the O-ring seals with clean engine oil.

    Install the engine oil return line.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  5. Install the CKP sensor.
      • Tighten the bolt to 5 Nm (4 lb.ft).
  6. Install the oil pan. For additional information, refer to: Oil Pan (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  7. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
