2007.0 Range Rover Sport (LS), 310-00

Fuel System - General Information

Fuel System Pressure Check - TDV8 3.6L Diesel (G939420)

GENERAL PROCEDURES
  • 19.50.13
  • Fuel system - pressure test
  • TDV8
  • 0.10
  • USED WITHINS

Special Tool(s)

E56747

310-116(LRT-19-006A)

Adapter - fuel pressure check

E66951

310-116-01

Gauge fuel pressure

WARNINGS:

  • Do not carry out any repairs to the fuel system with the engine running. The fuel pressure within the system can be as high as 1650 bar (23,931 lb-sq-in). Failure to follow this instruction may result in personal injury.

  • Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

  • If fuel contacts the eyes, flush the eyes with cold water or eyewash solution and seek immediate medical attention.

  • Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.

  • Wait at least 30 seconds after the engine stops before commencing any repair to the high-pressure fuel injection system. Failure to follow this instruction may result in personal injury.

  • Wash hands thoroughly after fuel handling, as prolonged contact may cause irritation. Should irritation develop, seek medical attention.

  • Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.

CAUTIONS:

  • Make sure that any protective clothing worn is clean and made from lint-free non-flocking material.

  • Make sure the workshop area in which the vehicle is being worked on is as clean and as dust free as possible. Foreign matter from work on clutches, brakes or from machining or welding operations can contaminate the fuel system and may result in later malfunction.

  1. Remove the engine cover. For additional information, refer to: Engine Cover - TDV8 3.6L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  2. Remove the Schraeder valve cap.

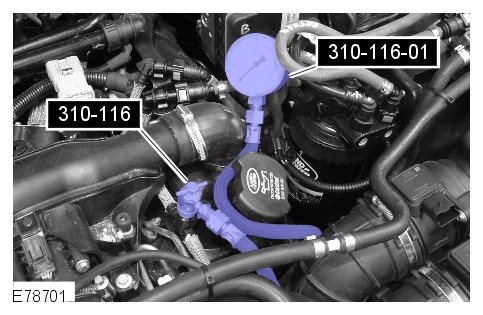

  3. E78701
    Install the special tool union to the Schraeder valve.
  4. Start and run the engine.
      • Open the valve on the special tool.
      • Note the fuel pressure readings.
  5. Switch the engine off.
  6. Close the valve on the special tool.
  7. Remove the special tool.
  8. Install the Schraeder valve cap.
  9. Install the engine cover. For additional information, refer to: Engine Cover - TDV8 3.6L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).
