Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-14D

Electronic Engine Controls - TDV8 3.6L Diesel

Left Knock Sensor (G939415)

REMOVAL AND INSTALLATION
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the LH exhaust gas recirculation (EGR) valve. For additional information, refer to: Left Exhaust Gas Recirculation Valve (303-08D Engine Emission Control - TDV8 3.6L Diesel, Removal and Installation).

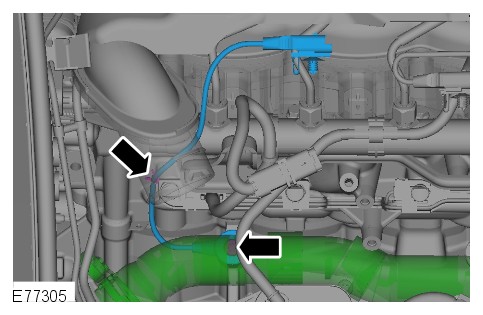

  3. E77305
    Remove the knock sensor (KS).
      • Release the KS wiring harness.
      • Reposition the coolant hose.
      • Remove the bolt.
Installation
  1. CAUTION:

    Make sure that the mating faces are clean and free of foreign material.

    To install, reverse the removal procedure.
      • Tighten the bolt to 20 Nm (15 lb.ft).
