2007.0 Range Rover Sport (LS), 303-14D

Electronic Engine Controls - TDV8 3.6L Diesel

Crankshaft Position Sensor (G939411)

REMOVAL AND INSTALLATION
  • 18.30.12
  • Crankshaft Position (CKP) Sensor - Renew
  • TDV8
  • 6.50
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. Remove the flexplate. For additional information, refer to: Flexplate (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).

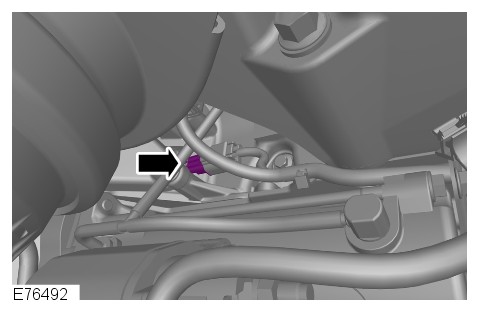

  4. E76492
    Disconnect the crankshaft position (CKP) sensor electrical connector.
  5. NOTE:

    The CKP sensor bolt should not be removed from the CKP sensor.

    E83845
    Remove the crankshaft position (CKP) sensor.
      • Fully loosen the bolt.
      • Release the CKP sensor blanking cover.
Installation
  1. CAUTION:

    Install the CKP sensor correctly into the housing. Failure to follow this instruction may result in damage to the CKP sensor.

    Install the CKP sensor.
      • Tighten the bolt to 5 Nm (4 lb.ft).
      • Secure the CKP sensor blanking cover.
  2. Connect the CKP sensor electrical connector.
  3. Install the flexplate. For additional information, refer to: Flexplate (303-01D Engine - TDV8 3.6L Diesel, In-vehicle Repair).
  4. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
