Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-14D

Electronic Engine Controls - TDV8 3.6L Diesel

Camshaft Position Sensor (G939410)

REMOVAL AND INSTALLATION
  • 18.30.24
  • Camshaft Position Sensor - Renew
  • TDV8
  • 1.00
  • USED WITHINS
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the engine cover. For additional information, refer to: Engine Cover - TDV8 3.6L Diesel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  3. Partially drain the cooling system. For additional information, refer to: Cooling System Partial Draining, Filling and Bleeding (303-03E Engine Cooling - TDV8 3.6L Diesel, General Procedures).
  4. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

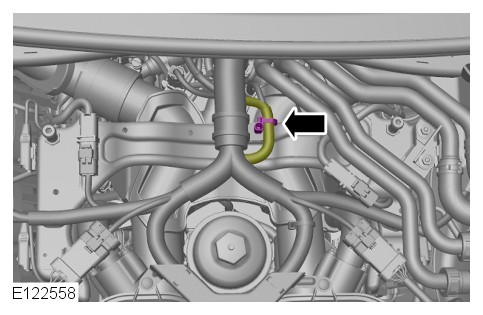

  5. E122558
    Release the wiring harness clip.

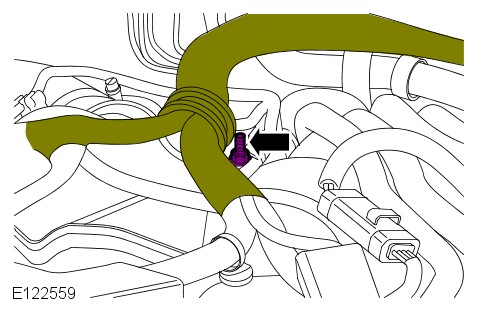

  6. E122559
    Release the engine wiring harness bracket.
      • Remove the bolt.
      • Reposition the engine wiring harness.
  7. CAUTION:

    Be prepared to collect escaping coolant.

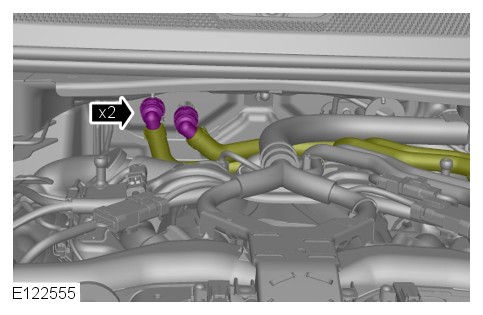

    E122555
    Release the 2 coolant hoses.
      • Position container to collect fluid loss.

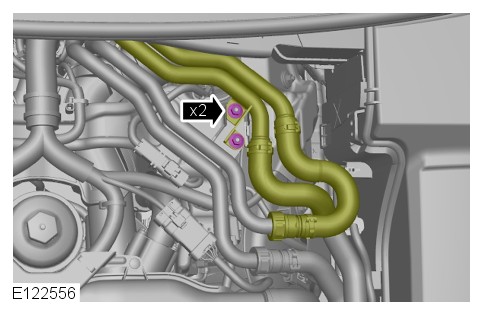

  8. E122556
    Release the coolant pipes.
      • Remove the 2 nuts.
  9. CAUTION:

    Note the fitted position of the component prior to removal.

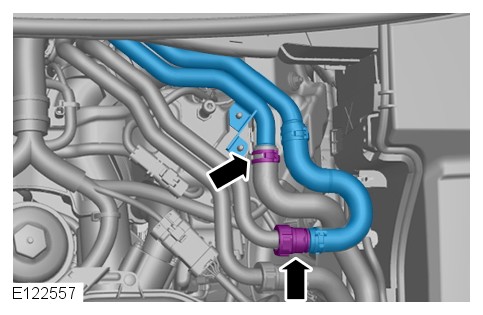

    E122557
    Remove the coolant pipe assembly.
      • Release the 2 coolant hoses.

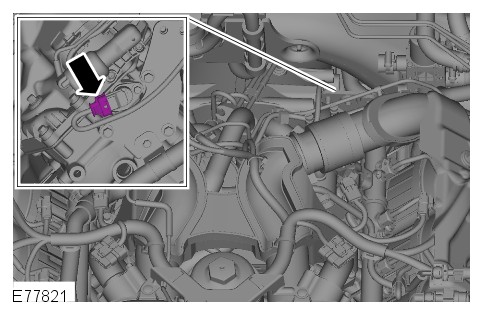

  10. E77821
    Disconnect the camshaft position (CMP) sensor electrical connector.

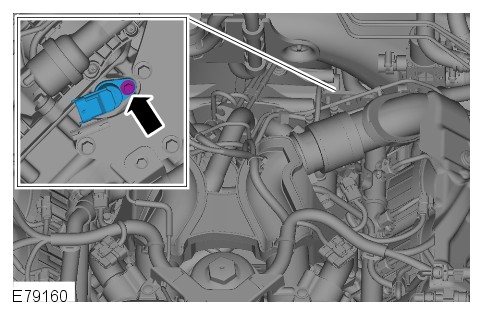

  11. E79160
    Remove the CMP sensor.
      • Remove the bolt.
      • Remove and discard the O-ring seal.
Installation
  1. E79160
    To install, reverse the removal procedure.
      • Install a new O-ring seal.
      • Tighten the bolt to 10 Nm (7 lb.ft).
