Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-04D

Fuel Charging and Controls - TDV8 3.6L Diesel

Throttle Body (G938575)

REMOVAL AND INSTALLATION
Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. Remove the engine cover.
  3. NOTE:

    Right-hand shown, left-hand similar.

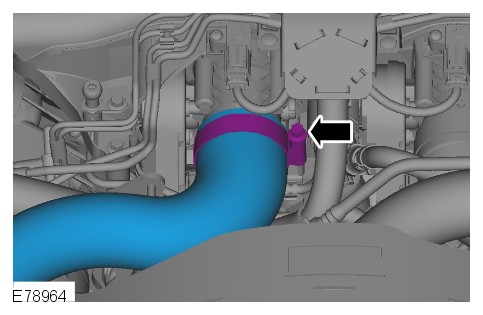

    E78964
    Disconnect the charge air cooler outlet hose.
      • Release the clip.
  4. NOTE:

    RH throttle body only.

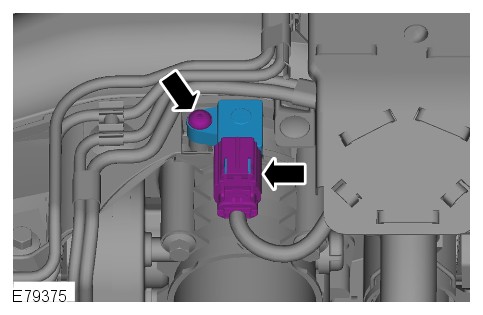

    E79375
    Remove the manifold absolute pressure and temperature (MAPT) sensor.
      • Disconnect the electrical connector.
      • Remove the screw.
  5. NOTE:

    Right-hand shown, left-hand similar.

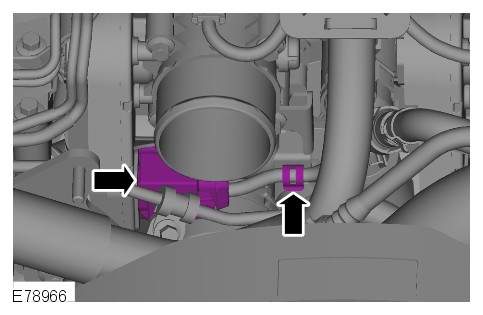

    E78966
    Disconnect the throttle body electrical connector.
  6. NOTE:

    Right-hand shown, left-hand similar.

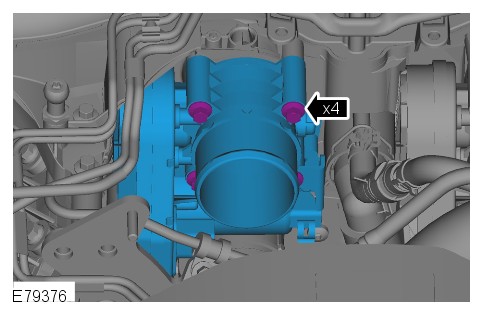

    E79376
    Remove the throttle body.
      • Remove the 4 bolts.
      • Remove and discard the O-ring seal.
Installation
  1. CAUTION:

    Make sure that the mating faces are clean and free of foreign material.

    Install the throttle body.
      • Install a new O-ring seal.
      • Tighten the bolts to 10 Nm (7 lb.ft).
  2. Connect the throttle body electrical connector.
  3. NOTE:

    RH throttle body only.

    Install the MAPT sensor.
      • Tighten the screw to 3 Nm (2 lb.ft).
      • Connect the electrical connector.
  4. Connect the charge air cooler outlet hose.
      • Tighten the clip to 5 Nm (3.7 lb.ft).
  5. Install the engine cover.
  6. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
