Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-07D

Glow Plug System - TDV8 3.6L Diesel (G938531)

DESCRIPTION AND OPERATION

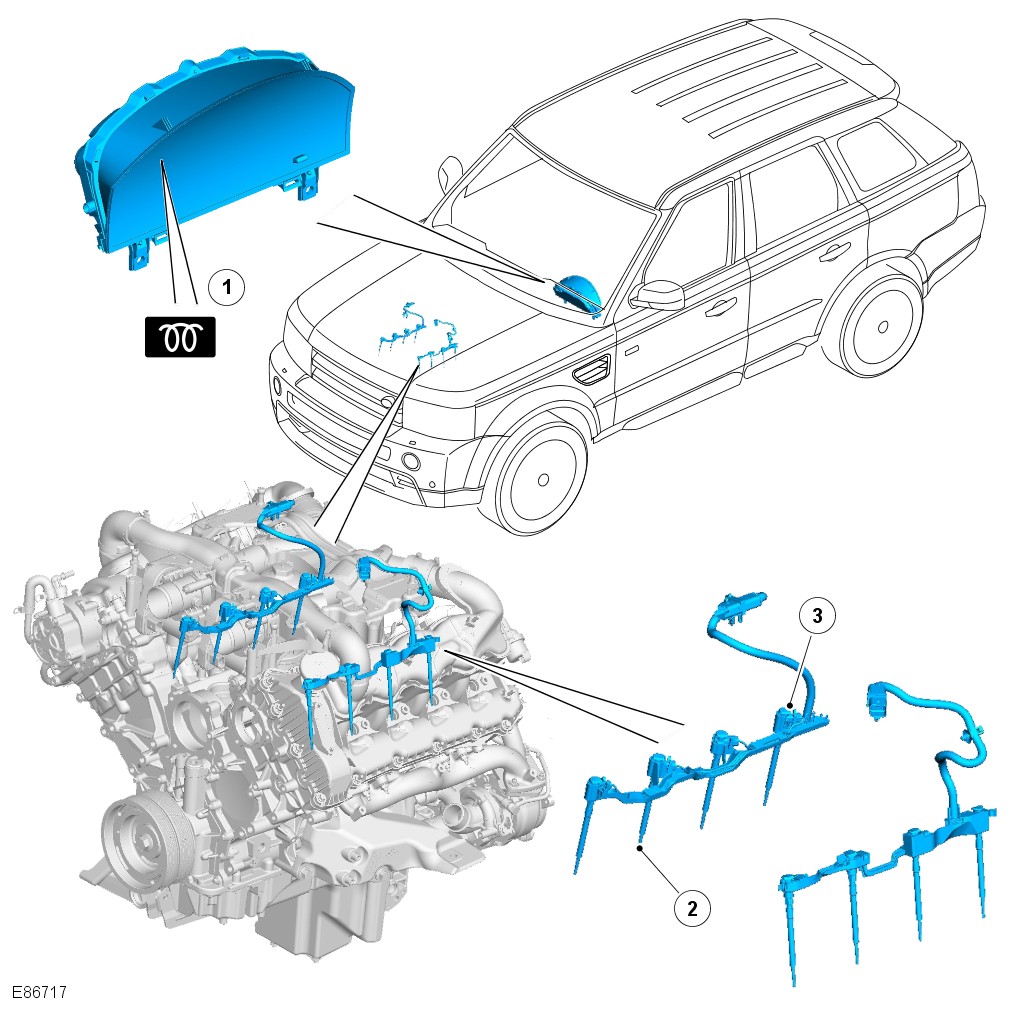

COMPONENT LOCATION
E86717

ItemDescription
1Glow plug warning lamp
2Glow plugs (8 off)
3Glow plug harness
OVERVIEW

The glow plug system has a glow plug installed in the inlet side of each cylinder. The glow plugs heat the combustion chambers before and during cranking, to aid cold starting, and after the engine starts to reduce emissions and engine noise when idling with a cold engine.

A glow plug wiring harness on each bank of glow plugs is connected to a separate relay and fusible link in the battery junction box (BJB). The individual glow plugs are grounded through their fixing in the cylinder head. Operation of the glow plug relays is controlled by the engine control module (ECM) , which also controls the illumination of the glow plug indicator in the instrument cluster.

Each glow plug is a tubular heating element which contains a spiral filament encased in magnesium oxide powder. At the tip of the tubular heating element is the heater coil. Behind the heater coil, and connected in series, is a control coil. The control coil regulates the current to the heater coil to safeguard against overheating.

SYSTEM OPERATION

There are three phases of glow plug heating: Pre heating, crank heating and post heating. The ECM determines the heating times from the engine coolant temperature (ECT). The lower the ECT, the longer the heating times.

When the ignition switch is turned to position II, the ECM calculates any required heating times and, if heating is required, energizes the glow plug relays in the BJB. When pre heating is required, the ECM also sends a message to the instrument cluster, on the high speed controller area network (CAN), to request illumination of the glow plug indicator. The glow plug indicator remains illuminated for the duration of the pre heating phase, or until the ignition switch is turned to the crank position, whichever occurs first. If required, the ECM keeps the glow plug relays energized during cranking and for the duration of any post heating phase.

The ECM monitors the drive circuit of the glow plug relays for plausibility of operation, continuity, and short and open circuits. If a fault is detected, the ECM stores a related fault code and permanently illuminates the glow plug indicator while the ignition switch is in position II.

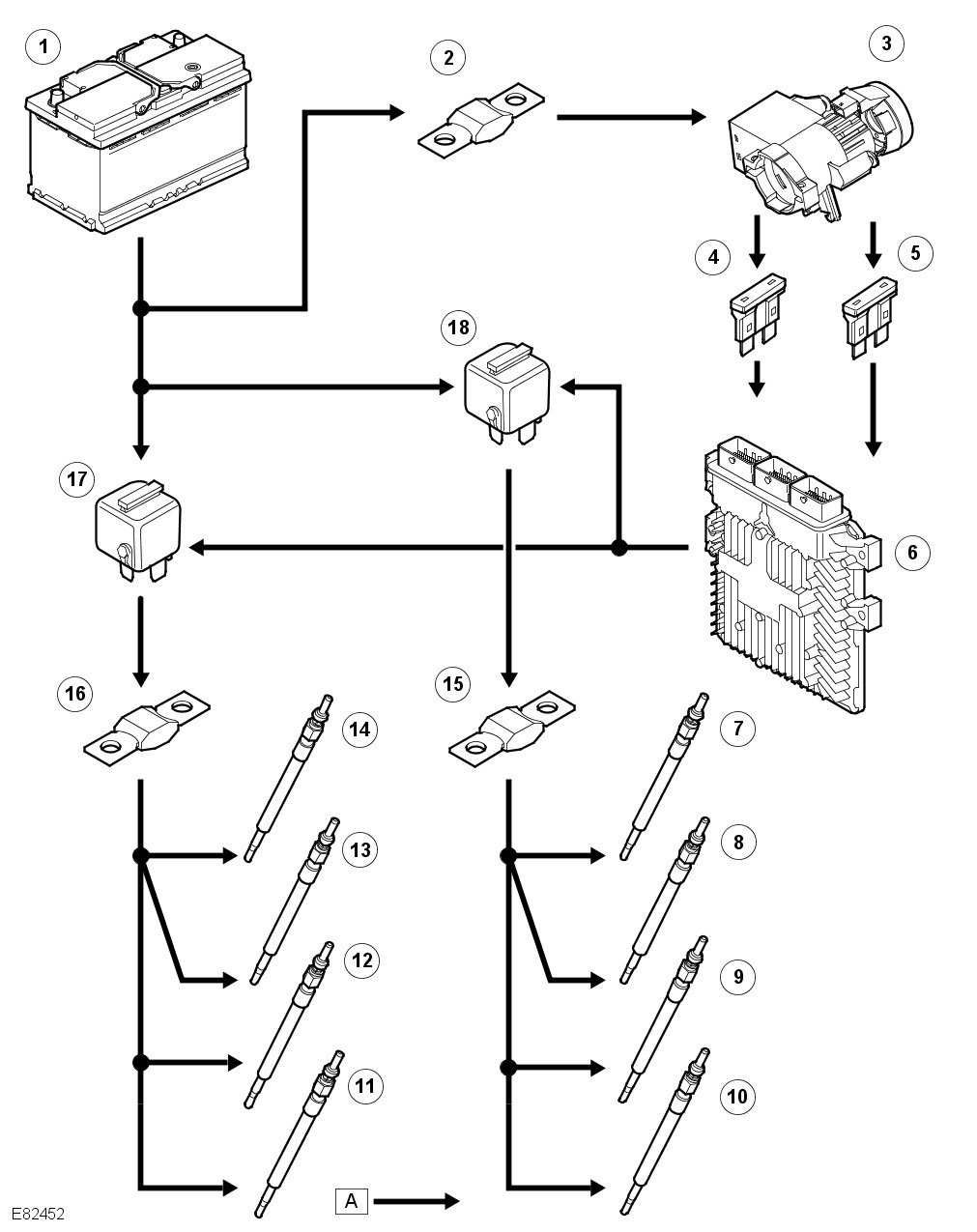

CONTROL DIAGRAM
NOTE:

A = Hardwired

E82452

ItemDescription
1Battery
2Fuse 9E
3Ignition switch
4Fuse
5Fuse
6ECM
7Glow plug
8Glow plug
9Glow plug
10Glow plug
11Glow plug
12Glow plug
13Glow plug
14Glow plug
15Fuse 1/2 G
16Fuse 3/4 G
17Glow plug relay
18Glow plug relay
