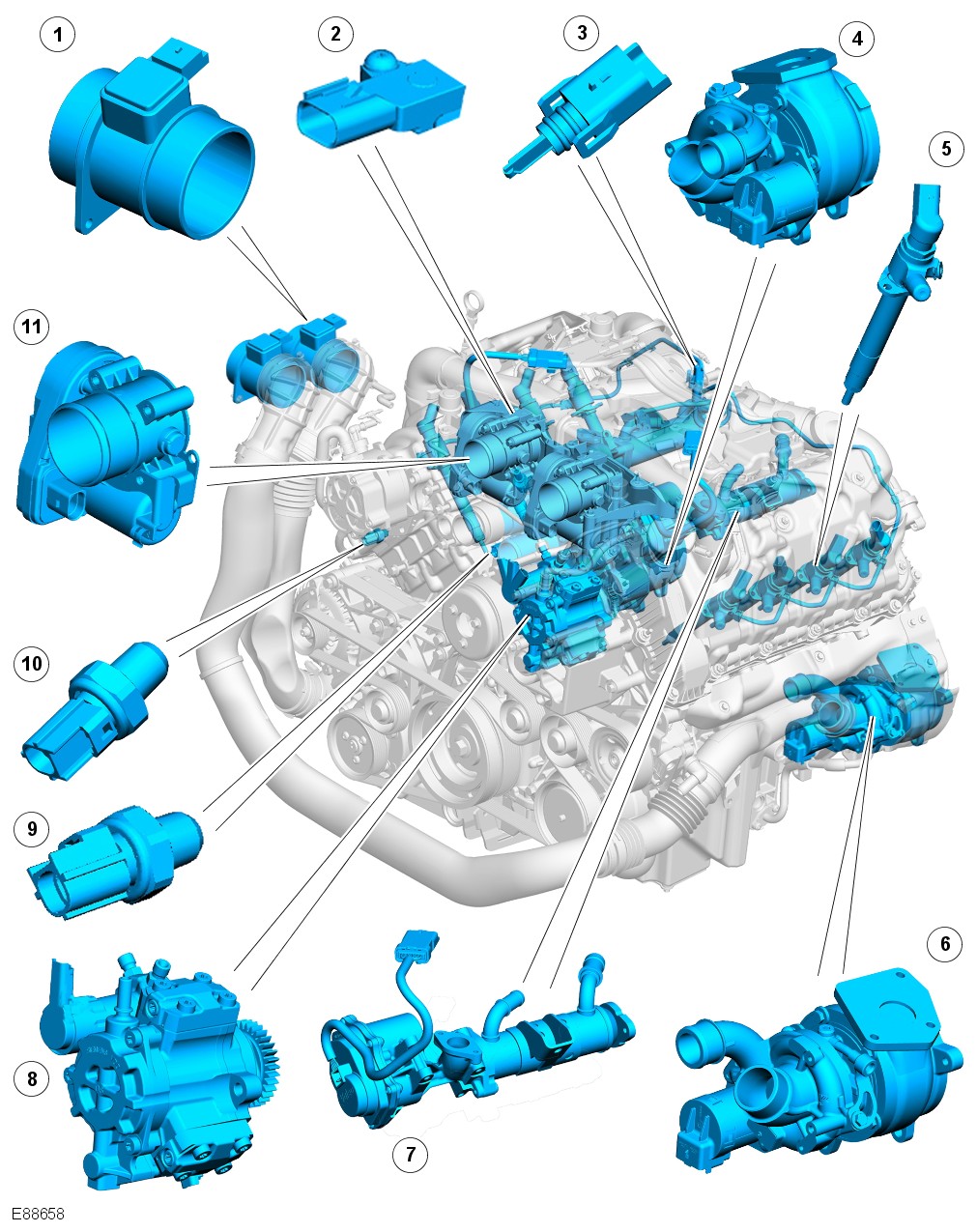

The TDV8 engine has an engine management system controlled by an ECM and is able to monitor, adapt and precisely control the fuel injection. The ECM uses multiple sensor inputs and precision control of actuators to achieve optimum performance during all driving conditions.

The ECM controls fuel delivery to all 8 cylinders via a Common Rail (CR) injection system. The CR system uses a fuel rail to accumulate highly pressurized fuel and feed the 8, electronically controlled injectors. The fuel rail is located in close proximity to the injectors, which assists in maintaining full system pressure at each injector at all times.

The ECM uses the drive by wire principle for acceleration control. There are no control cables or physical connections between the accelerator pedal and the engine. Accelerator pedal demand is communicated to the ECM by two potentiometers located in a throttle position sensor. The ECM uses the two signals to determine the position, rate of movement and direction of movement of the pedal. The ECM then uses this data, along with other engine information from other sensors, to achieve the optimum engine response.

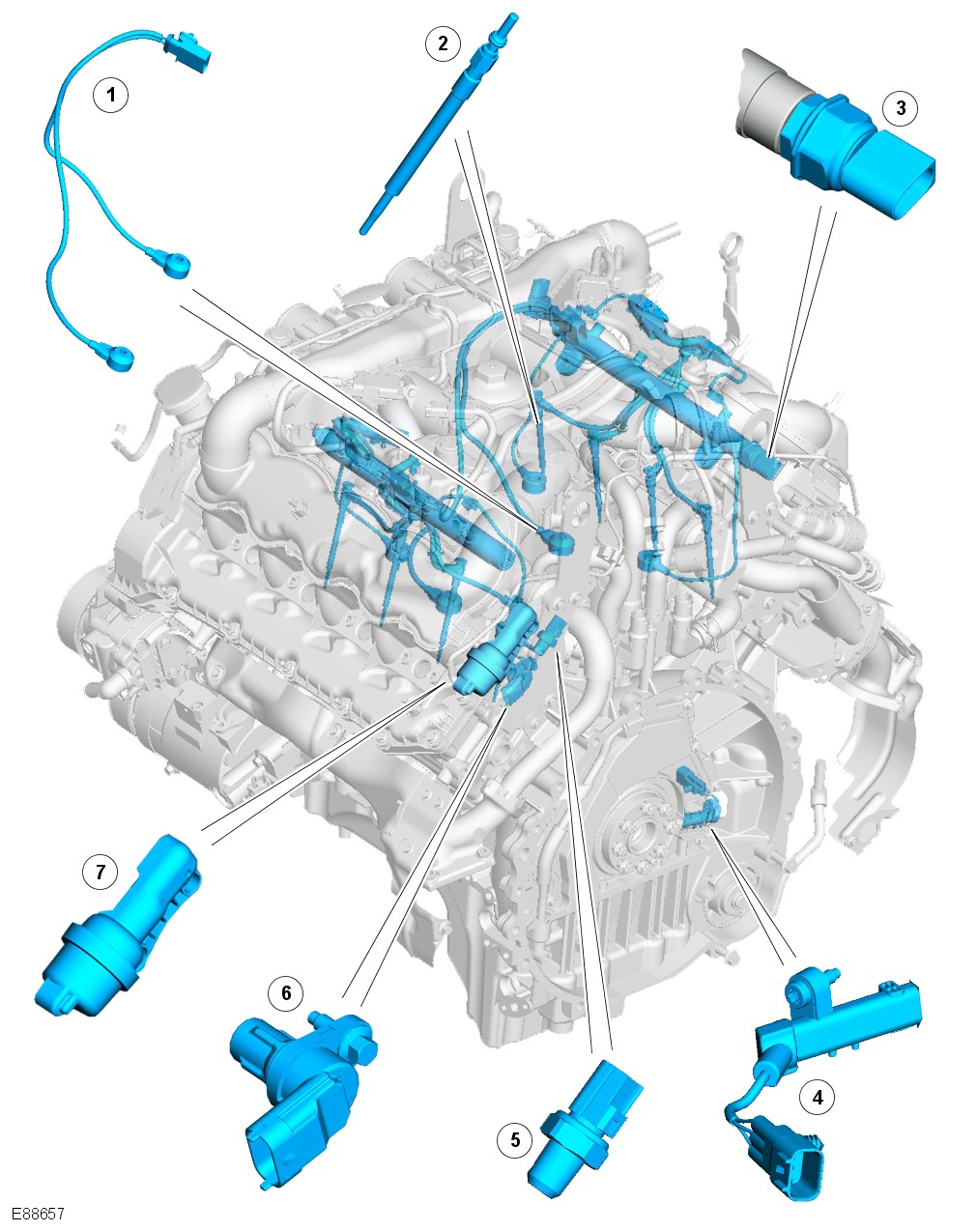

The ECM processes information from the following input sources:

• CKP sensor
• CMP sensor
• Manifold air temperature and pressure
• Coolant temperature
• Oil temperature
• Inlet air flow and temperature
• Fuel rail temperature

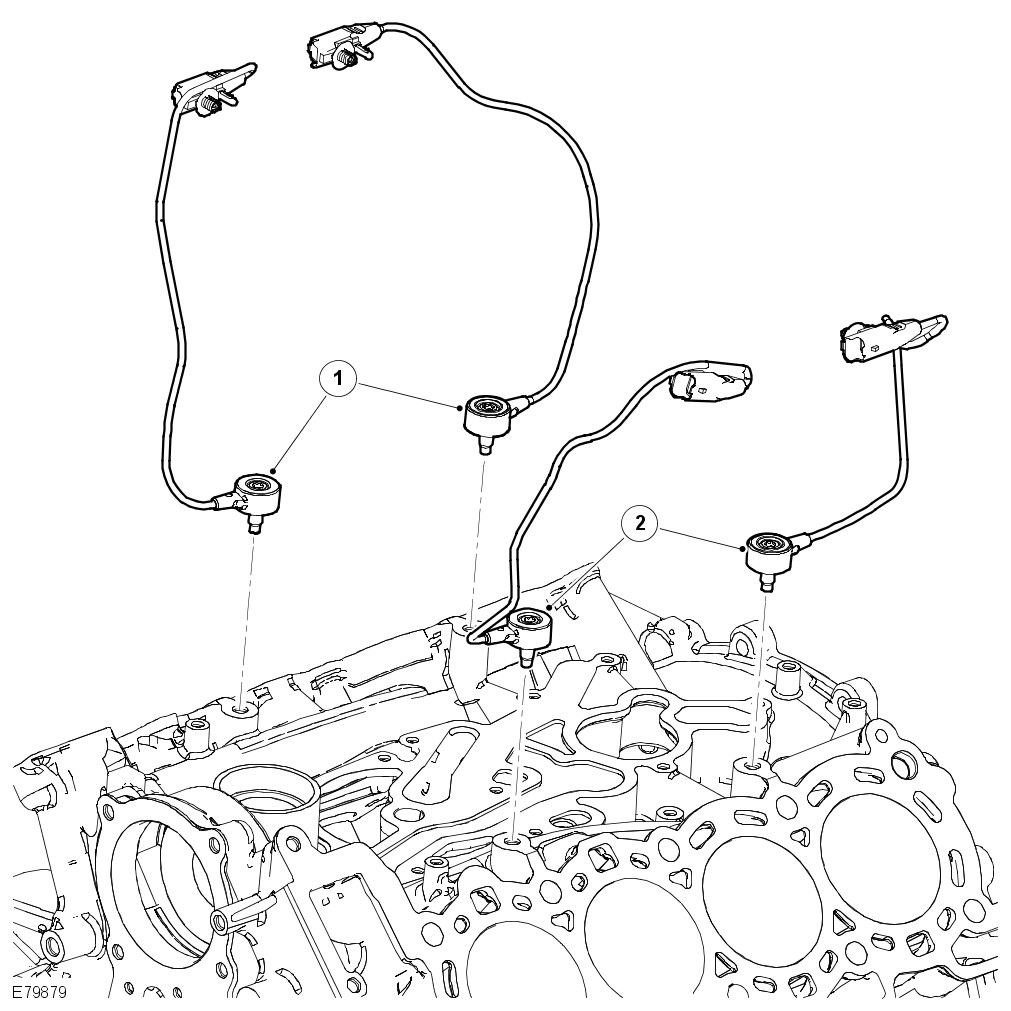

• Knock sensors (2 per cylinder bank)

The ECM outputs controlling signals to the following sensors and actuator:

• Fuel injectors
• Cooling fan solenoid
• Electronic Throttle
• Electronic vane controlled turbo
• Port deactivation
• Fuel pressure control valve
• Fuel volume control valve
• E-box fan
• Engine mounts
• Electronic EGR
• Glow plugs

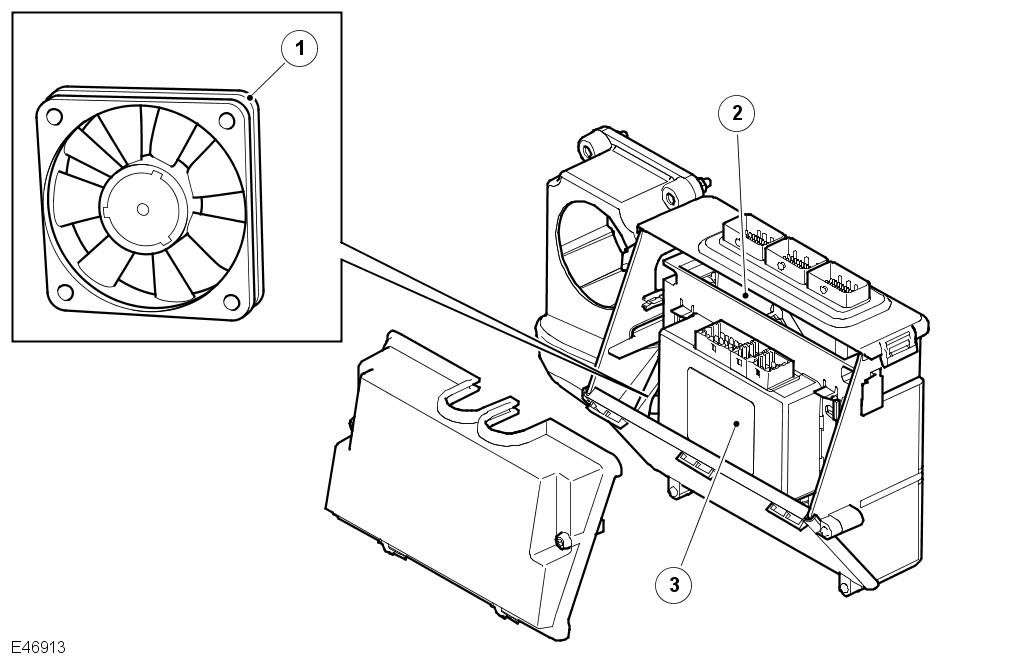

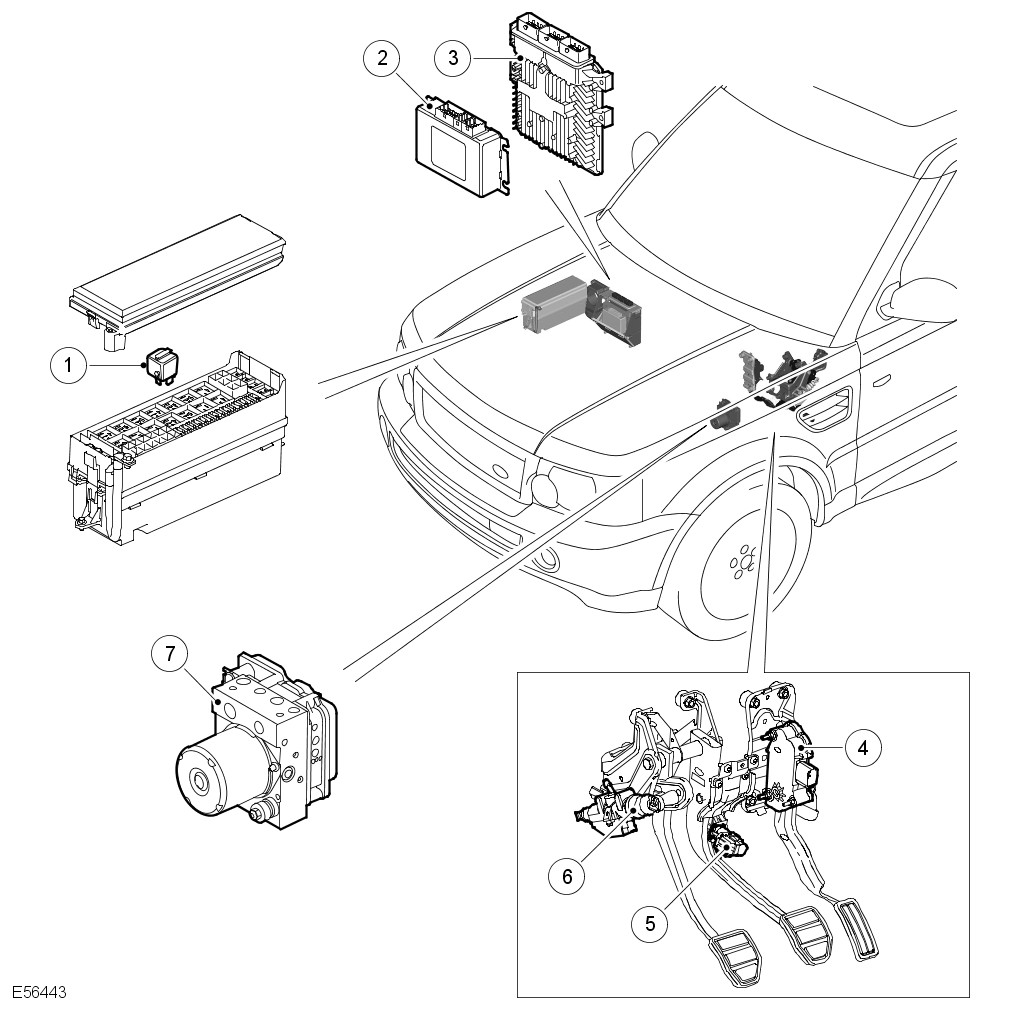

The ECM is located in the E-Box in the plenum area attached to the bulkhead. The E-Box is always on the opposite side to the hand of drive.

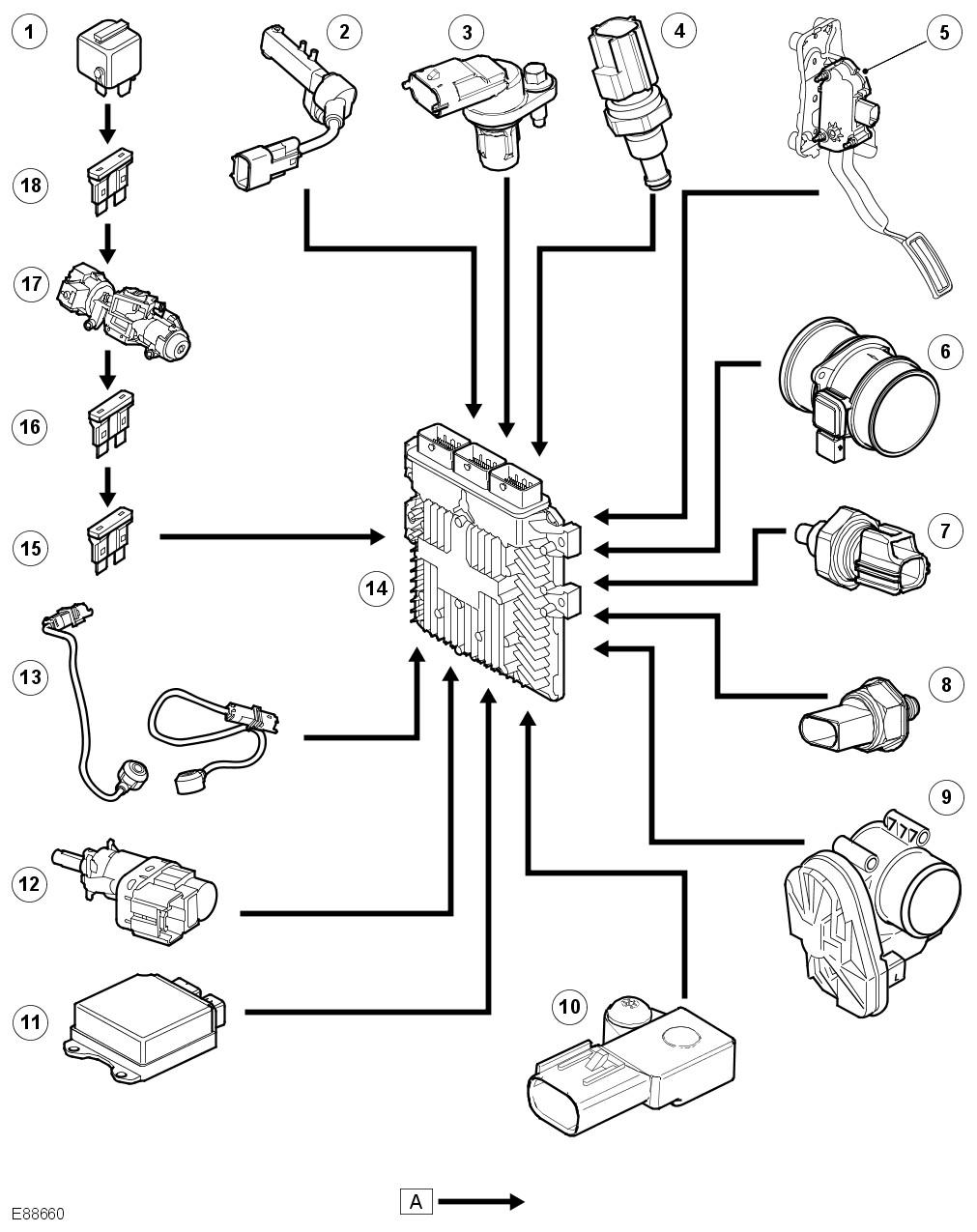

Inputs

The ECM has the following inputs:

• Engine Coolant Temperature
• Mass airflow (2 off)
• Stop lamp switch (via ABS module on controller area network (CAN)) and hardwired to the ECM
• Manifold Absolute Pressure
• APP sensor - Throttle Pedal Position 1
• APP sensor - Throttle Pedal Position 2
• Electronic throttle Position
• Viscous Fan Speed
• Crankshaft position (engine speed)
• Camshaft position
• Engine Oil Temperature
• Speed Control Switches (resistive ladders)
• Vehicle Speed (via CAN bus)
• Generator Monitor
• Restraints Control Module (RCM)
• Manifold Absolute Pressure and Intake Air Temperature (MAP/IAT)
• Knock sensors (4off)
• Fuel temperature and pressure
• Water in fuel sensor
• Boost air temperature
• Intake air temperature
• Park/neutral switch

Outputs

The ECM outputs to the following:

• Throttle actuators (2of)
• Fuel injectors (8 off)
• EGR Valves
• Electric cooling fan
• Fuel pump relay
• Starter relay
• Air conditioning condenser fan module
• EMS Main relay
• Viscous fan control

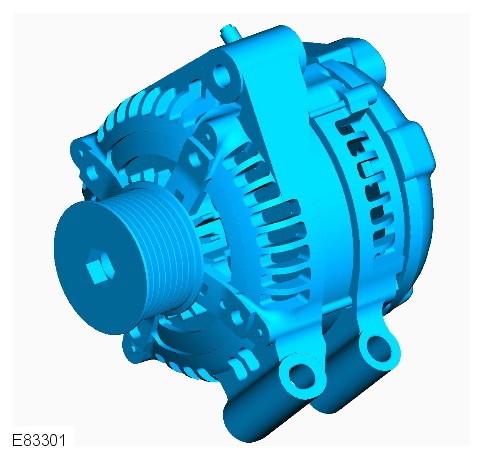

• Generator control
• E-box fan control
• Glow plugs
• Fuel volume control valve
• Fuel pressure control valve
• Active engine mounts
• Port deactivation control solenoid valve

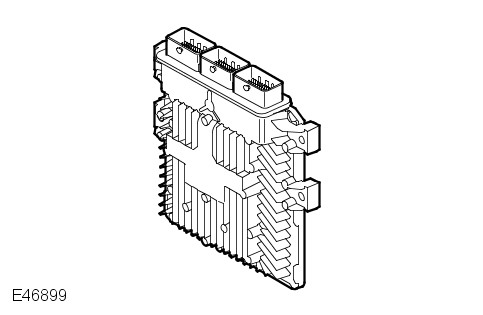

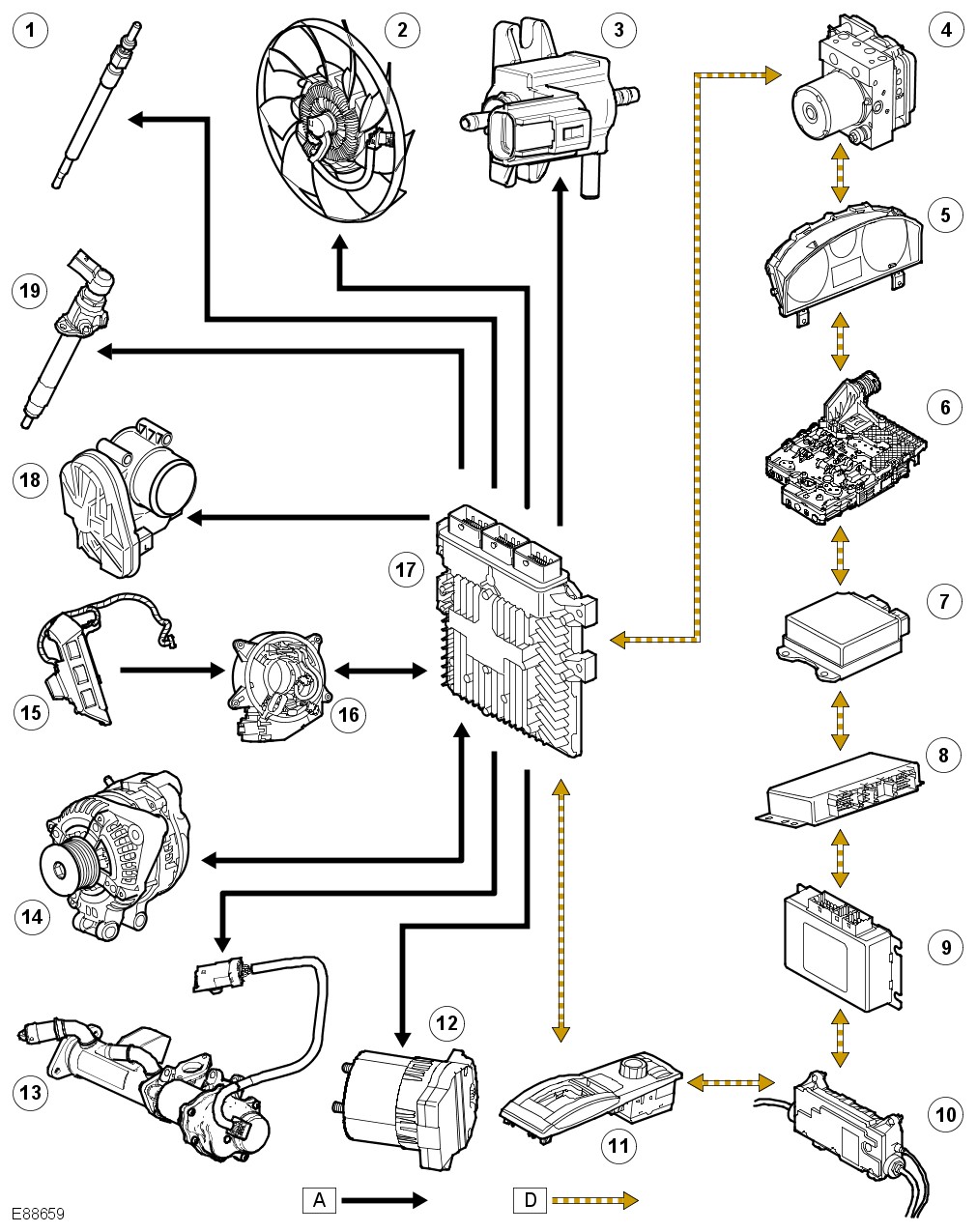

The ECM connected to the vehicle harnesses via three connectors. The ECM contains data processors and memory microchips. The output signals to the actuators are in the form of ground paths provided by driver circuits within the ECM. The ECM driver circuits produce heat during normal operation and dissipate this heat via the casing. The fan in the E-box assists with the cooling process by maintaining a constant temperature with the E-box. The E box fan is controlled by the ECM via its internal temperature sensor. The E-box draws air from the vehicle interior and receives additional cooled air via the air conditioning (A/C) system. Some sensors receive a regulated voltage supplied by the ECM. This avoids incorrect signals caused by voltage drop during cranking.

The ECM performs self diagnostic routines and stores fault codes in its memory. These fault codes and diagnostics can be accessed using a Land Rover approved diagnostic system. If the ECM is to be replaced, the new ECM is supplied 'blank' and must be configured to the vehicle using a Land Rover approved diagnostic system. A 'flash' Electronic Erasable Programmable Read Only Memory (EEPROM) allows the ECM to be externally configured, using a Land Rover approved diagnostic system, with market specific or new tune information up to 14 times. If a fifteenth update is required the ECM must be replaced. The current engine tune data can be accessed and read using a Land Rover approved diagnostic system.

When a new ECM is fitted, it must also be synchronized to the CJB using a Land Rover approved diagnostic system. ECM's cannot be 'swapped' between vehicles.

The ECM is connected to the engine sensors which allow it to monitor the engine operating conditions. The ECM processes these signals and decides the actions necessary to maintain optimum engine performance in terms of driveability, fuel efficiency and exhaust emissions. The memory of the ECM is programmed with instructions for how to control the engine, this known as the strategy. The memory also contains data in the form of maps which the ECM uses as a basis for fueling and emission control. By comparing the information from the sensors to the to the data in the maps, the ECM is able to calculate the various output requirements. The ECM contains an adaptive strategy which updates the system when components vary due to production tolerances or ageing.

The ECM receives a vehicle speed signal on a CAN bus connection from the ABS Module. Vehicle speed is an important input to the ECM strategies. The ABS derives the speed signal from the ABS wheel speed sensors. The frequency of this signal changes according to road speed. The ECM uses this signal to determine the following:

• How much to reduce engine torque during gear changes.
• When to permit speed control operation.
• To control the operation of the speed control system.
• Implementation of the idle strategy when the vehicle is stationary.

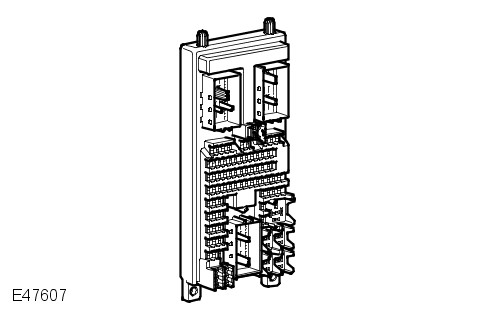

The Central Junction Box (CJB) receives information from related systems on the vehicle and passes a coded signal to the ECM to allow starting if all starting parameters have been met. The information is decoded by the ECM which will allow the engine to run if the information is correct.

The information is on a rolling code system and both the CJB and the ECM will require synchronisation if either component is renewed.

The ECM also protects the starter motor from inadvertent operation. The CJB receives an engine speed signal from the ECM via the instrument cluster. When the engine speed exceeds a predetermined value, the CJB prevents operation of the starter motor via an integral starter disable relay.

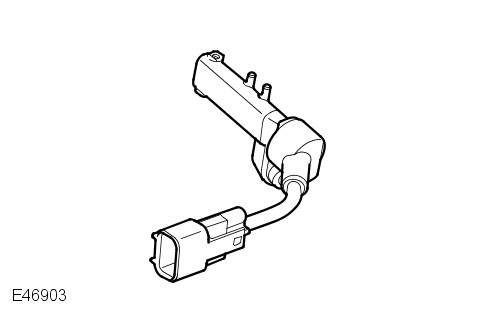

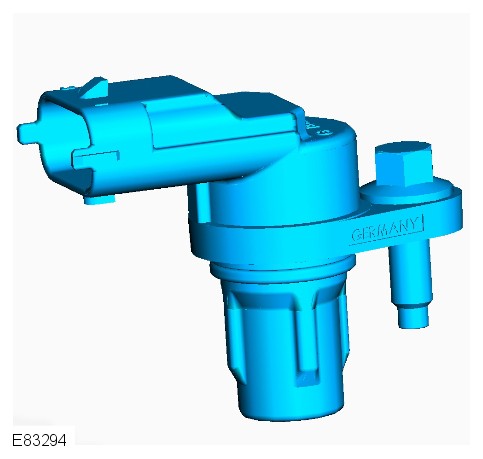

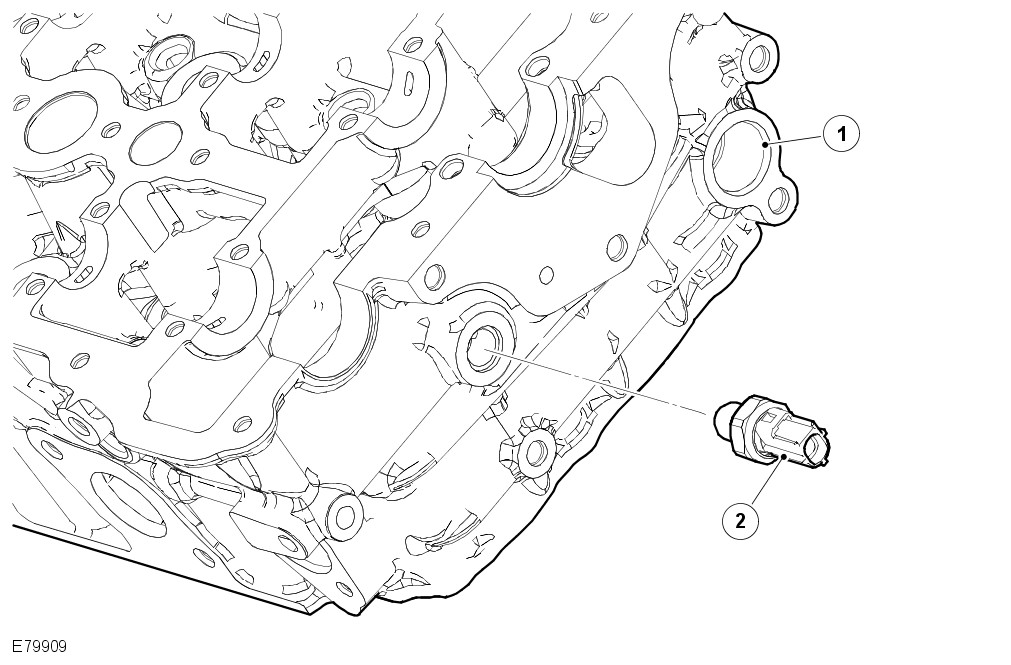

The CMP is located on the rear face of the left hand cylinder head. The sensor tip protrudes through the face to pick up on the reluctor behind the camshaft pulley. The CMP sensor is a Hall effect type sensor

The ECM uses the CMP sensor signal to determine if the piston in No. 1 cylinder is at injection TDC or exhaust TDC. Once this has been established, the ECM can then operate the correct injector to inject fuel into the cylinder when the piston is at injection TDC.

The sensor is a Hall effect sensor which used by the ECM at engine start-up to synchronize the ECM with the CKP sensor signal. The ECM does this by using the CMP sensor signal to identify number one cylinder to ensure the correct injector timing. Once the ECM has established the injector timing, the CMP sensor signal is no longer used.

The CMP sensor receives a 5V supply from the ECM. Two further connections to the ECM provide ground and signal output.

If a fault occurs, an error is registered in the ECM. Two types of failure can occur; camshaft signal frequency too high or total failure of the camshaft signal. The error recorded by the ECM can also relate to a total failure of the crankshaft signal or crankshaft signal dynamically implausible. Both components should be checked to determine the cause of the fault.

If a fault occurs with the CMP sensor when the engine is running, the engine will continue to run but the ECM will deactivate boost pressure control. Once the engine is switched off, the engine will crank but will not restart while the fault is present.

The CKP sensor is located at the rear of the engine block on the left hand side. The sensor tip is aligned with a magnetic trigger which is attached to the crankshaft. The reluctor is a press fit on the end of the crankshaft. The trigger wheel must be carefully aligned to the crankshaft to ensure correct timing. The sensor produces a square wave signal, the frequency of which is proportional to engine speed.

The ECM monitors the CKP sensor signal and can detect engine over-speed. The ECM counteracts engine over-speed by gradually fading out speed synchronized functions. The CKP sensor is a Hall effect sensor. The sensor measures the magnetic field variation induced by the magnetized trigger wheel.

The trigger wheel has two missing teeth representing 12º of crankshaft rotation. The two missing teeth provide a reference point for the angular position of the crankshaft.

When the space with the two missing teeth pass the sensor tip, a gap in the signal is produced which the ECM uses to determine the crankshaft position. The air gap between the sensor tip and the ring is important to ensure correct signals are output to the ECM. The recommended air gap between the CKP sensor and the trigger wheel is 0.4 mm- 1.5 mm.

The ECM uses the signal from the CKP sensor for the following functions:

• Synchronisation.
• Determine fuel injection timing.
• Enable the fuel pump relay circuit (after the priming period).
• Produce an engine speed signal which is broadcast on the CAN bus for use by other systems.

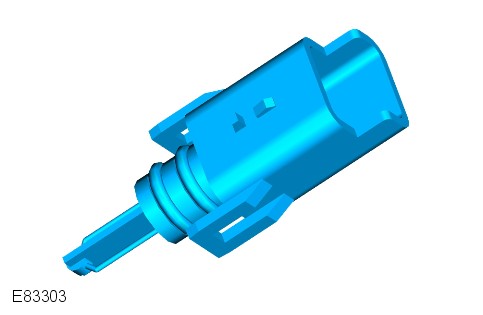

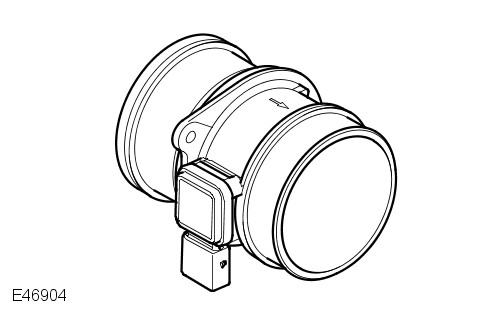

Two MAF/IAT sensors are located on the intake air duct directly after the air filter box. Each sensor is housed in a plastic molding which is connected between the intake manifold and the air intake pipe.

The MAF sensor works on the hot film principle. Two sensing elements are contained within a film. One element is maintained at ambient (air intake) temperature, e.g. 25°Celsius (77°F). The other element is heated to 200°Celsius (392°F) above the ambient temperature, e.g. 225°Celsius (437°F). Intake air entering the engine passes through the MAF sensor and has a cooling effect on the film. The ECM monitors the current required to maintain the 200°Celsius (392°F) differential between the two elements and uses the differential to provide a precise, non-linear, frequency based signal which equates to the volume of air being drawn into the engine.

The MAF sensor output is a digital signal proportional to the mass of the incoming air. The ECM uses this data, in conjunction with signals from other sensors and information from stored fueling maps, to determine the precise fuel quantity to be injected into the cylinders. The signal is also used as a feedback signal for the EGR system.

The IAT sensor incorporates a Negative Temperature Coefficient (NTC) thermistor in a voltage divider circuit. The NTC thermistor works on the principle of decreasing resistance in the sensor as the temperature of the intake air increases. As the thermistor allows more current to pass to ground, the voltage sensed by the ECM decreases. The change in voltage is proportional to the temperature change of the intake air. Using the voltage output from the IAT sensor, the ECM can correct the fueling map for intake air temperature. The correction is an important requirement because hot air contains less oxygen than cold air for any given volume.

The MAF sensor receives a 12V supply from the Battery Junction Box (BJB) and a ground connection via the ECM. Two further connections to the ECM provide a MAF signal and IAT signal.

The IAT sensor receives a 5V reference voltage from the ECM and shares a ground with the MAF sensor. The signal output from the IAT sensor is calculated by the ECM by monitoring changes in the supplied reference voltage to the IAT sensor voltage divider circuit.

The ECM checks the calculated air mass against the engine speed. If the calculated air mass is not plausible, the ECM uses a default air mass figure which is derived from the average engine speed compared to a stored characteristic map. The air mass value will be corrected using values for boost pressure, atmospheric pressure and air temperature.

If the MAF sensor fails the ECM implements the default strategy based on engine speed. In the event of a MAF sensor signal failure, any of the following symptoms may be observed:

• Difficult starting
• Engine stalls after starting
• Delayed engine response
• Emission control inoperative
• Idle speed control inoperative
• Reduced engine performance.

If the IAT sensor fails the ECM uses a default intake air temperature of -5°Celsius (23°F). In the event of an IAT sensor failure, any of the following symptoms may be observed:

• Over fueling, resulting black smoke emitting from the exhaust.
• Idle speed control inoperative.

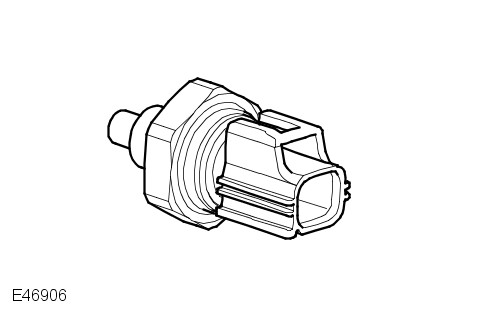

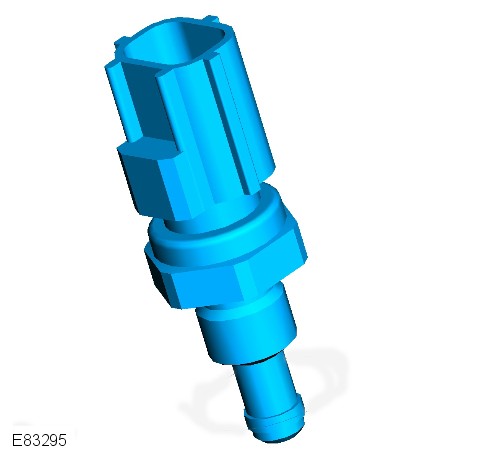

The engine coolant temperature sensor is located in the top hose at the coolant manifold junction. The ECT sensor provides the ECM and the instrument cluster with engine coolant temperature status.

The ECM uses the temperature information for the following functions:

• Fueling calculations
• Limit engine operation if engine coolant temperature becomes too high
• Cooling fan operation
• Glow plug activation time.

The instrument cluster uses the temperature information for temperature gauge operation. The engine coolant temperature signal is also transmitted on the CAN bus by the instrument cluster for use by other systems.

The ECM circuit for the ECT sensor consists of an internal voltage divider circuit which incorporates an NTC thermistor. As the coolant temperature rises the resistance through the sensor decreases and vice versa. The output from the sensor is the change in voltage as the thermistor allows more current to pass to earth relative to the temperature of the coolant.

The ECM compares the signal voltage to stored values and adjusts fuel delivery to ensure optimum driveability at all times. The engine will require more fuel when it is cold to overcome fuel condensing on the cold metal surfaces inside the combustion chamber. To achieve a richer air/fuel ratio, the ECM extends the injector opening time. As the engine warms up the air/fuel ratio is leaned off.

The input to the sensor is a 5V reference voltage supplied from the voltage divider circuit within the ECM. The ground from the sensor is also connected to the ECM which measures the returned current and calculates a resistance figure for the sensor which relates to the coolant temperature.

The following table shows engine coolant temperature values and the corresponding sensor resistance and voltage values.

Coolant Temperature Sensor Response

If the ECT sensor fails, the following symptoms may be observed:

• Difficult cold start.
• Difficult hot start.
• Engine performance compromised.
• Temperature gauge inoperative or inaccurate reading.

In the event of ECT sensor signal failure, the ECM applies a default value of 80°Celsius (176°F) coolant temperature for Fueling purposes. The ECM will also permanently operate the cooling fan at all times when the ignition is switched on, to protect the engine from overheating.

The oil pressure switch, located in the front of the RH cylinder head, connects a ground input to the instrument cluster when oil pressure is present. The switch operates at a pressure of 0.15 to 0.41 bar (2.2 to 5.9 lbf/in²).

The oil temperature sensor is located in the engine oil pan. The temperature sensor is a negative temperature coefficient (NTC) type which operates in the -30 Degrees Celsius to +150 Degrees Celsius temperature range.

Oil Temperature Sensor Response

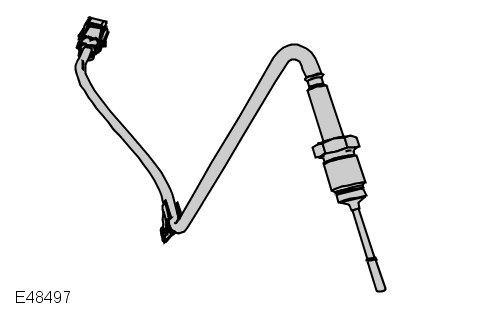

The fuel rail temperature sensor is located on the LP return line at the front of the engine.

The sensor is an NTC sensor which is connected to the ECM by two wires. The ECM fuel temperature sensor circuit consists of an internal voltage divider circuit which incorporates an NTC thermistor. As the fuel temperature rises the resistance through the sensor decreases. The output from the sensor is the change in voltage as the thermistor allows more current to pass to earth relative to the temperature of the fuel.

The ECM monitors the fuel temperature constantly. If the fuel temperature exceeds 85°Celsius (185°F), the ECM invokes an engine 'derate' strategy. This reduces the amount of fuel delivered to the injectors in order to allow the fuel to cool. When this occurs, the driver may notice a loss of performance.

Further fuel cooling is available by a bi-metallic valve diverting fuel through the fuel cooler when the fuel reaches a predetermined temperature. In hot climate markets, an electrically operated cooling fan is positioned in the air intake ducting to the fuel cooler. This is controlled by a thermostatic switch, which switches the fan on and off when the fuel reaches a predetermined temperature.

The wires to the fuel sensor are monitored by the ECM for short and open circuit. The ECM also monitors the 5V supply. If a failure occurs a fault is recorded in the ECM memory and the ECM uses a default fuel pressure value.

If the ECM registers an 'out of range' deviation between the pressure signal from the sensor and the pre-programmed 'set point' a fault is stored in the ECM memory. Depending on the extent of the deviation, the ECM will reduce the injection quantity, stop the engine immediately or prevent further engine starting.

Three glow plugs are located in each of the cylinder heads, on the inlet side. The glow plugs and the glow plug relay are a vital part of the engine starting strategy. The glow plugs heat the air inside the cylinder during cold starts to assist combustion. The use of glow plugs helps reduce the amount of additional fuel required on start-up, and consequently reduces the emission of black smoke. The use of glow plugs also reduces the amount of injection advance required, which reduces engine noise, particularly when idling with a cold engine.

There are three phases of glow plug activity:

• Pre-heat
• During crank
• Post heat

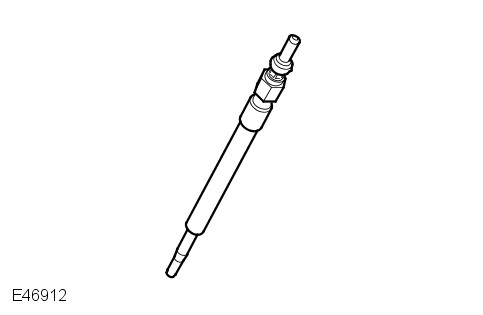

The main part of the glow plug is a tubular heating element which protrudes into the combustion chamber of the engine. The heating element contains a spiral filament encased in magnesium oxide powder. At the tip of the tubular heating element is the heater coil. Behind the heater coil, and connected in series, is a control coil. The control coil regulates the heater coil to ensure that it does not overheat.

Pre-heat is the length of time the glow plugs operate prior to engine cranking. The ECM controls the pre-heat time based on ECT sensor output and battery voltage. If the ECT sensor fails, the ECM will use the IAT sensor value as a default value. The pre-heat duration is extended if the coolant temperature is low and the battery is not fully charged.

Post heat is the length of time the glow plugs operate after the engine starts. The ECM controls the post heating time based on ECT sensor output. The post heat phase reduces engine noise, improves idle quality and reduces hydrocarbon emissions.

When the ignition is switched on to position II, the glow plug warning lamp illuminates and the instrument cluster displays 'PREHEATING' in the message center. The glow-lamp is activated separately from the glow-plugs, so is not illuminated during or after start. The plugs can still be ON when the lamp is off in these two phases.

In the event of glow plug failure, the engine may be difficult to start and excessive smoke emissions may be observed after starting.

The glow plug warning lamp also serves a second function within the EDC system. If a major EDC system fault occurs, the glow plug warning lamp will be illuminated permanently and a message generated in the instrument cluster. The driver must seek attention to the engine management system at a Land Rover dealer as soon as possible.

Two manifold absolute pressure and temperature (MAPT) sensors are located post turbo after the electric throttle valves. The sensors provide a voltage signal to the ECM relative to the intake manifold pressure. The MAPT sensor has a three pin connector which is connected to the ECM and provides a 5V reference supply from the ECM, a signal input to the ECM and a ground for the sensor.

The MAPT sensors use diaphragm transducer to measure pressure. The ECM uses the boost pressure sensor signal for the following functions:

• Maintain manifold boost pressure.
• Reduce exhaust smoke emissions when driving at high altitude.
• Control of the EGR system.
• Control of the vacuum control module.

If the MAPT sensors fail, the ECM uses a default pressure of 1013 mbar (14 lbf/in²). In the event of a MAPT sensor failure, the following symptoms may be observed:

• Altitude compensation inoperative (black smoke emitted from the exhaust).
• Active boost control inoperative.

Boost control is achieved by the use of a direct drive electric actuator. The actuator is attached to the side of the turbo unit and is connected with the control mechanism via a linkage. The electric actuator works on the torque motor principal and has integrated control module.

The electric actuator moves the control vanes through an 60 degree stroke and has the capability to learn its own maximum stroke positions. The electric actuator is controlled via pulse width modulation (PWM) signals from the ECM.

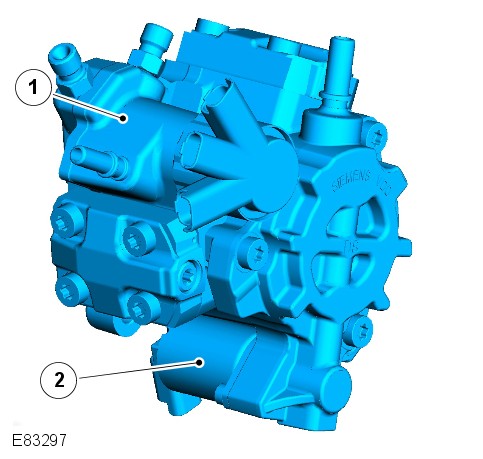

The fuel pressure control valve is incorporated into the high pressure fuel pump. The control valve regulates the fuel pressure within the fuel rail and is controlled by the ECM. The control valve is a PWM controlled solenoid valve.

When the solenoid is de-energized, an internal spring holds an internal valve closed. At fuel pressure of 100 bar (1450 lbf/in²) or higher, the force of the spring is overcome, opening the valve and allowing fuel pressure to decay into the fuel return pipe. When the pressure in the fuel rail decays to approximately 100 bar (1450 lbf/in²) or less, the spring force overcomes the fuel pressure and closes the valve. When the ECM energizes the solenoid, the valve is closed allowing the fuel pressure to build. The pressure in the fuel rail in this condition can reach approximately 1300 bar (18854 lbf/in²).

The ECM controls the fuel rail pressure by operating the control valve solenoid using a PWM signal. By varying the duty cycle of the PWM signal, the ECM can accurately control the fuel rail pressure and hence the pressure delivered to the injectors according to engine load. This is achieved by the control valve allowing a greater or lesser volume of fuel to pass from the high pressure side of the pump to the un-pressurized fuel return line, regulating the pressure on the high pressure side.

The fuel rail pressure control valve receives a PWM signal from the ECM of between 0 and 12V. The ECM controls the operation of the control valve using the following information to determine the required fuel pressure:

• Fuel rail pressure
• Engine load
• Accelerator pedal position
• Engine temperature
• Engine speed.

In the event of a total failure of the fuel rail pressure control valve, the engine will not start.

In the event of a partial failure of the fuel rail pressure control valve, the ECM will activate the solenoid with the minimum duty cycle which results in the injection quantity being limited.

The fuel rail volume control valve is incorporated into the high pressure fuel pump. The VCV spills unwanted fuel back to the tank (or LP system) or forwards it to the PCV. This avoids unused fuel being pressurized by the HP stage of the pump, only to be spilt back to LP by the PCV wasting energy and heating the fuel.

There are 8 electronic fuel injectors (one for each cylinder) located in a central position between the four valves of each cylinder. The ECM divides the injectors into two banks of 4 cylinders.

Each injector is supplied with pressurized fuel from the fuel rail and delivers finely atomized fuel directly into the combustion chambers. Each injector is individually controlled by the ECM which operates each injector in the firing order and controls the injector opening period via PWM signals. Each injector receives a 12V supply from the ECM and, using programmed injection/timing maps and sensor signals, determines the precise pilot and main injector timing for each cylinder. If battery voltage falls to between 6 and 9V, fuel injector operation is restricted, affecting emissions, engine speed range and idle speed. In the event of a failure of a fuel injector, the following symptoms may be observed:

• Engine misfire
• Idle irregular
• Reduced engine performance
• Reduced fuel economy
• Difficult starting
• Increased smoke emissions.

The ECM monitors the wires for each injector for short circuit and open circuit, each injector and the transient current within the ECM. If a defect is found, an error is registered in the ECM for the failed injector.

The EGR system comprises:

• EGR modulator x 2
• EGR cooler x 2
• Associated connecting pipes

The EGR modulator and cooler are a combined unit.

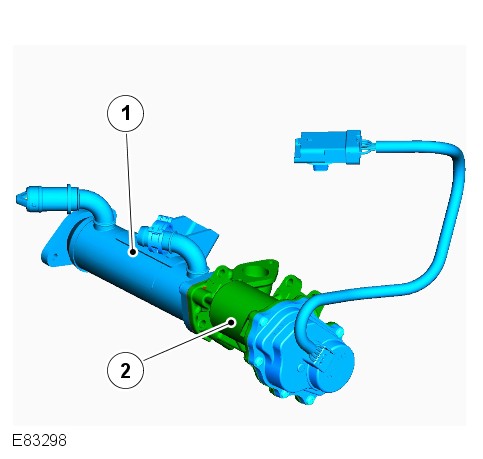

The combined EGR modulator and cooler is located under each cylinder bank, between the exhaust manifold and the cylinder head. The cooler side of the EGR is connected to the vehicle cooling system, via hoses. The inlet exhaust side is connected directly into the exhaust manifolds on each side. The exhaust gas passes through the cooler and is expelled via the actuator and a metal pipe into the throttle housing. The EGR modulator is a solenoid operated valve which is controlled by the ECM. The ECM uses the EGR modulator to control the amount of exhaust gas being re-circulated in order to reduce exhaust emissions and combustion noise. The EGR is enabled when the engine is at normal operating temperature and under cruising conditions.

The EGR modulator receives a 12V supply from the ECM and is controlled using a PWM signal. The PWM duty signal of the solenoid ground is varied to determine the precise amount of exhaust gas delivered to the cylinders.

The modulators are operated through their full range at each engine shut down, to clear any carbon deposits that may have built up whilst the engine was running

In the event of a failure of the EGR modulator, the EGR function will become inoperative. The ECM can monitor the EGR modulator solenoid for short circuits and store fault codes in the event of failure. The modulator can also be activated for testing using a Land Rover approved diagnostic system.

The cylinder head layout of the engine has been designed to optimize levels of swirl within the combustion chamber across the engine speed range. If there is too much swirl, then as fuel is injected, the high velocity of the swirling gases prevent the jets of atomized fuel reaching the edges of the combustion chamber. This poor distribution of fuel within the combustion chamber causes increased emissions.

The engine features an intake port deactivation system to enhance the fuel distribution around the combustion chamber.

Each cylinder features two intake ports; one is designed as a helical 'swirl' port, configured to create the optimum swirl for good combustion whilst the other is designed as a 'filling-port', capable of supplying high volumes of air without disturbing in-cylinder swirl.

The helical port is open under all operating conditions. At low loads the filling port is closed off raising gas velocity through the helical port to increase in-cylinder swirl to the required rate. To avoid any risk of high gas flow creating excessive swirl, the filling port is then opened under high gas-flow conditions to help maintain consistent optimum swirl across the engine's operating range.

Port deactivation is controlled by butterfly valves operating within the intake manifold. These are controlled by the ECM via a vacuum operated actuator mounted on the back of the intake manifold for each cylinder bank.

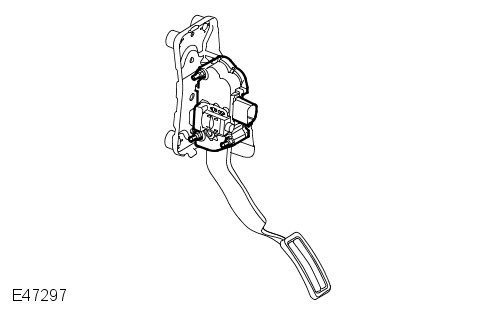

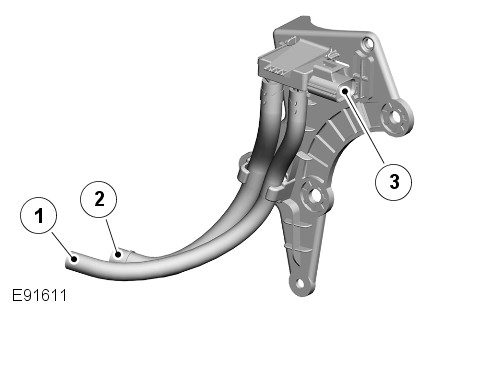

The APP sensor is incorporated into the pedal assembly. The sensor is a twin track rotary potentiometer type.

The APP sensor is located in plastic housing which is integral with the throttle pedal. The housing is injection molded and provides location for the APP sensor. The sensor is mounted externally on the housing and is secured with two Torx screws. The external body of the sensor has a six pin connector which accepts a connector on the vehicle wiring harness.

The sensor has a spigot which protrudes into the housing and provides the pivot point for the pedal mechanism. The spigot has a slot which allows for a pin, which is attached to the sensor potentiometers, to rotate through approximately 90°, which relates to pedal movement. The pedal is connected via a link to a drum, which engages with the sensor pin, changing the linear movement of the pedal into rotary movement of the drum. The drum has two steel cables attached to it. The cables are secured to two tension springs which are secured in the opposite end of the housing. The springs provide 'feel' on the pedal movement and require an effort from the driver similar to that of a cable controlled throttle. A detente mechanism is located at the forward end of the housing and is operated by a ball located on the drum. At near maximum throttle pedal movement, the ball contacts the detente mechanism. A spring in the mechanism is compressed and gives the driver the feeling of depressing a 'kickdown' switch when full pedal travel is achieved.

The APP sensor has two potentiometer tracks which each receive a 5V input voltage from the ECM. Track 1 provides an output of 0.5V with the pedal at rest and 2.0V at 100% full throttle. Track 2 provides an output of 0.5V with the pedal at rest and 4.5V at 100% full throttle. The signals from the two tracks are used by the ECM to determine fueling for engine operation and also by the ECM and the transmission control module (TCM) to initiate a kickdown request for the automatic transmission.

The ECM monitors the outputs from each of the potentiometer tracks and can determine the position, rate of change and direction of movement of the throttle pedal. The 'closed throttle' position signal is used by the ECM to initiate idle speed control and also overrun fuel cut-off.

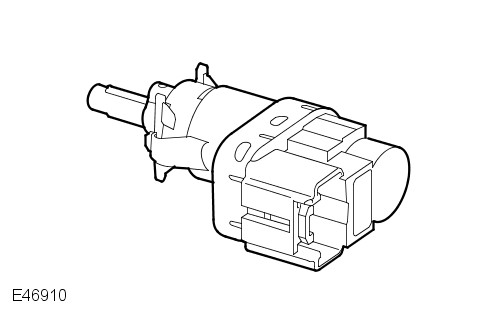

The brake switch is located on the brake pedal and is operated by the brake pedal. The switch has a normally open circuit switch which closes the circuit when the driver has applied the brakes. The switch is connected directly to the ECM and the ECM also receives a brake light signal on the CAN (controller area network) bus from the ABS (anti-lock brake system) control module. .

• To limit fueling during braking
• To inhibit/cancel speed control if the brakes are applied.

In the event of a brake switch failure, the following symptoms may be observed:

• Speed control inactive
• Increased fuel consumption.

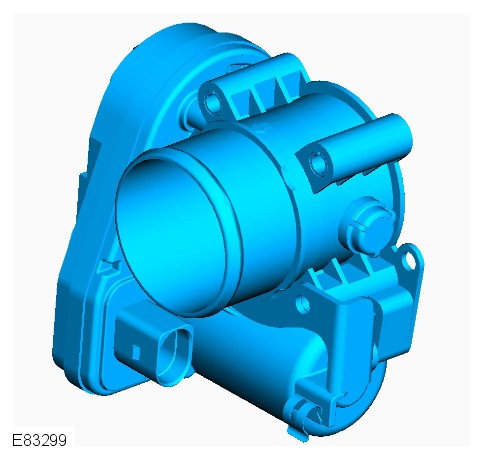

The electric throttle bodies are located in the intake tract prior to where the inlet splits to divert air flow into the two separate air intake manifolds. The electric throttles control the volume of air allowed into the inlet manifold by means of a direct current (DC) motor which controls a flap in the body of the throttle. This is done in response to inputs from the engine management system.

Vehicles from 2008MY are fitted with a Diesel Particulate Filter (DPF) which collects the particulate matter produced during the combustion process and reduces the particulates entering the atmosphere.

The DPF is located in the exhaust system, downstream of the catalytic converter. A major feature of the DPF is its ability for regeneration. Regeneration is the burning of particulates trapped by the filter to prevent obstruction to the free flow of exhaust gasses. The regeneration process is controlled by the ECM and takes place at calculated intervals and is not noticeable by the driver of the vehicle.

For details of the DPF and the regeneration processes refer to the relevant exhaust system section. For additional information, refer to: Exhaust System (309-00D Exhaust System - TDV8 3.6L Diesel, Description and Operation).

Regeneration is most important, since an overfilled filter can damage the engine through excessive exhaust back pressure and can itself be damaged or destroyed.

The exhaust gas and DPF temperatures are controlled by the DPF software located in the ECM. The DPF software monitors the load status of the DPF based on driving style, distance travelled and signals from a differential pressure sensor and temperature sensors located before and after the DPF in the exhaust system. When the particulate loading of the DPF reaches predetermined levels, the DPF is actively regenerated by adjusting, in conjunction with the ECM, various engine control functions such as:

• fuel injection
• intake air throttle
• EGR
• turbocharger boost pressure control.

The regeneration process is possible because of the flexibility of the common-rail fuel injection engine which provides precise control of fuel flow, fuel pressure and injection timing which are essential requirements to promote the efficient regeneration process.

The ECM contains the DPF software which controls and monitors the DPF and the regeneration process. The software is broken down into three separate modules; a DPF supervisor module, a DPF fuel management module and a DPF air management module, which interact with each other to provide precise DPF control.

These three modules are controlled by a fourth software module known as the DPF co-ordinator module. The co-ordinator module manages the operation of the other modules when an active regeneration is requested. The DPF supervisor module is a sub-system of the DPF co-ordinator module.

DPF Co-Ordinator Module

The DPF co-ordinator module reacts to a regeneration request from the supervisor module by initiating and controlling the following DPF regeneration requests:

• EGR cut-off
• Turbocharger boost pressure control
• Engine load increase
• Control of air pressure and temperature in the intake manifold
• Fuel injection control.

When the supervisor module issues a regeneration request, the co-ordinator module requests EGR cut-off and a regeneration specific turbocharger boost pressure control. It then waits for a feedback signal from the EGR system confirming that the EGR valve is closed.

When the EGR valve is closed, the co-ordinator module initiates requests to increase engine load by controlling the intake air temperature and pressure.

Once confirmation is received that intake conditions are controlled or a calibration time has expired, the co-ordinator module then changes to a state awaiting an accelerator pedal release manoeuvre from the driver. If this occurs or a calibration time has expired, the co-ordinator module generates a request to control fuel injections to increase exhaust gas temperature.

DPF Fuel Management Module

The DPF fuel management module controls the following functions:

• Timing and quantity of the four split injections per stroke (pilot, main and two post injections).
• Injection pressure and the transition between the three different calibration levels of injection.

The above functions are dependant on the condition of the catalytic converter and the DPF.

The controlled injection determines the required injection level in addition to measuring the activity of the catalytic converter and the DPF. The fuel management calculates the quantity and timing for the four split injections, for each of the three calibration levels for injection pressure, and also manages the transition between the levels.

The two post injections are required to separate the functionality of increasing in-cylinder gas temperatures and the production of hydrocarbons. The first post injection is used to generate the higher in-cylinder gas temperature while simultaneously retaining the same engine torque output produced during normal (non-regeneration) engine operation. The second post injection is used to generate hydrocarbons by allowing unburnt fuel into the catalytic converter without producing increased engine torque.

DPF Air Management Module

The DPF air management module controls the following functions:

• EGR control
• Turbocharger boost pressure control
• Intake air temperature and pressure control.

During active regeneration, the EGR operation is disabled and the closed-loop activation of the turbocharger boost controller is calculated. The air management module controls the air in the intake manifold to a predetermined level of pressure and temperature. This control is required to achieve the correct in-cylinder conditions for stable and robust combustion of the post injected fuel.

Restricting the air intake during DPF regeneration has the following functions:

• Increase in engine load
• Slower combustion
• Reduction in the mass of air taken in
• A reduction in the speed of the exhaust gases and therefore an increase in the time for which the gases are in the catalytic converter.

The module controls the intake air temperature by actuating the EGR throttle and by adjustment of the turbocharger boost pressure control.

DPF Temperature Sensors

Five temperature sensors are used in the DPF system. One is located in each of the turbocharger outlet elbows, another sensor is located after each catalytic converter and the one sensor is located after the DPF.

The sensors measure the temperature of exhaust gas exiting the turbocharger, before it passes through the DPF and after it has passed through the DPF and provides the information required by the ECM to calculate the DPF temperature. The information is used, in conjunction with other data, to estimate the amount of accumulated particulate and to control the DPF temperature.

The sensors are Negative Temperature Co-efficient (NTC) type resistors, which measure the temperature of the exhaust gases. The resistance, and subsequently the voltage at the sensor will decrease as the exhaust gas temperature increases.

In the event of a fault in a temperature sensor, the ECM uses a substitute value of 350°C (1202°F).

Differential Pressure Sensor

The differential pressure sensor is located on the rear of the transfer box, adjacent to the DPF.

The differential pressure sensor is used by the DPF software to monitor the condition of the DPF. Two pipe connections on the sensor are connected by pipes to the inlet and outlet ends of the DPF. The pipes allow the sensor to measure the inlet and outlet pressures of the DPF.

As the amount of particulates trapped by the DPF increases, the pressure at the inlet side of the DPF increases in comparison to the DPF outlet. The DPF software uses this comparison, in conduction with other data, to calculate the accumulated amount of trapped particulates.

By measuring the pressure difference between the DPF inlet and outlet air flow and the DPF temperature, the DPF software can determine if the DPF is becoming blocked and requires regeneration.

A DPF is recognized as overloaded if the differential pressure under certain operating conditions exceeds the overload limit calculated by the ECM. The DPF software may start regeneration attempts but be unable to complete them. These attempts are counted by the ECM and, if the maximum number of regeneration attempts is reached, a fault entry is recorded in the ECM at the next ignition on cycle.

The DPF software performs the following checks using the DPF differential pressure sensor:

• Plausibility check
• Diesel particulate filter efficiency
• Diesel particulate filter overloaded
• Diesel particulate filter clogged
• Monitoring of the maximum regeneration attempts in the lower load range.

Terrain Response system allows the driver to select a program which will provide the optimum settings for traction and performance for prevailing terrain conditions.

As part of Terrain Response there are be different throttle pedal progression maps associated with different Terrain Response modes. The two extremes are likely to be a sand map (quick build up of torque with pedal travel) and grass/gravel/snow (very cautious build up of torque).

The TdV8 implementation of throttle progression is based on a fixed blend time. The torque will blend from that on one map to that on the new map (for the same pedal position) over a fixed time. This means blending will always take the same amount of time but when the torque change is small the torque increase over time will be small, whilst if the torque change is greater then the torque increase over time will be steeper. The resulting acceleration of the vehicle will depend on the torque difference between the two maps as well as on the gear and range selected. The worst case blending that could ever occur has been calibrated to match the blend rate for petrol derivatives as closely as possible, so as to give a transparent behavior to customers.

The EMS has 4 knock sensors (2 per bank) located in the cylinder head of the inboard side of the 'V' of the engine. The sensors are connected to the ECM via a twisted pair of wires to minimize electrical interference.

The knock sensors produce a voltage signal in proportion to the amount of mechanical vibration generated at each ignition point. Each sensor monitors the related cylinder bank.

The knock sensors incorporate a piezo-ceramic crystal. This crystal produces a voltage whenever an outside force tries to deflect it, (i.e. exerts a mechanical load on it). When the engine is running, the compression waves in the material of the cylinder block, caused by the combustion of the fuel/air mixture within the cylinders, deflect the crystal and produce an output voltage signal. The signals are supplied to the ECM, which compares them with `mapped' signals stored in memory. From this, the ECM can determine when detonation occurs on individual cylinders. When detonation is detected, the ECM can adjust the pilot fuel quantity to reduce combustion noise, compensating for fuel quantity variations due to injector wear.

Care must be taken at all times to avoid damaging the knock sensors, but particularly during removal and fitting procedures. The recommendations regarding torque and surface preparation must be adhered to. The torque applied to the sensor and the quality of the surface preparation both have an influence over the transfer of mechanical noise from the cylinder block to the crystal.

The generator has a multifunction voltage regulator for use in a 14V charging system with 6÷12 zener diode bridge rectifiers.

The ECM monitors the load on the electrical system via PWM signal and adjusts the generator output to match the required load. The ECM also monitors the battery temperature to determine the generator regulator set point. This characteristic is necessary to protect the battery; at low temperatures battery charge acceptance is very poor so the voltage needs to be high to maximize any recharge ability, but at high temperatures the charge voltage must be restricted to prevent excessive gassing of the battery with consequent water loss.For additional information, refer to: Generator (414-02D Generator and Regulator - TDV8 3.6L Diesel, Description and Operation).

The generator has a smart charge capability that will reduce the electrical load on the generator reducing torque requirements, this is implemented to utilize the engine torque for other purposes. This is achieved by monitoring three signals to the ECM:

• Generator sense (A sense), measures the battery voltage at the CJB.
• Generator communication (Alt Com) communicates desired generator voltage set point from ECM to generator.
• Generator monitor (Alt Mon) communicates the extent of generator current draw to ECM. This signal also transmits faults to the ECM which will then sends a message to the instrument cluster on the CAN bus to illuminate the charge warning lamp.

The water in fuel sensor is located in the base of the fuel filter and is hardwired to the ECM. The sensor operates on the principle of differing resistance values to the transmission of current through water and fuel. When the volume of water in the fuel reaches 85 cm³ or more, the sensor value is sensed by the ECM. The ECM transmits a message on the high speed controller area network (CAN) bus to the instrument cluster which displays a message 'WATER IN FUEL VISIT DEALER' in the message center.

The CJB initiates the power up and power down routines within the ECM. When the ignition is turned on, 12V is applied to the 'Ignition Sense' input. The ECM then starts its power up routines and turns on the ECM main relay; the main power to the ECM and it's associated system components. When the ignition is turned OFF the ECM will maintain its powered up state for up to 60 seconds while it initiates its power down routine and on completion will turn off the ECM main relay.
