Published: 11-May-2011

2007.0 Range Rover Sport (LS), 204-04

Wheels and Tires

Tire Pressure Monitoring System Module (G899395)

REMOVAL AND INSTALLATION
  • 86.54.05
  • Control unit (ECU) - tire pressure monitoring - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. E53164
    Remove the overhead console.

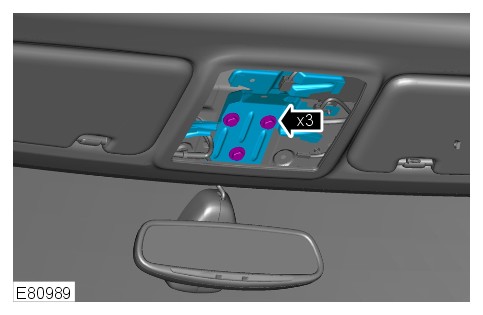

  2. E80989
    Remove the tire pressure monitoring module and bracket assembly.

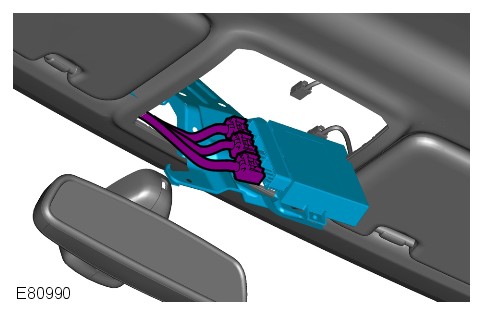

  3. E80990
    Disconnect the electrical connectors.
  4. NOTE:

    Do not disassemble further if the component is removed for access only.

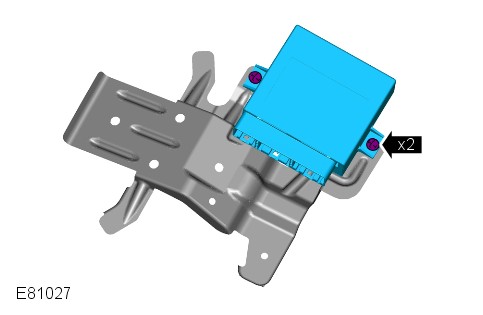

    E81027
    Remove the tire pressure monitoring module.
Installation
  1. Install the tire pressure monitoring module.
  2. Install the tire pressure monitoring module and bracket assembly.
      • Install and tighten the bolts to 25 Nm (18 lb.ft).
  3. Install the overhead console.
