Published: 11-May-2011

2007.0 Range Rover Sport (LS), 303-00

Engine System - General Information

Piston Ring-to-Groove Clearance (G61249)

GENERAL PROCEDURES
  1. NOTE:

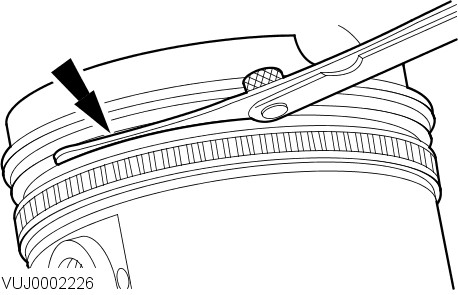

    The piston ring must protrude from the piston groove. To determine the piston ring clearance, insert the Feeler Gauge right to the back of the groove, behind the wear ridge.

    J0002226
    Using the Feeler Gauge, measure the piston ring clearance.
