Published: 11-May-2011

2007.0 Range Rover Sport (LS), 419-07

Navigation System

Navigation System Display Module (G561683)

REMOVAL AND INSTALLATION
  • 86.53.20
  • Display unit - navigation system - renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal
  1. CAUTION:

    After switching of the ignition, wait for 2 minutes before disconnecting the battery. Failure to wait for 2 minutes will damage the navigation computer.

    Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

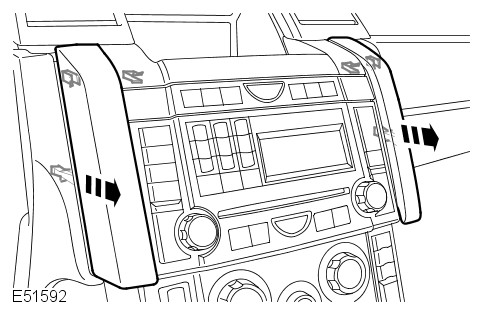

  2. E51592
    Remove the audio unit side trim panels.
      • Release the 6 clips.

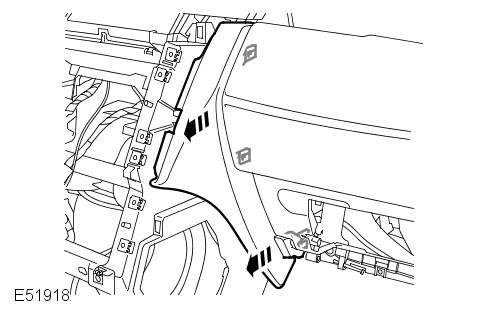

  3. E51918
    Remove the instrument panel center reinforcement trim panel.
      • Release the 3 clips.
      • Repeat the above procedure for the other side.

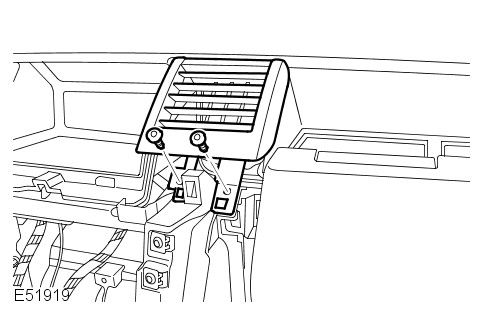

  4. E51919
    Remove the center face level vent.
      • Remove the 2 Torx screws.
      • Repeat the above procedure for the other side.
  5. CAUTION:

    Cover fibre optic cable connectors to minimise dust ingress and avoid bending the cables in a radius of less than 30 mm.

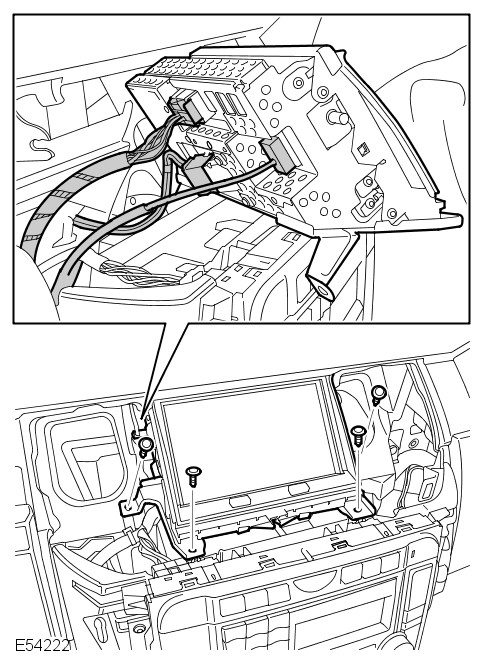

    E54222
    Remove the navigation system display module.
      • Remove the 4 screws.
      • Disconnect the fibre optic connector.
      • Disconnect the 2 electrical connectors.
Installation
  1. Install the navigation system display module.
      • Connect the electrical connectors.
      • Connect the fibre optic connector.
      • Tighten the screws.
  2. Install the center face level vents.
      • Tighten the Torx screws.
  3. Install the instrument panel center reinforcement trim panels.
      • Secure the clips.
  4. Install the audio unit side trim panels.
      • Secure the clips.
  5. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
