Published: 11-May-2011

2007.0 Range Rover Sport (LS), 206-06

Hydraulic Brake Actuation

Brake Fluid Reservoir (G528689)

REMOVAL AND INSTALLATION
  • 70.25.31
  • Reservoir - brake fluid - renew
  • Without Brembo
  • 0.40
  • USED WITHINS
Removal
CAUTION:

Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

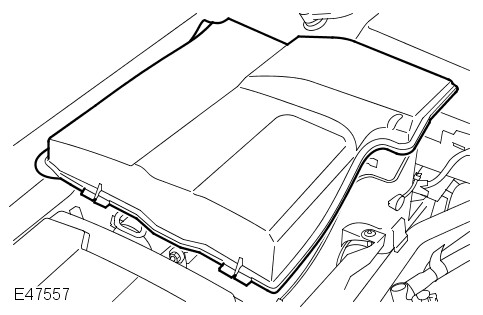

  1. E47557
    Remove the cover.
  2. Position an absorbent cloth to collect fluid spillage.
  3. Disconnect the low brake fluid warning indicator switch electrical connector.
  4. CAUTION:

    Always plug any open connections to prevent contamination.

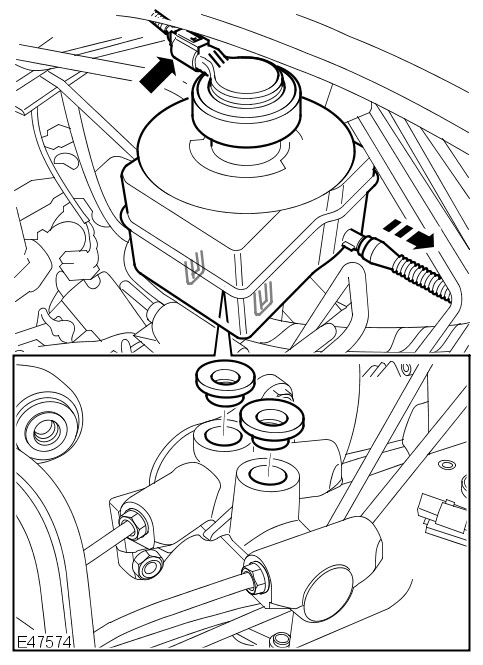

    E47574
    Remove the brake fluid reservoir.
      • Release the 2 clips.
      • Remove and discard 2 brake fluid reservoir seals.
Installation
  1. Clean the components.
  2. Install the brake fluid reservoir.
      • Install new brake fluid reservoir seals.
  3. Connect the low brake fluid warning indicator switch electrical connector.
  4. Bleed the brake system using T4. For additional information, refer to: Brake System Bleeding - Vehicles With: Standard Brakes (206-00 Brake System - General Information, General Procedures) / Brake System Bleeding - Vehicles With: High Performance Brakes (206-00 Brake System - General Information, General Procedures).
