Published: 11-May-2011

2007.0 Range Rover Sport (LS), 204-06

Ride and Handling Optimization

Lower Accelerometer (G458141)

REMOVAL AND INSTALLATION
  • 60.60.03
  • Accelerometer - active cornering enhancement (ACE) - lower - renew
  • All Derivatives
  • 0.20
  • USED WITHINS

Special Tool(s)

E53225

204-505 (LRT-60-014A)

Accelerometer remover/replacer

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  2. WARNING:

    Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.
  3. CAUTION:

    The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.

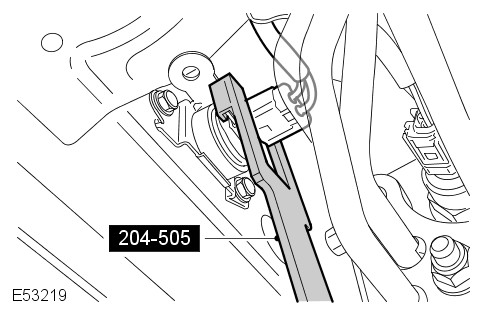

    E53219
    Remove the lower accelerometer.
      • Using the special tool , release the accelerometer.
      • Release and disconnect the electrical connector.
Installation
  1. Using the special tool, install the lower accelerometer.
      • Connect and secure the electrical connector.
  2. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  3. Using T4, calibrate the dynamic response system.
