2007.0 Range Rover Sport (LS), 204-06

Ride and Handling Optimization

Upper Accelerometer (G458140)

REMOVAL AND INSTALLATION
  • 60.60.02
  • Accelerometer - active cornering enhancement (ACE) - upper - renew
  • All Derivatives
  • 0.10
  • USED WITHINS

Special Tool(s)

E53225

204-505 (LRT-60-014A)

Accelerometer remover/replacer

Removal
  1. Disconnect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).

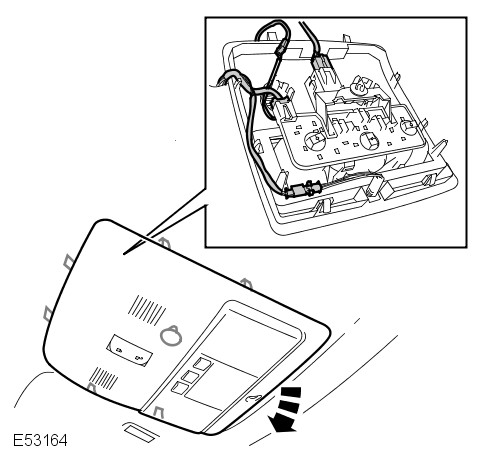

  2. E53164
    Remove the front overhead console.
      • Carefully release the 9 clips.
      • Disconnect the 2 electrical connectors.
  3. CAUTION:

    The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.

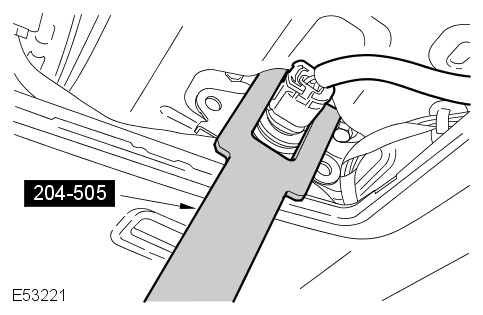

    E53221
    Remove the upper accelerometer.
      • Using the special tool, release the accelerometer.
      • Release and disconnect the electrical connector.
Installation
  1. Using the special tool, install the upper accelerometer.
      • Connect and secure the electrical connector.
  2. Install the front overhead console.
      • Connect and secure the electrical connectors.
      • Carefully secure the clips.
  3. Connect the battery ground cable. For additional information, refer to: Specifications (414-00 Battery and Charging System - General Information, Specifications).
  4. Using T4, calibrate the dynamic response system.
