2007.0 Range Rover Sport (LS), 204-01

Front Suspension

Upper Arm Ball Joint (G455260)

REMOVAL AND INSTALLATION
  • 60.15.02
  • Ball joint - upper - renew
  • All Derivatives
  • 1.20
  • USED WITHINS

Special Tool(s)

E50157

204-530-3

Ball joint remover/installer

E50156

204-530-2

Ball joint remover/installer

E50155

204-530-1

Ball joint remover/installer

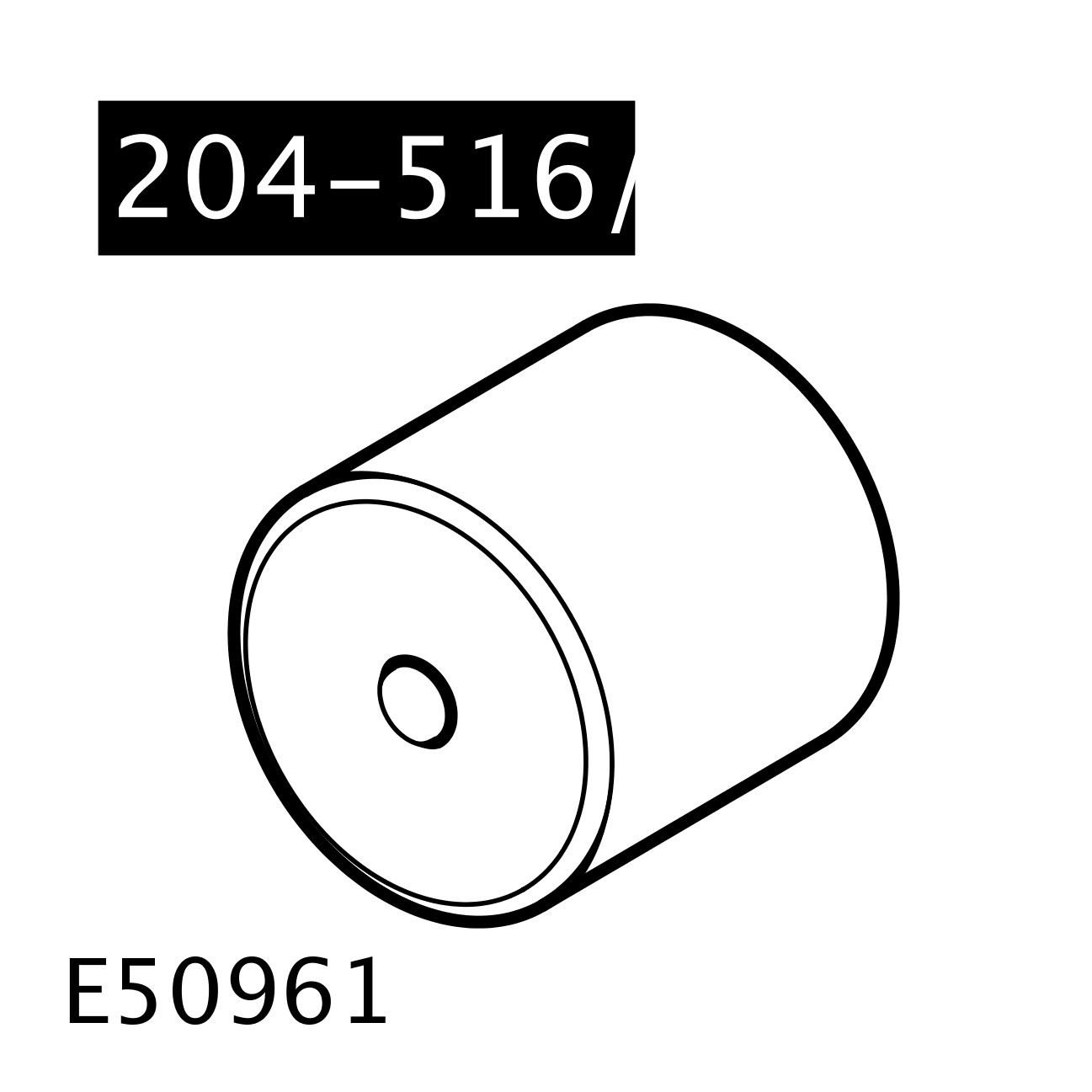

E50961

204-516/3 (LRT-64-026/3)

Ball joint remover/installer

Removal
  1. Remove the upper arm. For additional information, refer to: Upper Arm (204-01 Front Suspension, Removal and Installation).
  2. Remove the dust seal.
      • Remove the seal retainer.
      • Remove the circlip.

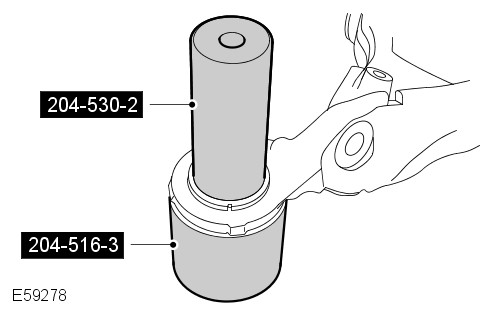

  3. E59278
    Using the special tools, remove the ball joint.
Installation
  1. CAUTION:

    Make sure the timing marks are aligned.

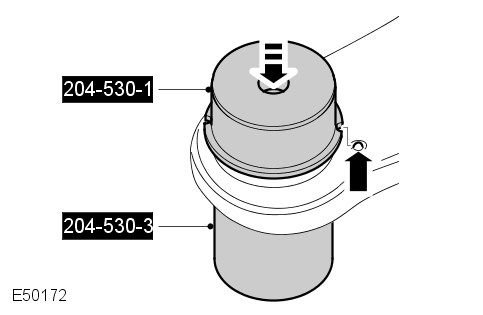

    E50172
    Using the special tools, install the ball joint.
  2. CAUTION:

    Circlip holes to be 90 degrees rotated from timing marks.

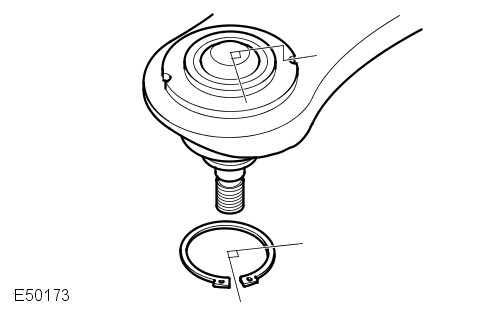

    E50173
    Install the circlip.
  3. Install the upper arm. For additional information, refer to: Upper Arm (204-01 Front Suspension, Removal and Installation).
