2007.0 Range Rover Sport (LS), 501-05

Interior Trim and Ornamentation

Rear Door Trim Panel (G455188)

REMOVAL AND INSTALLATION
  • 76.34.04
  • Rear Door Trim Panel - Renew
  • All Derivatives
  • 0.30
  • USED WITHINS
Removal

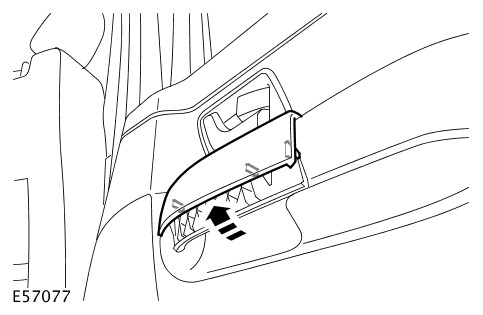

  1. E57077
    Starting at the lower edge, carefully remove the grab handle cover.
      • Release the 3 clips.

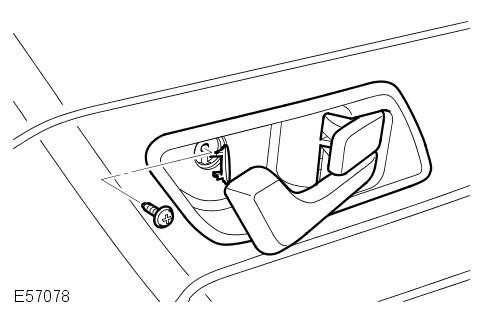

  2. E57078
    Remove the screw securing the door latch remote release.
      • Release the screw cover.

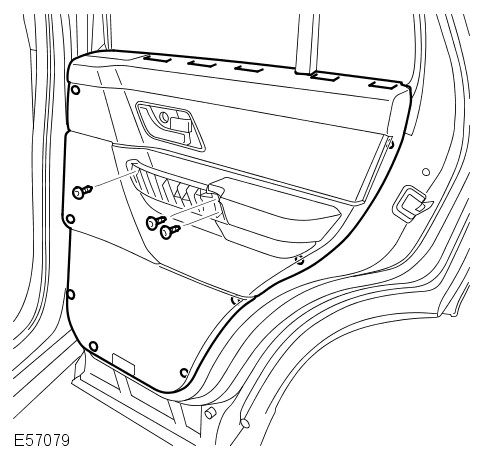

  3. E57079
    Release the rear door trim panel.
      • Remove the 3 screws.
      • Release the 13 clips.
  4. E43314
    Disconnect the door latch remote release cable.

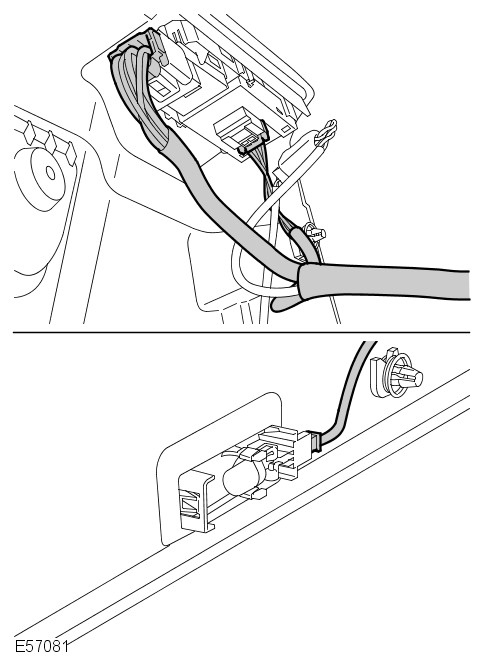

  5. E57081
    Remove the rear door trim panel.
      • Disconnect the 3 electrical connectors.
  6. NOTE:

    Do not disassemble further if the component is removed for access only.

    E57069
    Remove the puddle lamp.
      • Carefully release the lamp.
  7. E57084
    Remove the window control switch.
      • Carefully release the 4 clips.

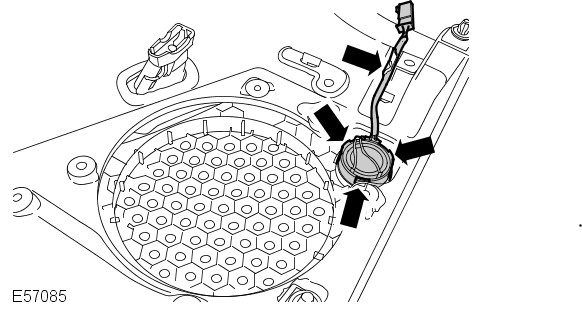

  8. E57085
    Remove the tweeter.
      • Release the wiring harness.
      • Release the 3 clips.

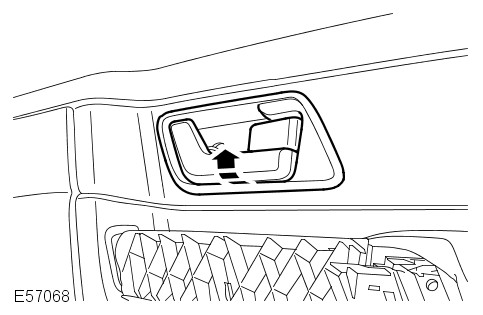

  9. E57068
    Remove the rear door latch remote control handle.
      • Starting at the lower edge, carefully release the remote handle.
  10. Remove the trim panel finisher.

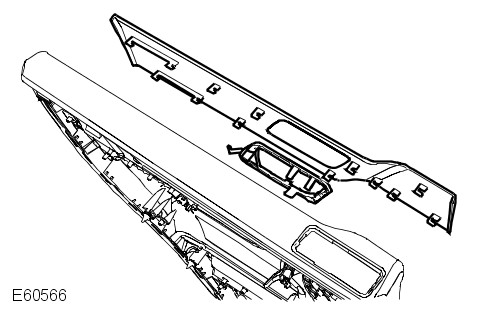

  11. E60566
    Remove the door latch remote control handle retainer.

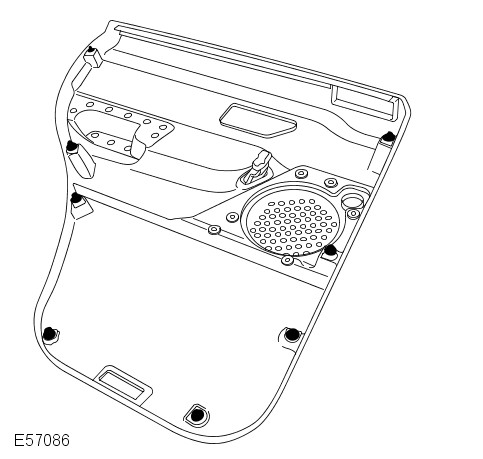

  12. E57086
    Remove the 8 clips.
Installation
  1. Install the clips.
  2. Install the door latch remote control handle retainer.
  3. Install the trim panel finisher.
  4. Install the rear door latch remote control handle.
  5. Install the tweeter.
      • Secure the wiring harness.
  6. Install the window control switch.
      • Secure with the clips.
  7. Install the puddle lamp.
  8. Install the rear door trim panel.
      • Connect the electrical connectors.
      • Connect the door latch remote control cable.
      • Secure with the clips.
      • Tighten the screws.
  9. Install the screw securing the door latch remote release.
      • Secure the screw cover.
  10. Install the grab handle cover.
