Published: 11-May-2011

2007.0 Range Rover Sport (LS), 417-01

Exterior Lighting

Rear Lamp Assembly (G453171)

REMOVAL AND INSTALLATION
  • 86.40.70
  • Rear Quarter Panel Lamp Assembly - Renew
  • All Derivatives
  • 0.20
  • USED WITHINS
Removal
  1. Open the liftgate.
  2. Release the rear lamp assembly.
      • Remove the 2 screws.
      • Release the 2 clips.

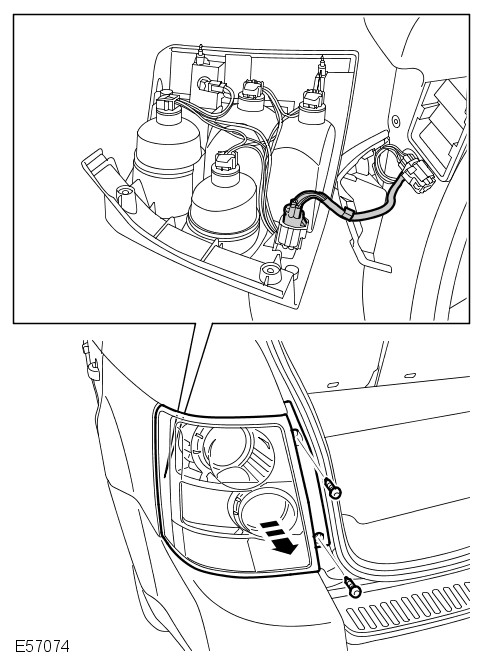

  3. E57074
    Remove the rear lamp assembly.
      • Disconnect the electrical connector.
  4. NOTES:

    • Do not disassemble further if the component is removed for access only.

    • Note the fitted position.

    Remove the wiring harness.
      • Release the 5 bulb holders.
      • Release the electrical connector.

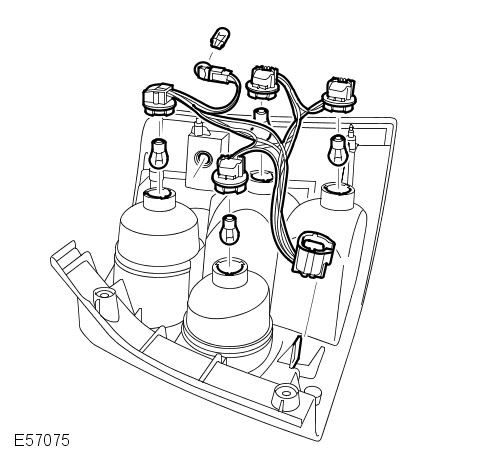

  5. E57075
    Remove the 5 bulbs.
Installation
  1. Install the bulbs.
  2. Install the wiring harness.
      • Install the bulb holders.
      • Install the electrical connector.
  3. Install the rear lamp assembly.
      • Connect and secure the electrical connector.
      • Secure the clips.
      • Tighten the screws.
  4. Close the liftgate.
