Published: 11-May-2011

2007.0 Range Rover Sport (LS), 501-14

Handles, Locks, Latches and Entry Systems

Front Door Latch (G452317)

REMOVAL AND INSTALLATION
  • 76.37.06
  • Front Door Latch - Renew
  • All Derivatives
  • 1.20
  • USED WITHINS
Removal
  1. Remove the window motor and regulator assembly. For additional information, refer to: Front Door Window Regulator and Motor (501-11, Removal and Installation).
  2. Remove the front door exterior handle. For additional information, refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

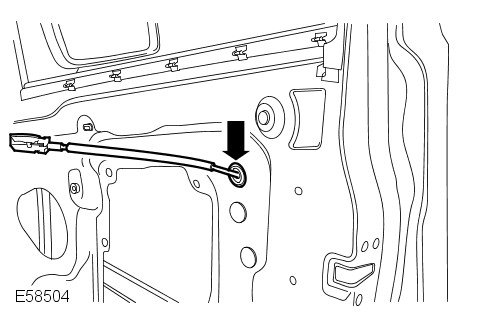

  3. E58504
    Release the remote control cable.
      • Release the grommet.

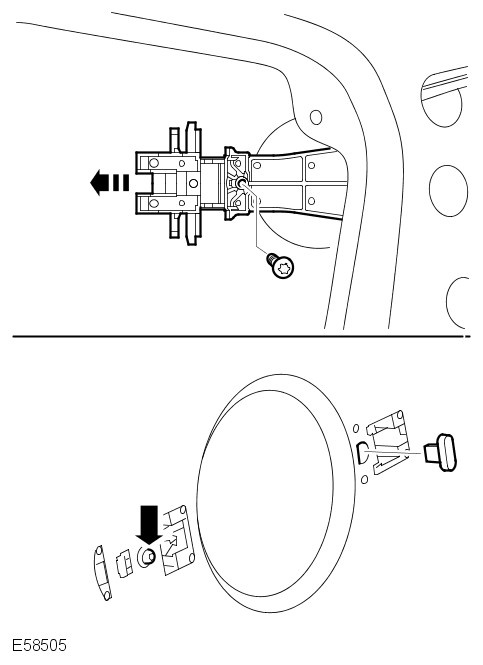

  4. E58505
    Release the door exterior handle mechanism.
      • Remove the 2 Torx screws.
      • Remove the locking pin.

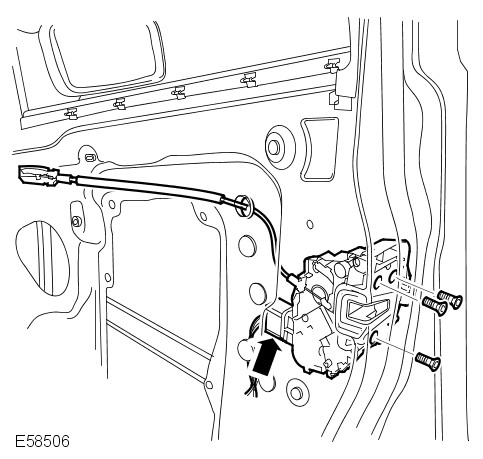

  5. E58506
    Remove the front door latch assembly.
      • Disconnect the electrical connector.
      • Remove the 3 Torx screws.
  6. NOTE:

    Do not disassemble further if the component is removed for access only.

    E45778
    Remove the door latch remote control cable.
      • Release the cable from the abutment bracket.
      • Remove the cable from the lever.
  7. Release the exterior door handle mechanism cable from the door latch.
      • Release the cable from the abutment bracket.
      • Remove the cable from the lever.

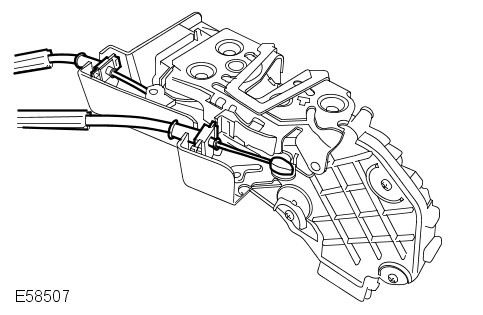

  8. E58507
    LH side: Release the door lock cylinder cable from the door latch.
      • Release the cable from the abutment bracket.
      • Remove the cable from the lever.
Installation
  1. LH side: Connect the door lock cylinder cable to the door latch.
      • Connect the cable to the lever.
      • Secure the cable to the abutment bracket.
  2. Connect the door exterior handle mechanism cable to the door latch.
      • Connect the cable to the lever.
      • Secure the cable to the abutment bracket.
  3. Install the remote control cable to the door latch.
      • Connect the cable to the lever.
      • Secure the cable to the abutment bracket.
  4. E45781
    Set the exterior handle mechanism.
      • Rotate the lever.
      • Engage the retaining tang.
  5. Install the front door latch assembly.
      • Tighten the Torx screws to 10 Nm (7 lb.ft).
      • Connect the electrical connector.
  6. Install the door exterior handle mechanism.
      • Position the mechanism to the door.
      • Fit the locking pin.
      • Fit and tighten the Torx screws.
  7. LH side: Position the control cables into the retainers.
  8. Position the remote control cable to the door.
      • Install the grommet.
  9. Install the front door exterior handle. For additional information, refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
  10. Install the window motor and regulator assembly. For additional information, refer to: Front Door Window Regulator and Motor (501-11, Removal and Installation).
